English

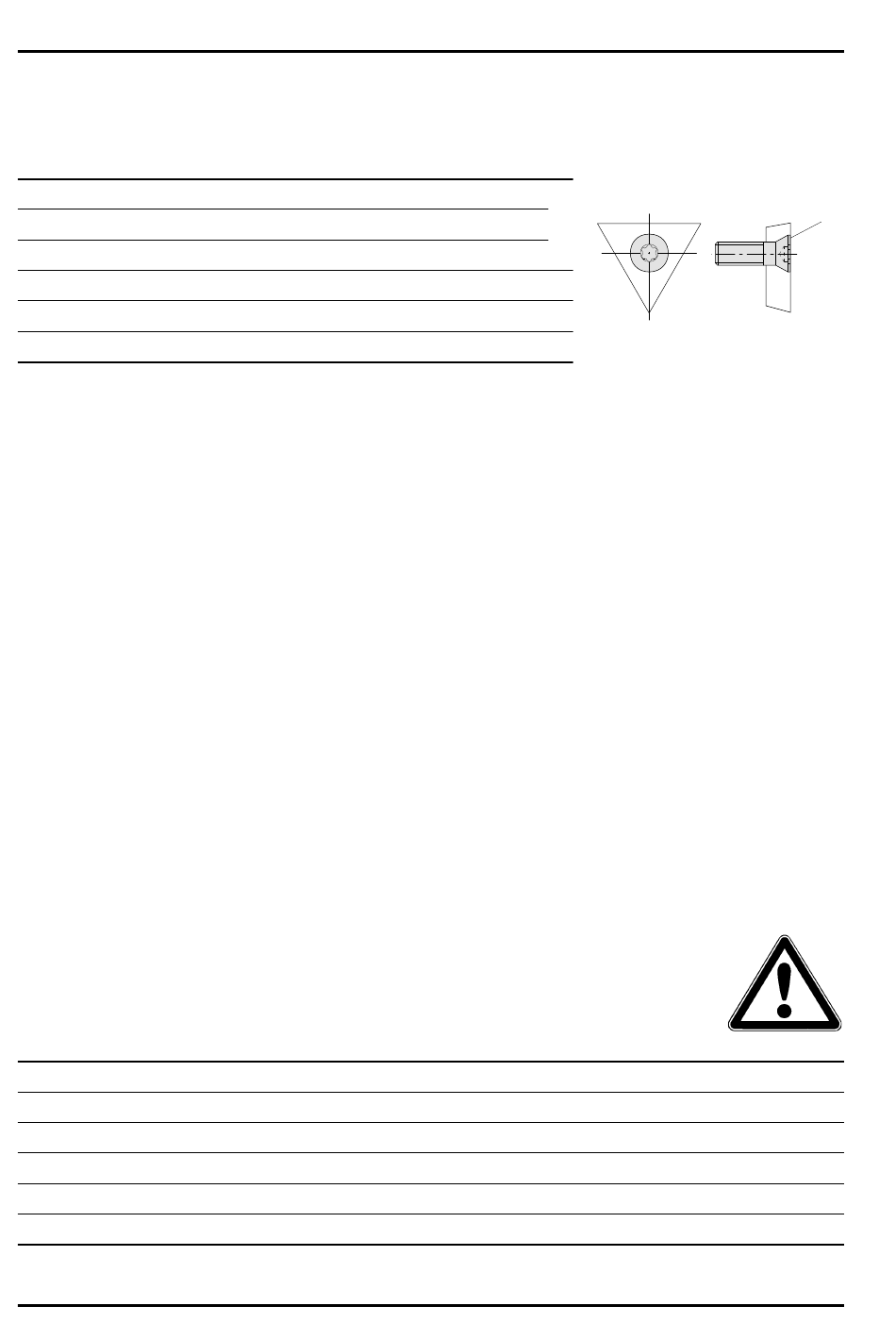

Clamping screws for replaceable inserts
Replaceable Countersunk screw ① Torx key
inserts form Order No.
115535
20
115676
21
101 115676
115672
103
415277
145
161 115676

8. Technical data

• Internal coolant feed up to the cutting edge. Max. permissible pressure 40 bar.
• MMS compatible
• Working temperature: + 10°C to + 40°C.
• Storage temperature: – 10°C to + 65°C.
• Display resolution: 0.002 mm in diameter.
• The integrated electronics comply with protection class IP 65
Max. permissible speed:
• The indicated speeds are designed for a symme-
trical tool setup. Asymmetric setups reduce the
values by 50%.
• Short projecting lengths reduce concentricity
errors and imbalance. This increases the service
life of the spindle and improves safety.
• Suitable protective measures or machine hou-
sings must be available to protect against ejected
particles or a broken cutting edge.
Boring range
Ø mm (Ø inch)
50,0 – 65,5 (1.968 – 2.579)
65,0 – 83,0 (2.559 – 3.268)
82,0 – 103,0 (3.228 – 4.055)
100,0 – 130,0 (3.937 – 5.118)
125,0 – 167,5 (4.921 – 6.594)
162,5 – 205,0 (6.398 – 8.071)
14
(torque)
T 7 / H (0,9 Nm / 7.97 in. lbs.)
T 8 / H (1,2 Nm / 10.62 in. lbs.)
T 8 / H (1,2 Nm / 10.62 in. lbs.)
T 15 / H (3,0 Nm / 26.55 in. lbs.)
T 7 / H (0,9 Nm / 7.97 in. lbs.)
T 8 / H (1,2 Nm / 10.62 in. lbs.)
• The necessary mounting and clamping screws
must be checked for the correct torque before
commencing work.
• The required balance quality of the machine
manufacturer must be complied with!
In principle, max. permissible speeds involve
a risk due to the centrifugal energies involved.
It is therefore essential to take the safety
aspects into account.
Precision boring tool
Order No.
564034 (565034)
564045 (565045)
564046 (565046)
564047 (565047)
564048 (565048)
564049 (565049)
Max. perm.
speed in min (rpm)
-1
13,000
10,000
5,000
4,000
3,000
2,500
①
