GB
► Assembly – p. 5
6 7
2

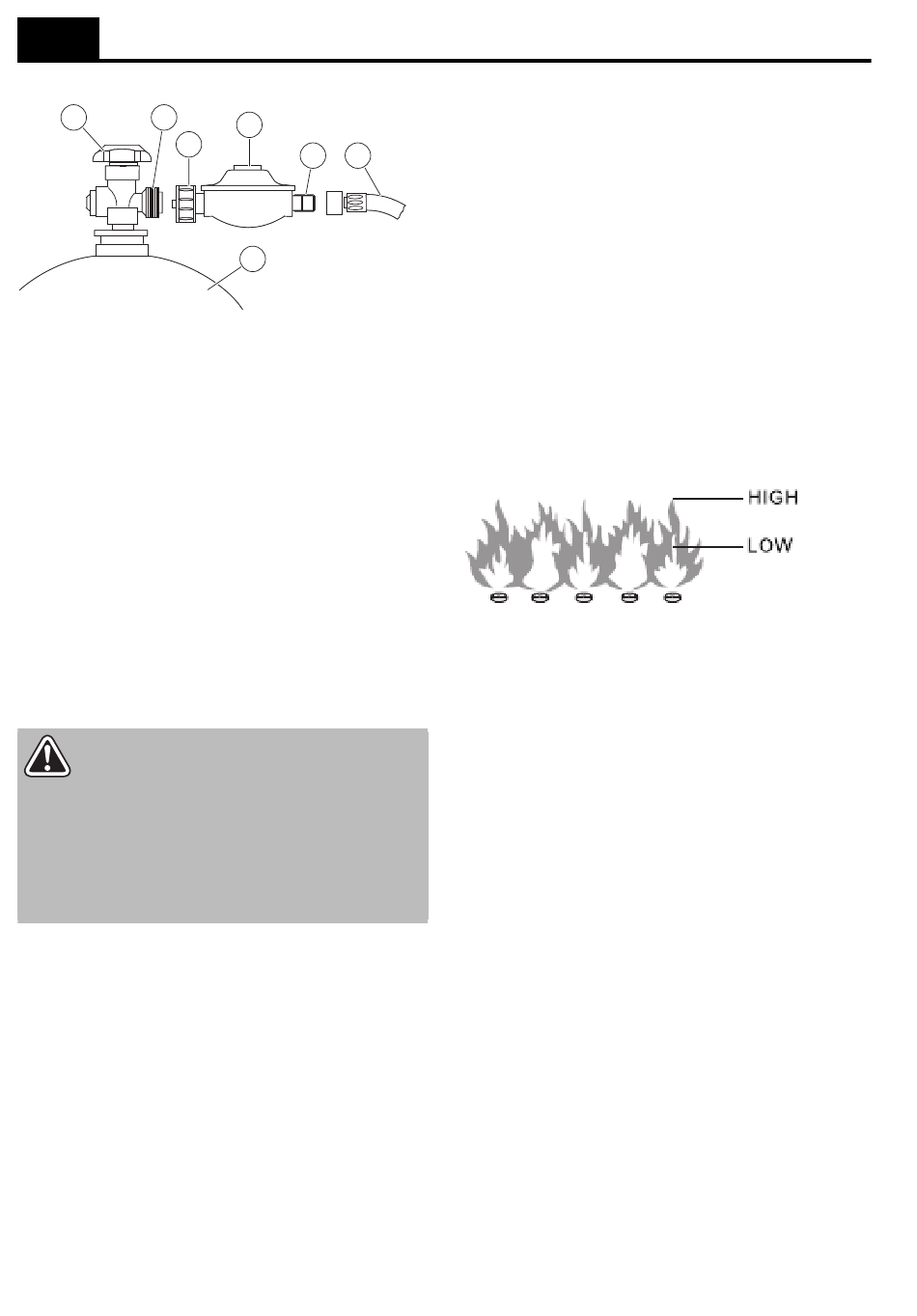

Connecting the gas tank
– Turn all rotating regulators on the gas fireplace
to [OFF].
– Check whether the gas tank valve (6) is closed.
– Undo the safety cap from the tank connection
thread (7).
– Check all seals for damages; Do not install addi-
tional seals.
– Screw the coupling nut (2) of the pressure regula-
tor (3) by hand, in an anti-clockwise direction,
onto the tank connection thread (left thread).
Checking the seals
– Brush soap solution onto the coupling nut (2) and
connection thread (4) of the hose (5) and exam-
ine for bubble formation.
– Open the gas tank valve (6).
The connections are sealed correctly if no bubbles
form.
– In the event of a leaky connection element, imme-
diately close the gas tank valve (6) and replace
the leaky connection element.
DANGER! Explosion hazard! Carrying out
a check of the seals using naked flames is
strictly forbidden!
Comply with all safety instructions when
handling gas!
When checking for leaks, ensure that there
are no sources of ignition in the vicinity. Do
not smoke!
Porous or damaged hoses and fittings must
be replaced.

Operation

Check before use!
Check to make sure the device is in a safe operating
condition:
– Check to make sure there are no visible defects.
– Check to make sure all device components are
correctly mounted.
– Check all gas connections for leaks.
– Check that all regulators are set to OFF.
Lighting Instructions
► P. 13, item 2
1. Check the control knob is in the [OFF] position.
2. Turn on the LP tank valve slowly.
34
3
4 5
1
3. Press and hold the [IGNITOR] button to create
sparks and then push control knob in and rotate
to [PUSH]. Once burner is lit, continue to hold the
control knob for 30 seconds. Then the burner
should stay lit.
4. If the burner fails to stay lit or becomes extin-
guished in 30 seconds, turn the control knob
to [OFF], wait 5 minutes for gas to clear and then
repeat step 3.
5. To desired heating level rotate knob from [LOW]
to [HIGH].
For complete shutdown
1. Turn the knob to [PUSH] first, then push in and
turn to [OFF].
2. Turn off the gas tank valve before disconnecting
the LP gas tank. If you experience any ignition
problem, turn off the gas fireplace and gas supply,
and consult ► Troubleshooting – p. 35.
Note:
Visually check the burner flame against the illustra-
tions below:
Flame should be blue with slight yellow tips.
You should see a smaller flame in [LOW] position
than seen on [HIGH]. Perform flame check prior to
each use. If only low flame is seen, refer to "Burner
flame is low" in the ► Troubleshooting – p. 35.
Warning: Do not throw rubbish on the fireplace, oth-
erwise it may result in disturbing the fuel bed.

Suitable gas tanks

There are many different sizes of tank.
The figure shows the maximum tank size.
• Capacity of gas tank: Maximum 11 kg
• Height of gas tank: Maximum 600 mm
• Diameter of gas tank: Maximum 300 mm
Location of gas tank
Place the gas cylinder on a flat and level floor near
the device.
Ensure that the gas hose is not bent.
The gas hose may be a maximum of 1500 mm in
length.

The hose and the pressure regulator

• Must be suitable for liquid petroleum gas
• Must be able to withstand the pressure listed
above
• The hose may not be longer than 1500 mm.
• The scope of delivery of the gas fireplace contains
a single adapter designed to make a direction
connection between the hose/pressure regulator
and the gas fireplace.
• Before connecting the hose, check the connect-
ing element and the rubber rings. The hose must
be replaced if there are signs of fissures, cracks
or wear.
