Tru-Turf RE50 Benutzerhandbuch Seite 46

Options - Slicer
RS2067 SLICER OPTION ASSY COMPLETE R50 - PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 2 RS2009 PLATE, ADAPTOR, OPTIONS CARRIAGE
2 1 RS2041 SHAFT & COLLAR WELDED ASSY, SPIKER HUB
3 14 RS2114 SPACER, 28 ID, SLICER SHAFT
4 16 RS2116 BLADE, SLICER, 25 ID, 8 POINT
5 2 SR7208 WASHER, FLAT, ZP - 1"
7 1 R5065 SPRING, SPACER, SLICER/SPIKER (DEFORMED 55.8 mm)
8 2 R5266 BEARING, UCP204, PILLOW BLOCK ASSY
9 4 R8048 WASHER, FLAT, ZP - 3/8" ID x 3/4" OD
10 4 R8055 NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
11 4 R8070 BOLT, HEX, ZP 3/8" UNF x 1.5" LG
12 1 R8314 NUT, HEX, NYLOC, SS, M6
13 1 R8436 BOLT, HEX HEAD, 304SS - M6 x 45 LG
14 1 R8487 COLLAR, LOCKING, SHAFT, SPIKER HUB
SLICER ASSY COMPLETE R50
2
3
4
7
RE50 Benutzerhandbuch
4
3
4
3
4
5
7
8
9
10
11
12
13
14
10
9
8
1
11
5
10
9
8
1
11

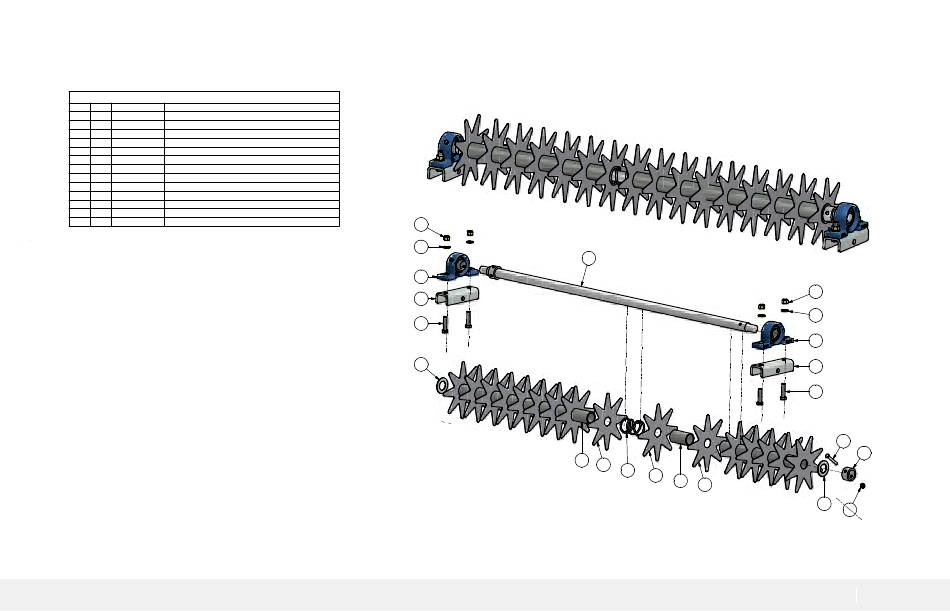

RS2067 SLICER OPTION ASSY COMPLETE R50 EXPLODED VIEW
13
14
14 RS2114 SPACER, 28 ID, SLICER SHAFT
16 RS2116 BLADE, SLICER, 25 ID, 8 POINT
2 SR7208
WASHER, FLAT, ZP - 1"
1 R5065 SPRING, SPACER, SLICER/SPIKER (DEFORMED 55.8 mm)
2 R5266 BEARING, UCP204, PILLOW BLOCK ASSY
4 R8048 WASHER, FLAT, ZP - 3/8" ID x 3/4" OD
4 R8055 NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
4 R8070 BOLT, HEX, ZP 3/8" UNF x 1.5" LG
1 R8314 NUT, HEX, NYLOC, SS, M6
1 R8436 BOLT, HEX HEAD, 304SS - M6 x 45 LG
1 R8487 COLLAR, LOCKING, SHAFT, SPIKER HUB
SLICER ASSY COMPLETE R50
2
3
4
7
4
3
4
SCALE ( 1 : 5 )
10
9
8
1
11
13
14
5
12
www.truturf.com 44
