Assembly Cover

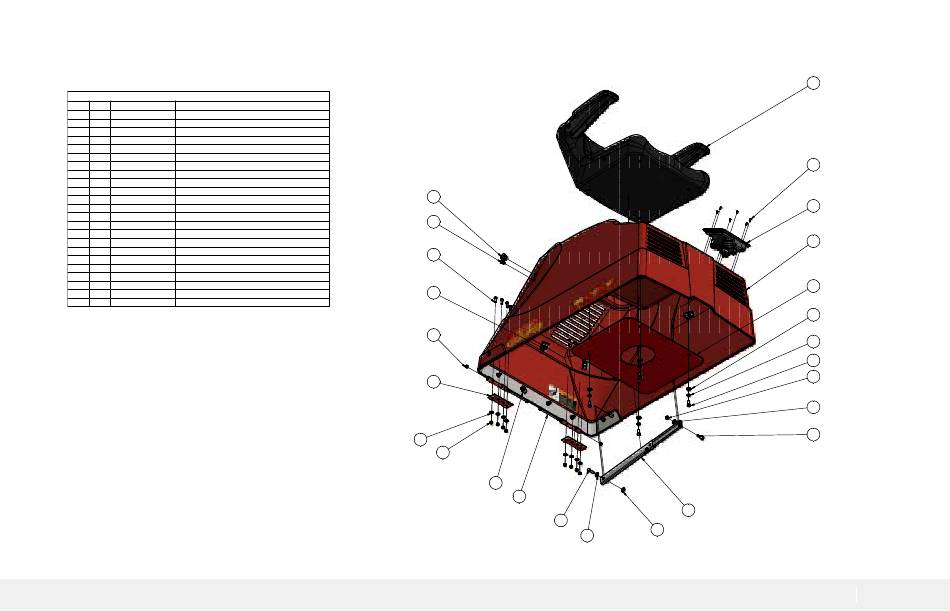

ASSEMBLY, COVER, ELECTRIC
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
E7076
CLIP, P, 10 mm
2
2
R5259
TIP, ROUND, TUBE, PLASTIC, BLK - 13OD
3
2
R6050
CAP, END, RND, PLASTIC, BLK - 3/4" HOLE
4
6
R8046
WASHER, FLAT, SAE, ZP - 5/16" ID x 3/4" OD
5
4
R8051
WASHER, SPRING, ZP - 5/16"
6
8
R8053
NUT, HEX, NYLOC, ZP - 1/4" UNF
7
1
R8054
NUT, HEX, NYLOC, ZP - 5/16" UNF
8
1
R8064
BOLT, HEX, ZP - 5/16" UNF x 1" LG
9
8
R8137
SET SCREW, HEX, ZP - 1/4" UNF x 3/4" LG
10
8
R8140
WASHER, FLAT - 1/4" ID x 5/8" OD. ZP
11
4
R8177
BOLT, HEX, ZP - 5/16" UNF x 3/4" LG
12
1
R8242
HCS, HEX CAP SCREW, ZP - M8 x 1.25 x 25 LG
13
6
R8260
RIVET, BLK, 5-4
14
1
R8365
MILSCO SEAT ALL PVC WITH ARMS MSC
15
2
R8518
CAP SCREW, HEX, Gr.5, ZP - 1/4"-20 UNC x 4.5 LG
16
3
R8519
NUT, HEX, NYLOC, THIN, ZP - 1/4"-20 UNC
17
1
R8776
STAY, COVER SUPPORT, PUSH BUTTON
18
1
R8993
WASHER, ACETAL, WHITE (219.3x8.0x2.7)
19
6
R9167
CABLE HOLDER, 1-7/16" L x 3/4" W x 1-1/4" H
20
1
RE5011
ASSEMBLY SWITCH CONTROLLER BOX
21
1
RE5013
COVER, ELECTRIC, PLASTIC, ASSEMBLY
22
2
RS2121
HINGE LOWER ASSY PLASTIC COVER
23
1
RS2185
PLATE, BASE REIO, COVER, SEAT
PART NUMBER: RER5018-0007
REVISION: F
DATE: 02/10/2020
BY: G.D.N.
