Tru-Turf RE50 Benutzerhandbuch Seite 36

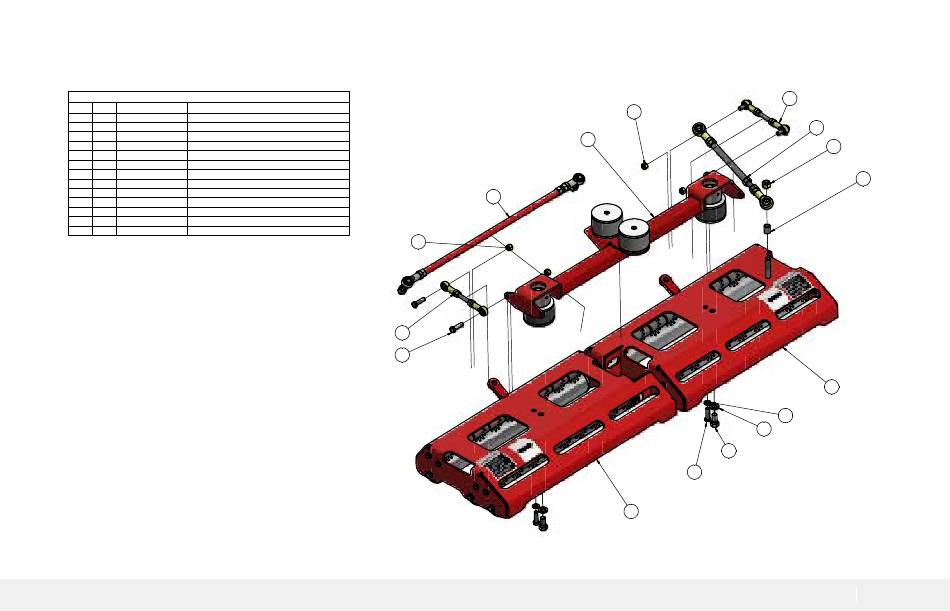

SMOOTHING HEAD & STEERING ASSY
Smoothing Head & Steering Assembly
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 2 R8052 WASHER, SPRING, ZP - 3/8"
2 4 R8055 NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
3 6 R8069
SET SCREW, HEX, ZP - 3/8" UNF x 1.25" LG
4 1 R8101 NUT, HEX, NYLOC, ZP - 1/2" UNF
5 2 R8107 WASHER, SPRING, ZP, 1/2"
6 2 R8183 SET SCREW, HEX, ZP - 1/2" UNF x 1" LG
7 1 RS2264 ASSEMBLY, PIVOT BEAM - SMOOTHING HEAD
8 1 RS2054 ASSEMBLY, REAR SMOOTHING HEAD
9 1 RS2052 ASSEMBLY,FRONT SMOOTHING HEAD
10 1 RS2039 ASSEMBY, STEERING CONNECTING ROD
11 1 RS2182 SPACER, STEERING, HEAD & ARM
12 2 RS2285 ASSEMBLY, STABILISER ROD
13 1 RS2326 ASSEMBLY, CONNECTING ROD
PART NUMBER: RER5018-0005
REVISION: D
DATE: 01/09/2020
BY: SP
RE50 Benutzerhandbuch
13
2
12
3
2
7
5
6
3
8
PART NUMBER: RER5018-0005
REVISION: D
www.truturf.com
12
10
4
11
9
1
34
