Engine Control Bracket

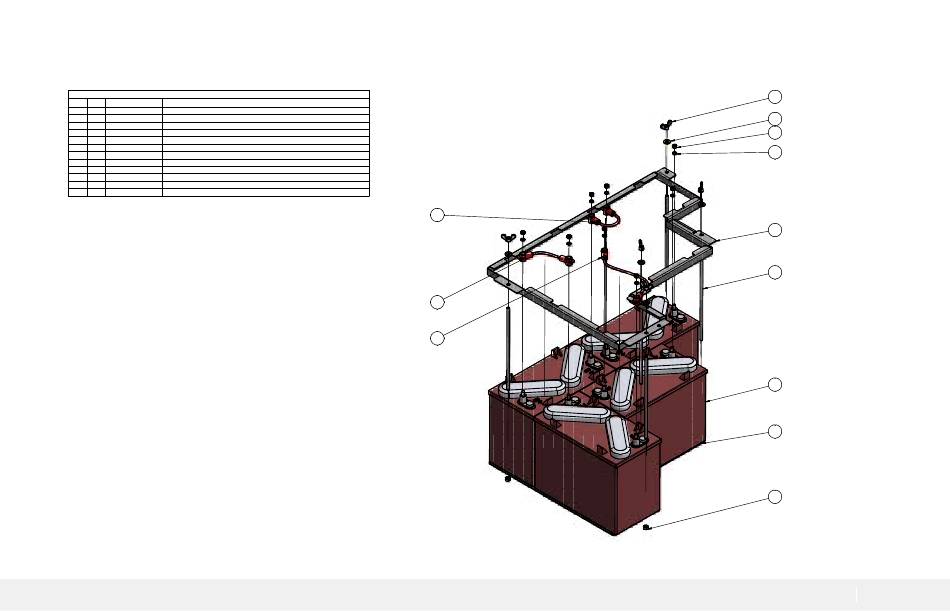

LEAD BATTERY ARRANGEMENT
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
4
E7047
BATTERY, 12V - TROJAN T-1275
2
1
E7213
BATTERY LINK CABLE A - AC UNIT
3
1
E7214
BATTERY LINK CABLE B - AC UNIT
4
1
E7215
BATTERY LINK CABLE C - AC UNIT
5
5
R8046
WASHER, FLAT, SAE, ZP - 5/16" ID x 3/4" OD
6
8
R8050
WASHER, SPRING, ZP - 1/4"
7
5
R8175
NUT, HEX, ZP - 5/16" UNF
8
8
R8246
NUT, HEX, ZP - 1/4" UNC
9
5
R8837
NUT WING HEAD SS - 5/16" UNF
10
1
E7056
RUBBER BATTERY MAT
11
5
RS2313
ROD, THREADED 5/16"-24 UNF, BATTERY HOLDER
12
1
RS2327
WELDMENT, LEAD ACID BATTERY HOLDER FRAME
PART NUMBER: RER5018-0009
REVISION: C
DATE:
BY: G.D.N.
RE50 Benutzerhandbuch
4
3
2
9
5
8
6
12
11
1
10
7
PART NUMBER: RER5018-0009
