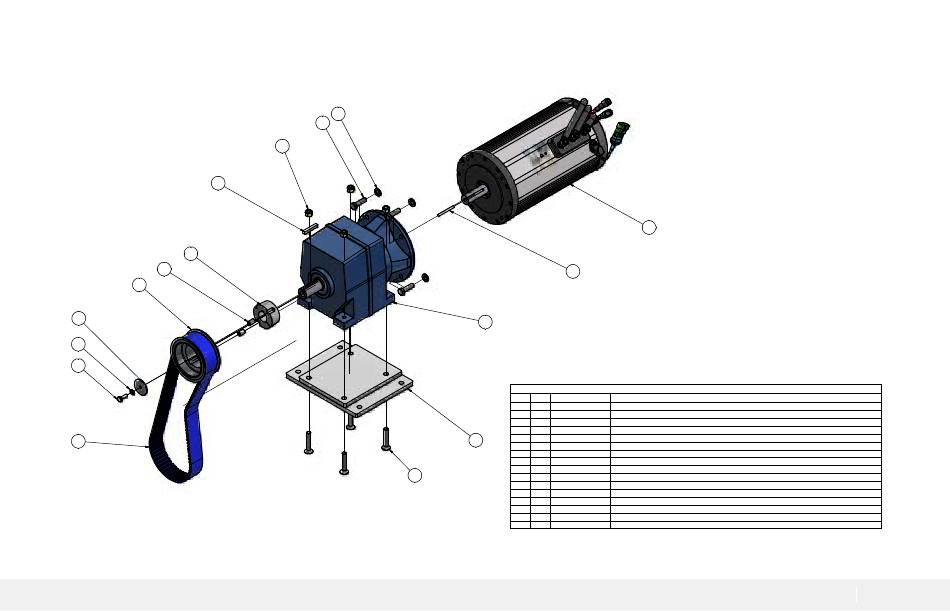

Transmission Assembly - Belt Drive
4
1
13
15
12
6
10
14
RE50 Benutzerhandbuch
9
11
7
8
5
2
3
TRANSMISSION ASSY - BELT DRIVE
ITEM
QTY
PART NUMBER
1
1
E7032
BUSH, TAPER LOCK - 1610-1
2
1
E7036
KEY, ELECTRIC MOTOR
3
1
E7039
REDUCTION GEARBOX
4
1
E7053
KEY, RECTANGULAR, REDUCTION GEARBOX
5
1
E7196
ELECTRIC MOTOR 48VacHOWLAND VRN16-443 [CRF Sri AME150-150-NEMA (Code: AME150.0019)]
16
6
1
R8050
WASHER, SPRING, ZP - 1/4"
7
4
R8055
NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
8
4
R8123
CAP SCREW, CSK FLAT HD, HEX SOC, Z/P - 3/8" UNF x 2" LG
9
4
R8127
WASHER, SPRING, ZP - M10
10
1
R8137
SET SCREW, HEX, ZP - 1/4" UNF x 3/4" LG
11
4
R8138
BOLT, HEX, ZP - 3/8" UNC x 1.25" LG.
12
1
R8255
WASHER, FLAT, ZP - 1/4" x 1-1/2" OD
13
2
R8437
SET SCREW, GRUB, HEX SOC, FLAT POINT - 3/8" UNC x 5/8" LG
14
1
E7074
DRIVE BELT - GATES POLYCHAIN CARBON 8MGT-960-36
15
1
E7072
SPROCKET
16
1
E7201
PLATE, GEARBOX MOUNTING
PART NUMBER: RER5018-0016
REVISION: A
DATE:
BY: G.D.N.
PART NUMBER: RER5018-0016
REVISION: A
PARTS LIST
DESCRIPTION
www.truturf.com
27
