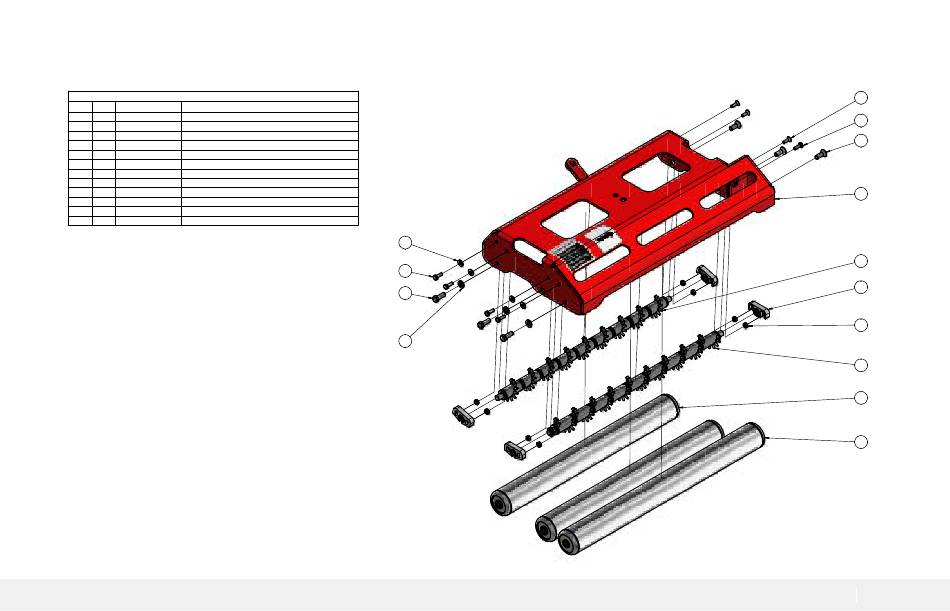

OVERLAPPING REAR SMOOTHING HEAD
Overlapping Rear Smoothing Head
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 3 R8052 WASHER, SPRING, ZP - 3/8"
2 3 R8067
BOLT, HEX. HEAD - 3/8" UNF x 1" LG.
3 5 R8137 SET SCREW, HEX, ZP - 1/4" UNF x 3/4" LG
4 4 R8140 WASHER, FLAT - 1/4" ID x 5/8" OD. ZP
5 3 R8158 FLAT HEAD SOCKET SCREW, 3/8" UNF x 1" LG, ZP
6 2 R8217 SMOOTHING ROLLER COMPLETE ASSY
7 2 R8468 ASSEMBLY, NODULE SWEEPER
8 3 R8655 FLAT HEAD SOCKET SCREW, 1/4" UNF x 0.75 LG, ZP
9 8 R8836 NUT, NYLOC, THIN, 1/4" UNF
10 4 R9421 ASSEMBLY, BEARING HOUSING, NODULE
11 1 RS2053 WELDMENT, HOUSING, REAR SMOOTHING HEAD
12 1 RS2050 SMOOTHING ROLLER, LONG, COMPLETE ASSY
PART NUMBER: RS2054
REVISION: E
DATE: 10/06/2020
BY: SP
RE50 Benutzerhandbuch
4
3
2
1
8
3
5
11
7
10
9
7
6
12
PART NUMBER: RER5018-0022
REVISION: E
