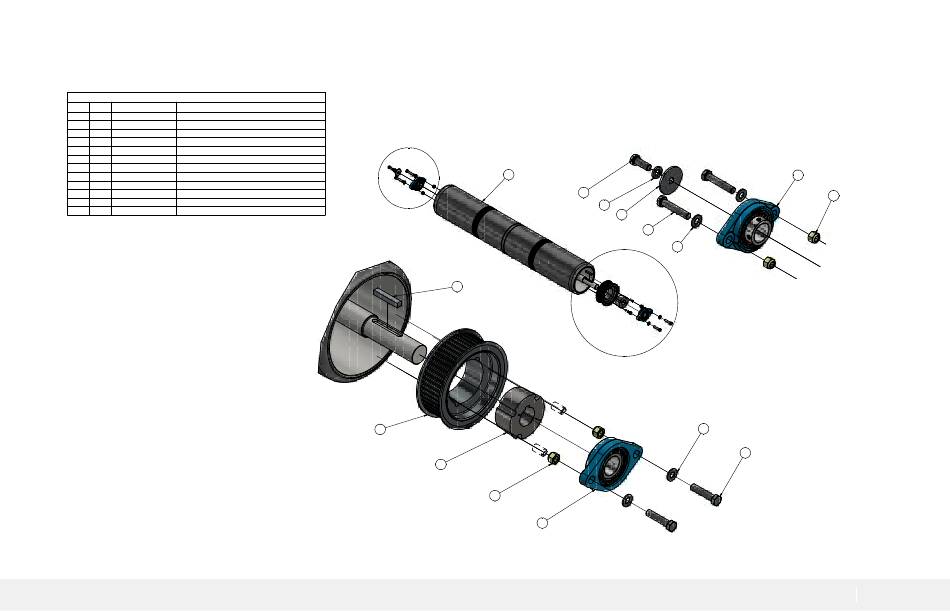

ASSEMBLY, FLEXI BELT DRIVE ROLLER
Assembly, Flex Belt Drive Roller
PARTS LIST
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
E7010
WASHER - M10x43x3
2
1
E7034
ASSEMBLY, FLEX TUBE DRIVE ROLLER
3
1
E7073
SPROCKET - GATES 8XM-50S-36
4
1
R5039A
BUSH TAPER LOCK, 2012-30
5
2
R5265
BEARING UNIT ASSY - SBLF206
6
4
R8048
WASHER, FLAT, ZP - 3/8" ID x 3/4" OD
7
1
R8052
WASHER, SPRING, ZP - 3/8"
8
4
R8055
NUT, HEX, NYLOC, P-TYPE, ZP - 3/8"UNF (FULL)
9
1
R8067
BOLT, HEX. HEAD - 3/8" UNF x 1" LG.
10
2
R8096
SET SCREW, HEX, ZP, 3/8" UNF x 1.75" LG
11
2
R8097
BOLT, HEX, ZP - 3/8" UNF x 2" LG
12
1
R9112
KEY, STEEL, 8x8x47
PART NUMBER: E7320
REVISION: A
DATE: 10/06/2020
BY: SP
RE50 Benutzerhandbuch
2
A
12
3
4
8
B
5
9
7
1
11
6
A
B
6
10
PART NUMBER: E7320
REVISION: A
www.truturf.com
5
8
36
