Options

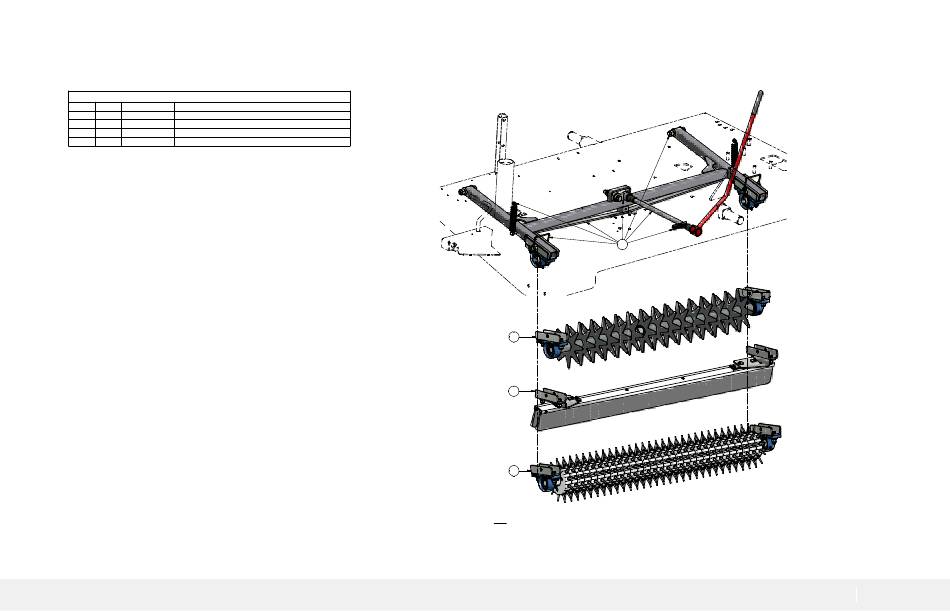

RS2099 R50-11 AVAILABLE OPTIONS : PARTS LIST
ITEM QTY PART NUMBER
1 1 RS2070
2 1 RS2010
3 1 RS2067
4 1 RS2040
3
SLICER OPTION ASSY
OMPLETE KIT P/N: RS2067
2
BRUSH OPTION ASSY
MPLETE KIT P/N: RS2010
RE50 Benutzerhandbuch
DESCRIPTION
OPTION H FRAME & LEVER ASSY
BRUSH OPTION ASSY COMPLETE
SLICER OPTION ASSY COMPLETE
PIN SPIKER OPTION ASSY COMPLETE
1
OPTION H FRAME & LEVER ASSY
COMPLETE KIT P/N: RS2070
RS2099 R50-11 AVAILABLE OPTIONS : PARTS LIST
ITEM QTY
1 1
2 1
3 1
4 1
3
SLICER OPTION ASSY
COMPLETE KIT P/N: RS2067
2
3
BRUSH OPTION ASSY
COMPLETE KIT P/N: RS2010
4
PIN SPIKER HUB OPTION ASSY
COMPLETE KIT P/N: RS2040
NOTE: THE OPTIONS ARE INTER-CHANGEABLE QUICKLY, AFTER RAISING THE BODY BY LOCKING INTO THE TRAILING POSITION,
THEN RELEASING THE TWO (2) SAFTEY PINS HOLDING THE OPTION IN PLACE ALLOWING THE EXISTING OPTION AND IT'S
CARRIAGE TO DROP OUT OF THE OPERATING 'H' FRAME LOCATION TO THE GROUND AND REVERSE THIS PRODEDURE TO
INSTALL THE NEXT OPTION BY RAISING THE OPTION TO LOCATE ON TO THE 'H' FRAME, FINISHING BY LOCKING THE
OPTION WITH THE SAFETY PIN ON BOTH FRAME SIDES.
PART NUMBER DESCRIPTION
RS2070 OPTION H FRAME & LEVER ASSY
RS2010 BRUSH OPTION ASSY COMPLETE
RS2067 SLICER OPTION ASSY COMPLETE
RS2040 PIN SPIKER OPTION ASSY COMPLETE
1
OPTION H FRAME & LEVER ASSY
COMPLETE KIT P/N: RS2070
3
