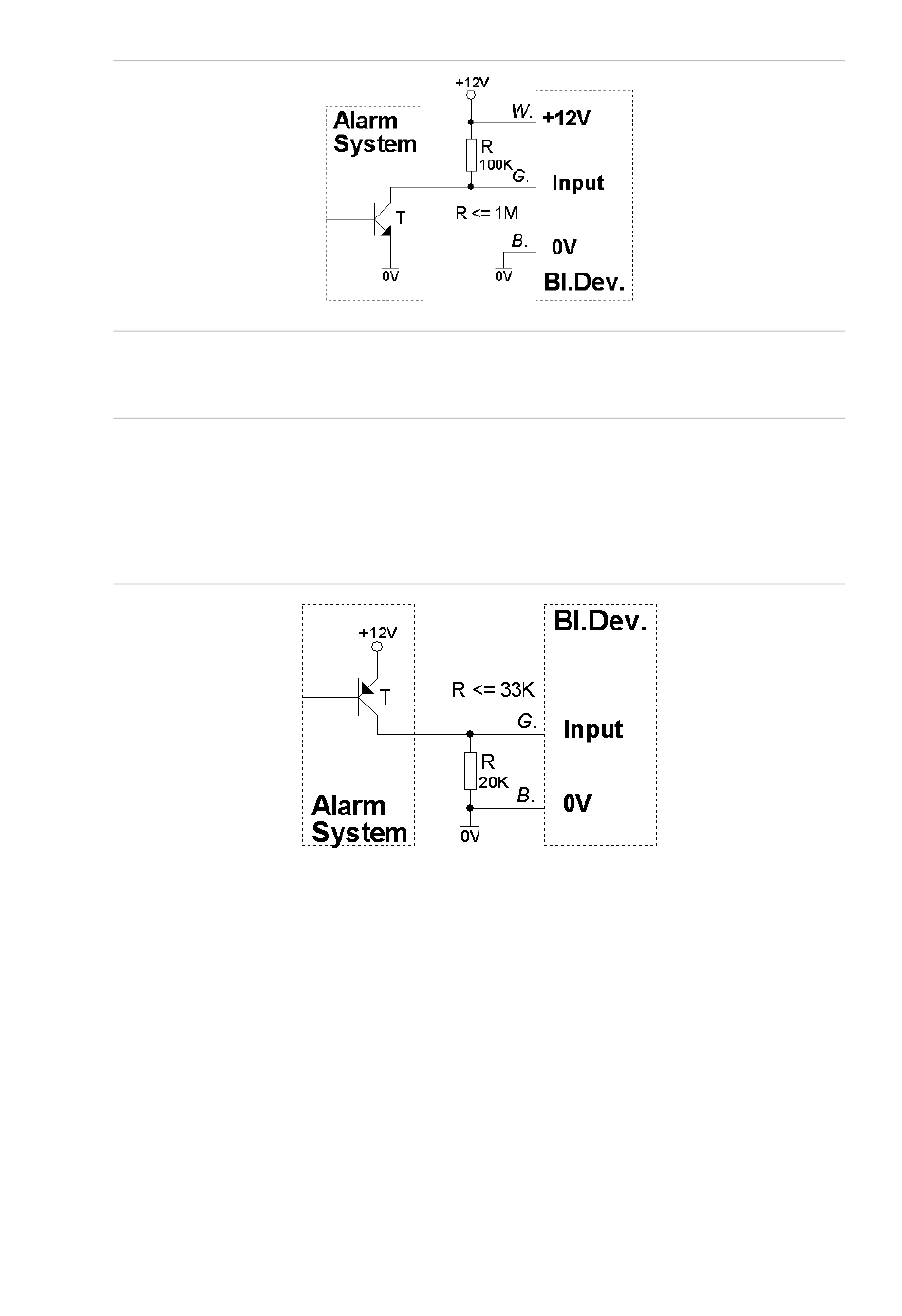

Figure 6: Ext. armed 0 V — active + Pull-up
Caution: When using a pull-up resistance, the quiescent current consumption of
the status "closed" will increase depending on the voltage and the used
resistance value. Calculation example: U = 12 V, R = 100 kΩ: I = 120 µA.
R
Example of switching on with "+12 V-activated" — "not armed" signal
When activating the input via a p-n-p transistor, a resistance needs to be put
between the input and 0 V. The resistance value should not exceed 33 kΩ.
Figure 7: Ext. fuzzy +12 V — active
Connection of several blocking devices
You can connect several blocking devices in series so that they will close one
after another.
The low voltage side can be used by switching on LEDs to display the status.
SP1083600 Motor-Driven Blocking Device EasyLock Installation Manual 11
