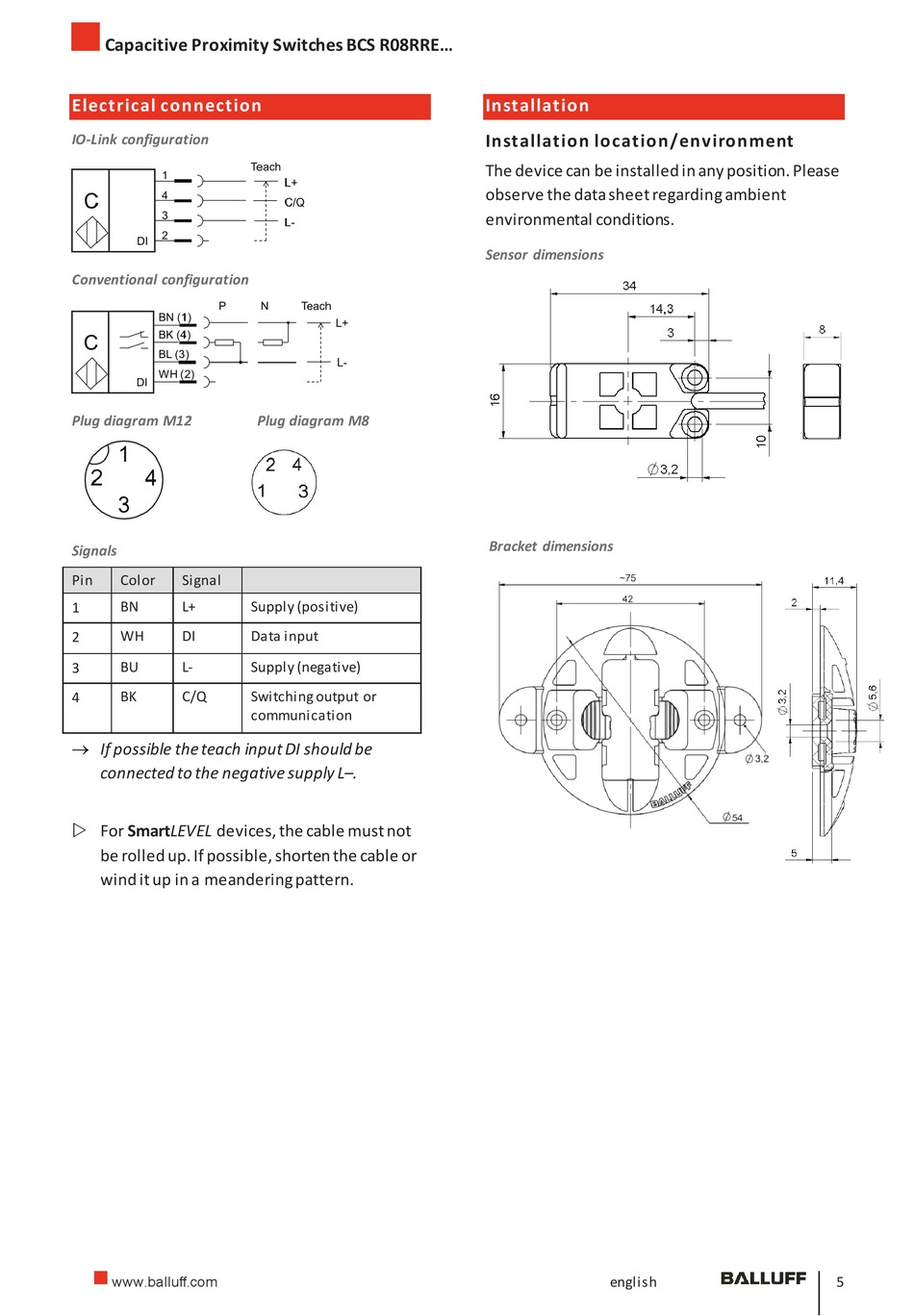

Capacitive Proximity Switches BCS R08RRE...
Electrical connection
IO-Link configuration
Conventional configuration
Plug diagram M12
Signals
Pin
Color
Signal
BN
L+
1
WH
DI
2
BU
L-
3
BK
C/Q
4
® If possible the teach input DI should be
connected to the negative supply L–.
w For SmartLEVEL devices, the cable must not
be rolled up. If possible, shorten the cable or
wind it up in a meandering pattern.
www.balluff.com
Plug diagram M8
Supply (positive)
Data input
Supply (negative)
Switching output or
communication
Installation
Installation location/environment
The device can be installed in any position. Please
observe the data sheet regarding ambient
environmental conditions.
Sensor dimensions
Bracket dimensions
english
5
