REAR PANEL

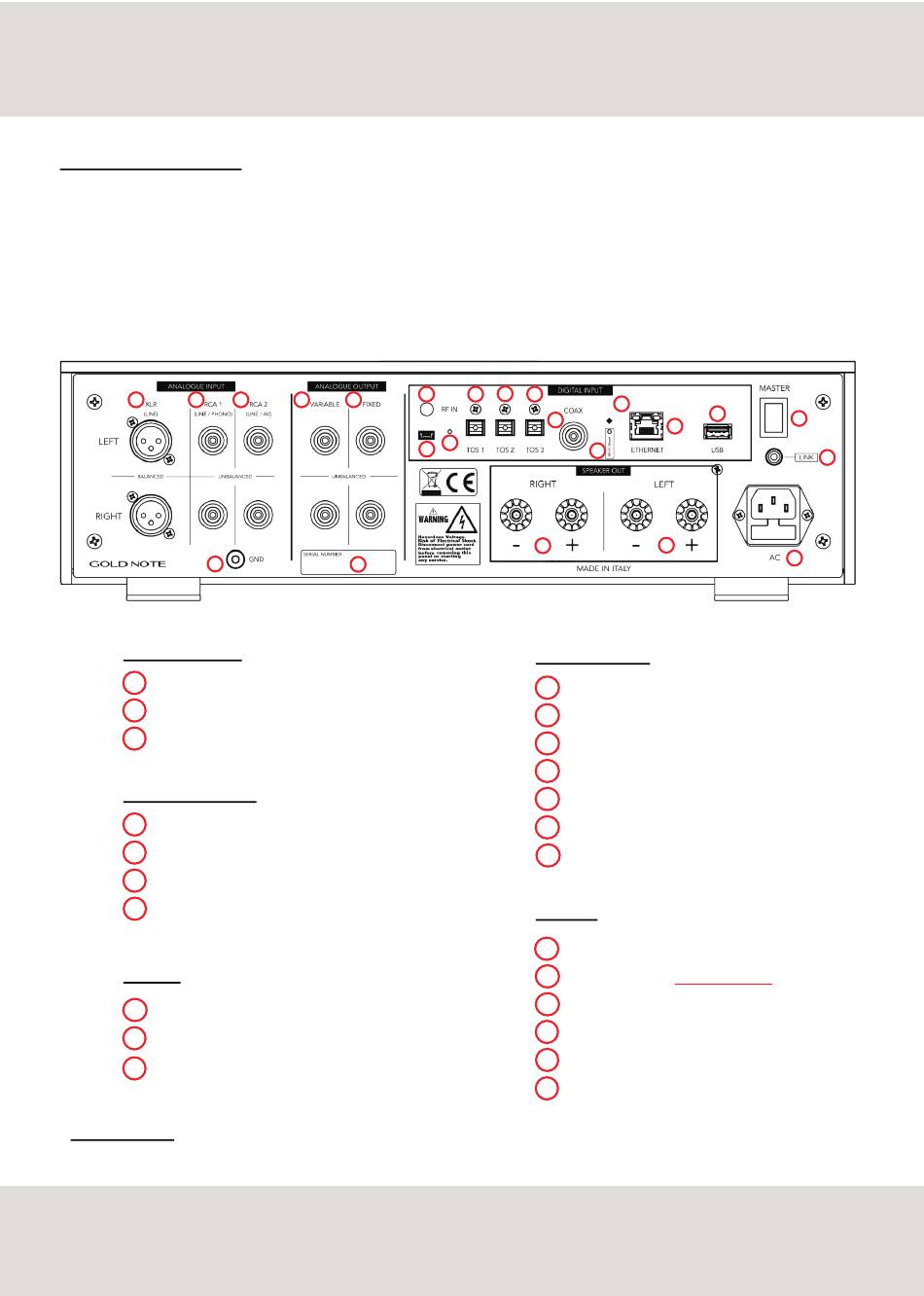

REAR PANEL OVERVIEW
IS-1000 features a wide selection of connections to offer the best versatility and become the core of a real High-End system
that will deliver audio in true audiophile quality:
- 7 digital inputs (PCM up to 24bit/192kHz & DSD 64 )
- 3 analogue inputs (1 XLR balanced and 2 RCA unbalanced)
- 4 analogue outputs (variable and fixed)
1 2
23
ANALOG INPUT
1
XLR balanced
2
RCA 1 unbalanced (LINE or PHONO)
3
RCA 2 unbalanced (LINE or AV)
ANALOG OUTPUT
4
RCA unbalanced VARIABLE
5 RCA unbalanced FIXED
20 SPEAKER OUT left
21
SPEAKER OUT right
POWER
14 Blue light LED
17 Master Switch ON/OFF
19 AC plug IEC standard
*PLEASE NOTE:
RCA 1 unbalanced LINE on IS-1000 LINE. RCA 1 unbalanced LINE / PHONO on IS-1000 / IS-1000 DELUXE
7
3 5
4
22
6 9 10 11
12
8
7
13
21
DIGITAL INPUT
6
RF IN (Wi-Fi aerial)
9
TOS link 1
10
TOS link 2
11 TOS link 3
12 COAX
15 Ethernet
16 USB type A (USB flash memories)
OTHERS
mini USB (Firmware update)
7
8
Firmware Reset
13 Wi-Fi Reset (to connect to your Wi-Fi)
18 LINK sync trigger
22
Serial Number
23
GND (PHONO)
14
16
LED
15
20
only for service
17
18
19
