| REAR PANEL

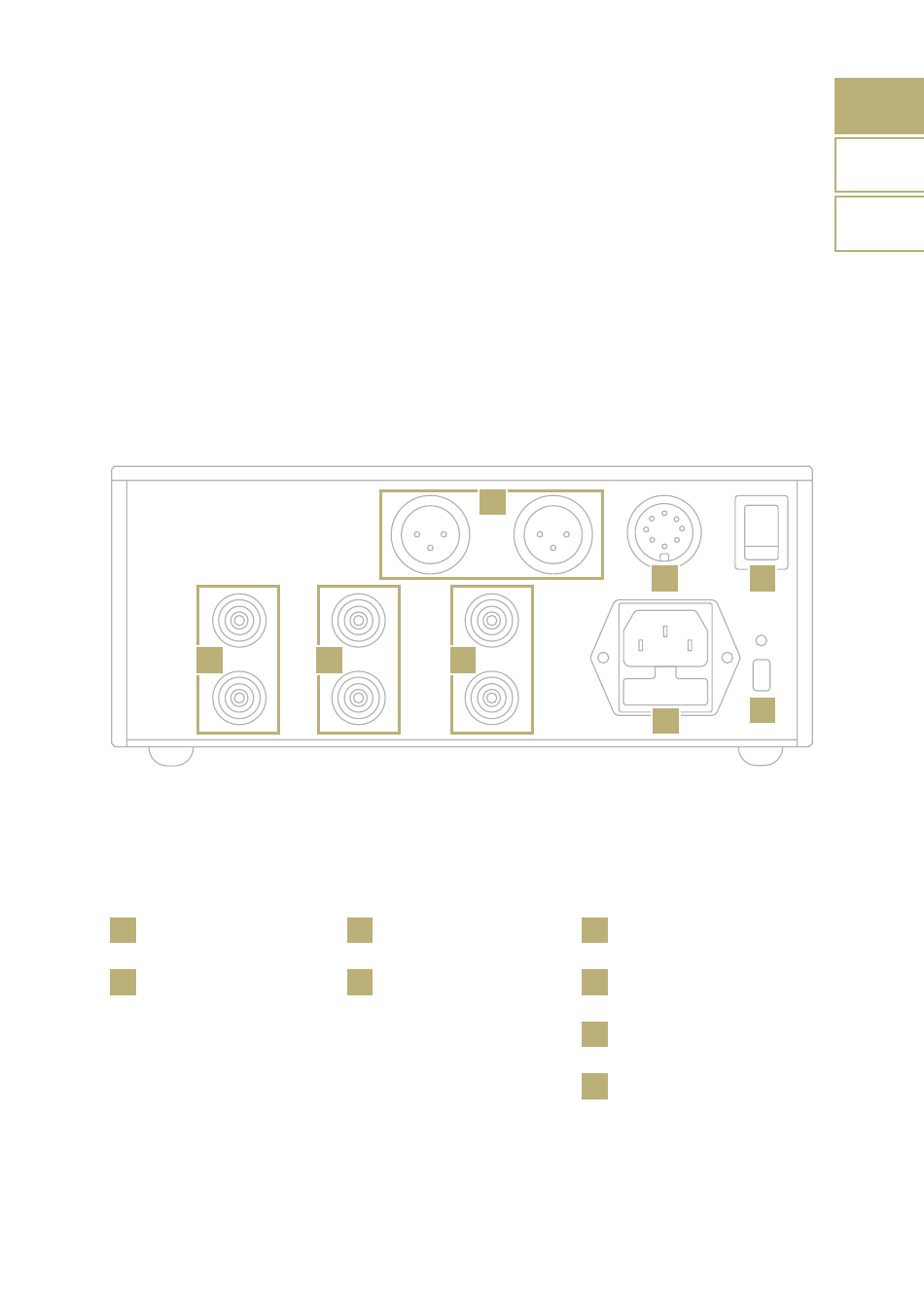

REAR PANEL OVERVIEW
The PH-10 features high-quality connectors
to provide maximum versatility. The PSU
IN input is dedicated to the external power
supply PSU-10 to enhance even further the
performance of your PH-10.
1
LINE INPUT
1
RCA 1 Phono and GND 1
(GND signal ground)
2
RCA 2 Phono and GND 2
(GND signal ground)
4
2 3
LINE OUTPUT
3
RCA unbalanced
4
XLR balanced
4
5
7
POWER AND OTHERS
5
PSU-IN (for the external
power supply PSU-10)
6
Master Switch ON/OFF
7
AC plug IEC standard
8
USB port (for service only)
