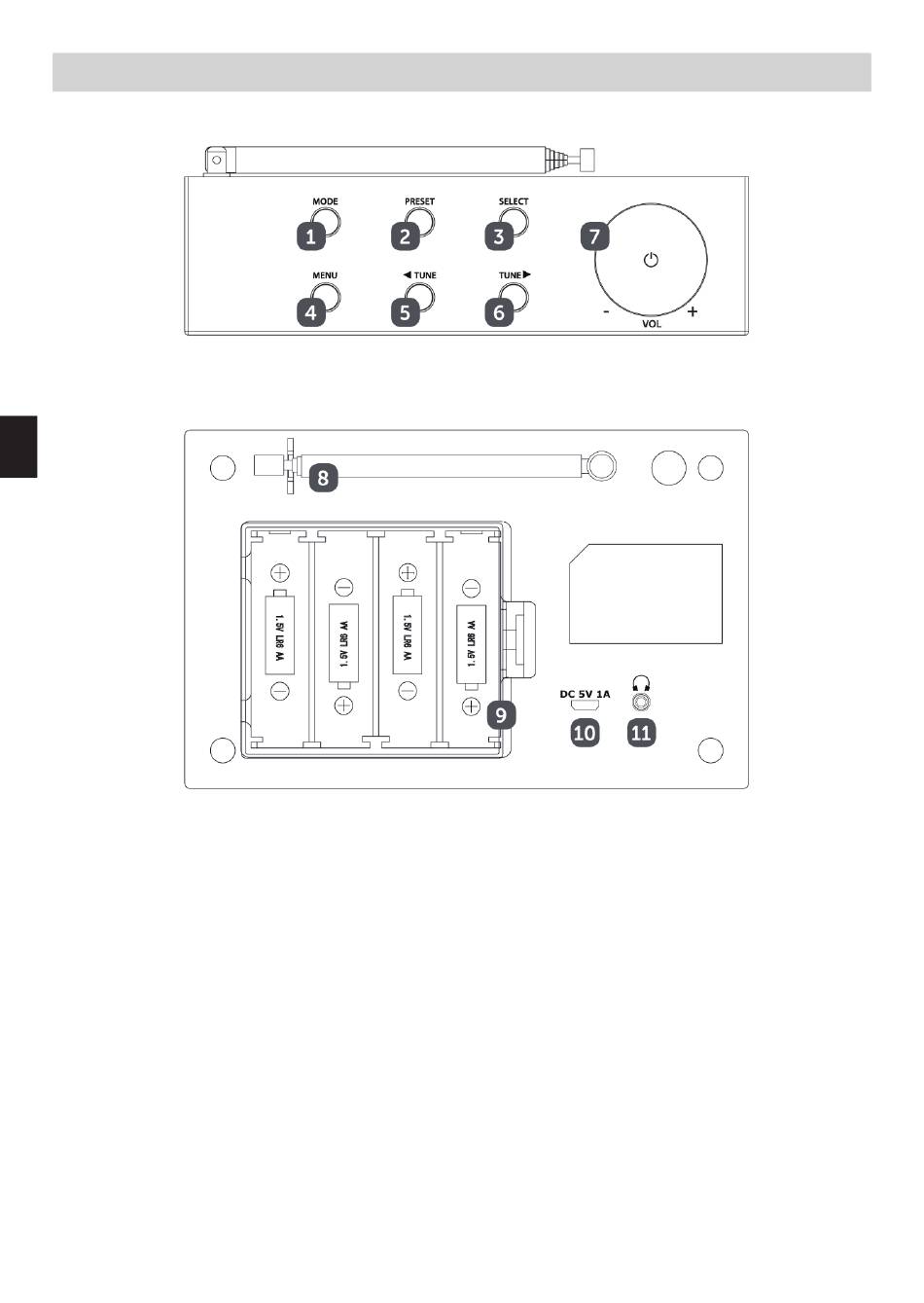

4. OVERVIEW OF CONTROLS

E
1 Mode (on/standby/source selection)
2 Preset (saved favourites)
3 Select (select/confirm)
4 Menu (menu controls/change displays)
5 <Tune (selection on the left/ lower figure)
6 <Tune (selection on the right/ raise figure)
7 Standby/on/off/vol+/- (increase/decrease volume)
8 DAB+/FM telescopic antenna
9 Battery compartment (4x AA LR6 1.5V)
10 DC-IN (external power supply 5.9V)
11 Headphone jack (3.5mm jack)
Operating Manual 58
