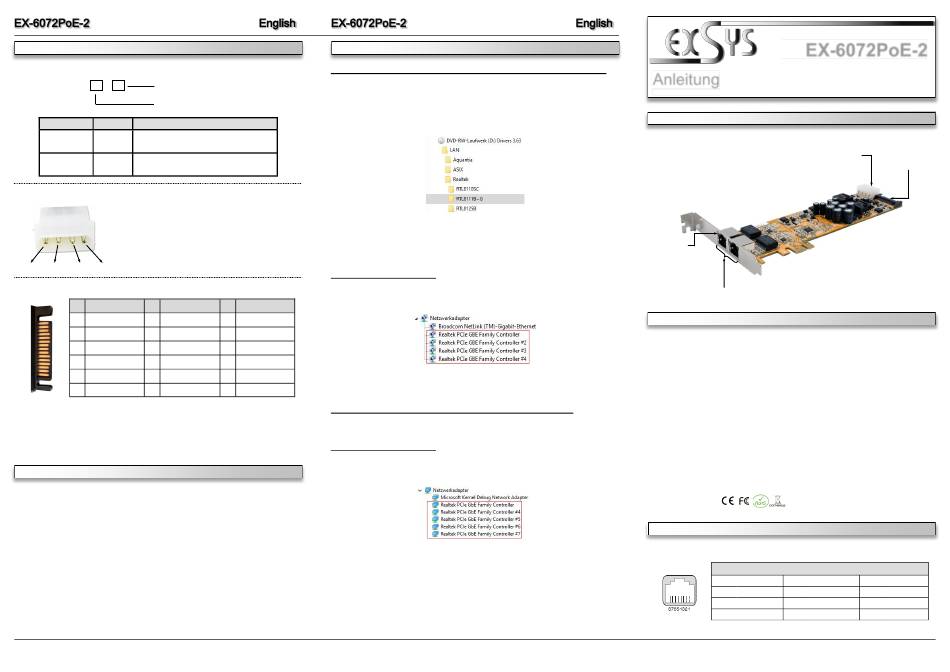

Exsys EX-6072PoE-2 Anleitung

CONNECTORS & LED'S
Status LED´s:
LINK / Activity LED
PoE LED
LED Name Color LED Function
Steady on: Linked
LINK (ACT) Green
Blinking: Data Transmission
Steady on: PoE enabled
PoE Yellow
Off: PoE disabled
J3:
To use the PoE function of the EX-6072PoE-2 and to supply
the end devices with power, the card must be connected to
the power connector of the PC power supply! Only one
power connector may be used J3 OR J4!
Please pay attention to the correct polarity!
Attention! Never connect or release the plug while the
PC is supplied with power!
1 +12V 2 GND 3 GND 4 +5V
J4:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
To use the PoE function of the EX-6072PoE-2 and to supply the end devices with power, the
card must be connected to the power connector of the PC power supply! Only one power
connector may be used J3 OR J4!
Please pay attention to the correct polarity!
Attention! Never connect or release the plug while the PC is supplied with power!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-6072PoE-2. Please refer
your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Now install the power supply via the 4-Pin Molex or SATA 15-Pin connector. (see picture
Connectors J3 or J4)
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
5
DRIVER INSTALLATION
Windows 98SE / ME / 2000 / XP / Vista / 7 / Server 2003 & 2008R2
After starting Windows is recognizes a new "Ethernet-Controller". Please insert the Driver CD
into your CD-Rom drive (e.g. Drive D:) and open the folder „LAN/RTL8111B-G". Please select
the folder with your operating system and install the driver (see Picture). Follow the hardware
assistant and finish the installation. Important! Restart your PC in any case after installing the
drivers.
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new
entry's:
Pin Assignment
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8.x / 10 / 11 / Server 2012R2 / 2016 / 2019 / 2022
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new
entry's:
If you see this or a similar information the device is installed correctly.
AUFBAU
Status LED's
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-6072PoE-2 ist eine High-Speed Gigabit Ethernet PCI-Express Karte mit Power over
Ethernet (PoE) Funktion. Sie ist mit zwei externen Ports ausgestattet. Jeder Port hat einen
eigenen Realtek Chip für eine optimale und schnelle Datenübertragung. Sie unterstützt alle PCI
-Express Slots von x1 bis x16. Der PCI-Express Bus unterstützt optimal die Leistung des
schnellen Realtek Chipsatz. Die EX-6072PoE-2 gewährleistet so eine sichere Datenübertra-
gung und exzellente Performance von bis zu 1Gbit/s! Die EX-6072-PoE-2 liefert isolierte 48V
über das Ethernet-Kabel für PoE (PD) Geräte. Die Karte unterstützt auch Crossover-Erkennung
und Auto-Korrektur-Funktion für die einfache Netzwerkverkabelung. Im Lieferumfang der EX-
6072PoE-2 ist ein Low Profile Bügel enthalten, welcher Ihnen auch einen Einbau in schmale PC
-Gehäuse bis maximal 8cm Bauhöhe ermöglicht.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE & LED'S
RJ45 Anschluss:
6
EX-6072PoE-2
Anleitung
Vers. 1.0 / 21.07.22
J3:
4-Pin Molex
Power Anschluss
vom PC-Netzteil
2x RJ45 Anschluss
PCI-Express x1 bis x16
Windows 98SE / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx
Mac / Linux / UNIX / Novell
2x RJ45 Gigabit Ethernet Anschluss, 1x SATA 15-Pin Anschluss,
1x 4-Pin Molex Anschluss
EX-6072PoE-2, Low Profile Bügel, Treiber CD, Anleitung
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
1
J4:
SATA 15-Pin
Power Anschluss
vom PC-Netzteil
Pin Signal
7 BI_DD+
8 BI_DD-
