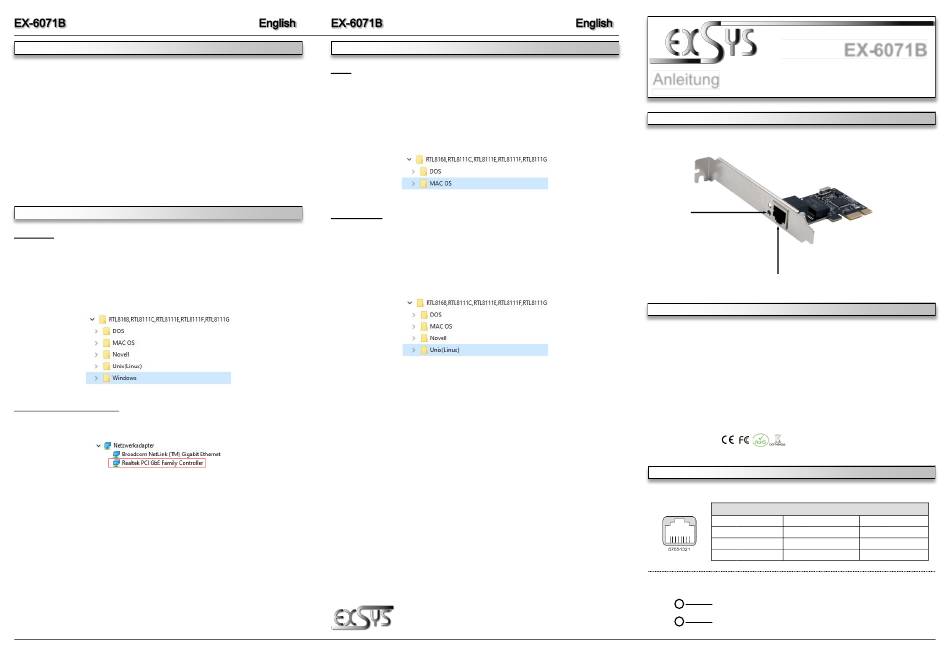

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-6071B. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and
„RTL8168,RTL8111C,RTL8111E,RTL8111F,RTL8111G/Windows". Please select the folder with
your operating system and install the driver (see Picture). Follow the hardware assistant and
finish the installation. Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new entry:
If you see this or a similar information the device is installed correctly.
5
DRIVER INSTALLATION
MAC
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive
„RTL8168,RTL8111C,RTL8111E,RTL8111F,RTL8111G/Mac OS". Please select the folder with
your operating system and install the driver (see Picture). Follow the hardware assistant and
finish the installation. Important! Restart your PC in any case after installing the drivers.
Linux / Unix
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive
„RTL8168,RTL8111C,RTL8111E,RTL8111F,RTL8111G/Unix(Linux)". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
then open the folder
and finish the installation. Important! Restart your PC in any case after installing the drivers.
(eg drive D:) and then open the
(eg drive D:) and then open the
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.2 / 27.10.22
folder
AUFBAU
Status LED´s
folder
RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-6071B ist eine High-Speed Gigabit Ethernet PCI-Express Karte. Sie ist mit einem
externen RJ45 Anschluss ausgestattet. Die EX-6071B unterstützt alle PCI-Express Slots von x1
bis x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des schnellen Realtek
Chipsatz. Die EX-6071B gewährleistet so eine sichere Datenübertragung und exzellente Perfor-
mance von bis zu 1 Gbit/s!
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
MAC / Linux / Unix / Novell
Anschlüsse: 1x RJ45 Gigabit Ethernet Anschluss
Lieferumfang: EX-6071B, Treiber CD, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE & LED`S
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal
1 BI_DA+
2 BI_DA-
3 BI_DB+
Status LED´s:
LINK / Connected
ACT LAN DATA
EX-6071B
Pin Signal Pin Signal
4 BI_DC+ 7 BI_DD+
5 BI_DC- 8 BI_DD-
6 BI_DB-
