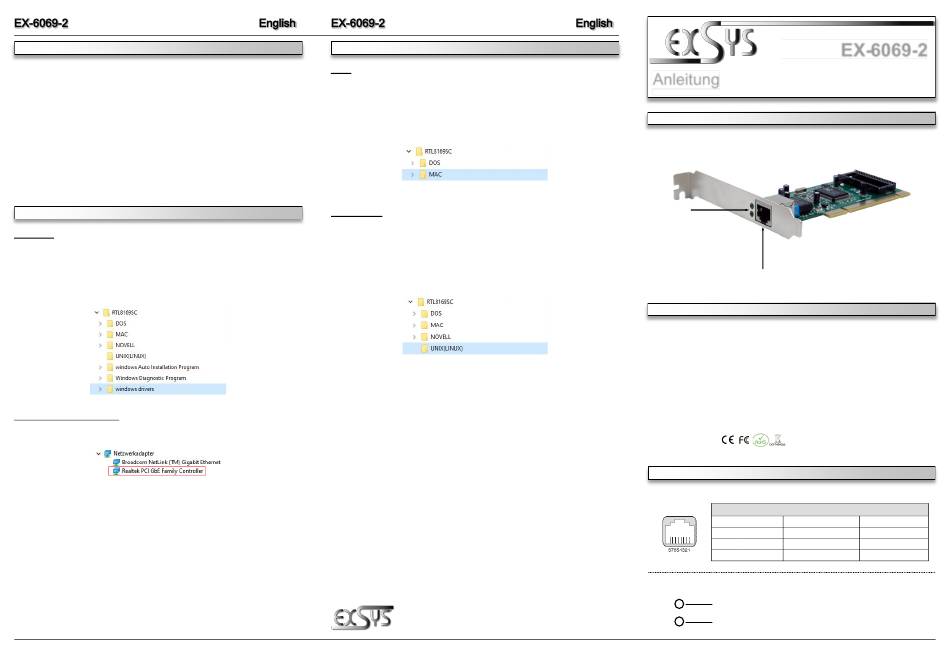

Exsys EX-6069-2 Anleitung

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-6069-2. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI expansion slot and insert the card. Make sure that the card is plugged
in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „RTL8169SC/windows drivers". Please select
the folder with your operating system and install the driver (see Picture). Follow the hardware
assistant and finish the installation. Important! Restart your PC in any case after installing the
drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Networkadapter" the following new entry:
If you see this or a similar information the device is installed correctly.
5
DRIVER INSTALLATION
MAC
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „RTL8169SC/MAC". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
Linux / Unix
After completing the hardware installation, the operating system will automatically the card and
install this! If the driver should not be installed automatically, insert the driver CD into you CD-
ROM drive (eg drive D:) and then open the folder „RTL8169SC/UNIX(LINUX)". Please select
the folder with your operating system and install the driver (see Picture). Follow the hardware
assistant and finish the installation. Important! Restart your PC in any case after installing the
drivers.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 01.11.22
AUFBAU
Status LED´s
RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-6069-2 ist eine High-Speed Gigabit Ethernet PCI Karte. Sie ist mit einem externen RJ45
Anschluss ausgestattet. Die EX-6069-2 unterstützt den PCI & PCI-X Bus mit 5 Volt und 3,3 Volt.
Der serielle PCI Bus unterstützt optimal die Leistung des schnellen Realtek Chipsatz. Die EX-
6069-2 gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis zu
1 Gbit/s!
Kompatibilität: PCI oder PCI-X, 33Mhz
Betriebssysteme: Windows 98SE / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
MAC / Linux / Unix / Novell
Anschlüsse: 1x RJ45 Gigabit Ethernet Anschluss
Lieferumfang: EX-6069-2, Treiber CD, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE & LED`S
RJ45 Anschluss:
RJ45 Anschluss
Pin Signal Pin Signal
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
Status LED´s:
ACT LAN DATA
LINK / Connected
1
EX-6069-2
Pin Signal
7 BI_DD+
8 BI_DD-
