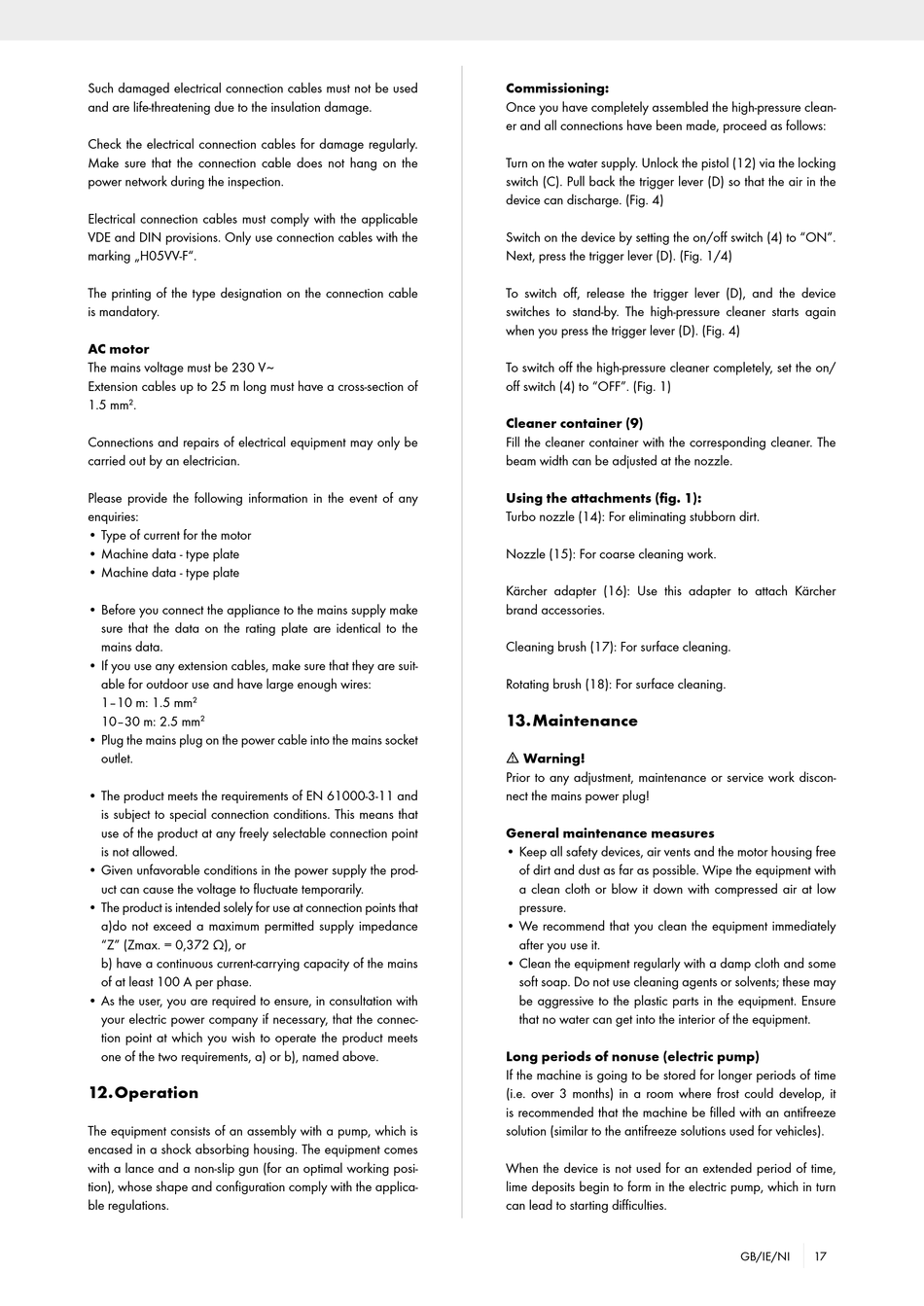

Such damaged electrical connection cables must not be used
and are life-threatening due to the insulation damage.
Check the electrical connection cables for damage regularly.
Make sure that the connection cable does not hang on the
power network during the inspection.
Electrical connection cables must comply with the applicable
VDE and DIN provisions. Only use connection cables with the
marking „H05VV-F".
The printing of the type designation on the connection cable
is mandatory.
AC motor
The mains voltage must be 230 V ~
Extension cables up to 25 m long must have a cross-section of
1.5 mm .
2
Connections and repairs of electrical equipment may only be
carried out by an electrician.
Please provide the following information in the event of any
enquiries:
• Type of current for the motor
• Machine data - type plate
• Machine data - type plate
• Before you connect the appliance to the mains supply make
sure that the data on the rating plate are identical to the
mains data.
• If you use any extension cables, make sure that they are suit-
able for outdoor use and have large enough wires:
1–10 m: 1.5 mm
2
10–30 m: 2.5 mm
2
• Plug the mains plug on the power cable into the mains socket
outlet.
• The product meets the requirements of EN 61000-3-11 and
is subject to special connection conditions. This means that
use of the product at any freely selectable connection point
is not allowed.
• Given unfavorable conditions in the power supply the prod-
uct can cause the voltage to fluctuate temporarily.
• The product is intended solely for use at connection points that
a)do not exceed a maximum permitted supply impedance
"Z" (Zmax. = 0,372 Ω), or
b) have a continuous current-carrying capacity of the mains
of at least 100 A per phase.
• As the user, you are required to ensure, in consultation with
your electric power company if necessary, that the connec-
tion point at which you wish to operate the product meets
one of the two requirements, a) or b), named above.
12. Operation
The equipment consists of an assembly with a pump, which is
encased in a shock absorbing housing. The equipment comes
with a lance and a non-slip gun (for an optimal working posi-
tion), whose shape and configuration comply with the applica-
ble regulations.
Commissioning:
Once you have completely assembled the high-pressure clean-
er and all connections have been made, proceed as follows:
Turn on the water supply. Unlock the pistol (12) via the locking
switch (C). Pull back the trigger lever (D) so that the air in the
device can discharge. (Fig. 4)
Switch on the device by setting the on/off switch (4) to "ON".
Next, press the trigger lever (D). (Fig. 1/4)
To switch off, release the trigger lever (D), and the device
switches to stand-by. The high-pressure cleaner starts again
when you press the trigger lever (D). (Fig. 4)
To switch off the high-pressure cleaner completely, set the on/
off switch (4) to "OFF". (Fig. 1)
Cleaner container (9)
Fill the cleaner container with the corresponding cleaner. The
beam width can be adjusted at the nozzle.
Using the attachments (fig. 1):
Turbo nozzle (14): For eliminating stubborn dirt.
Nozzle (15): For coarse cleaning work.
Kärcher adapter (16): Use this adapter to attach Kärcher
brand accessories.
Cleaning brush (17): For surface cleaning.
Rotating brush (18): For surface cleaning.
13. Maintenance
m Warning!
Prior to any adjustment, maintenance or service work discon-
nect the mains power plug!
General maintenance measures
• Keep all safety devices, air vents and the motor housing free
of dirt and dust as far as possible. Wipe the equipment with
a clean cloth or blow it down with compressed air at low
pressure.
• We recommend that you clean the equipment immediately
after you use it.
• Clean the equipment regularly with a damp cloth and some
soft soap. Do not use cleaning agents or solvents; these may
be aggressive to the plastic parts in the equipment. Ensure
that no water can get into the interior of the equipment.
Long periods of nonuse (electric pump)
If the machine is going to be stored for longer periods of time
(i.e. over 3 months) in a room where frost could develop, it
is recommended that the machine be filled with an antifreeze
solution (similar to the antifreeze solutions used for vehicles).
When the device is not used for an extended period of time,
lime deposits begin to form in the electric pump, which in turn
can lead to starting difficulties.
GB/IE/NI 17
