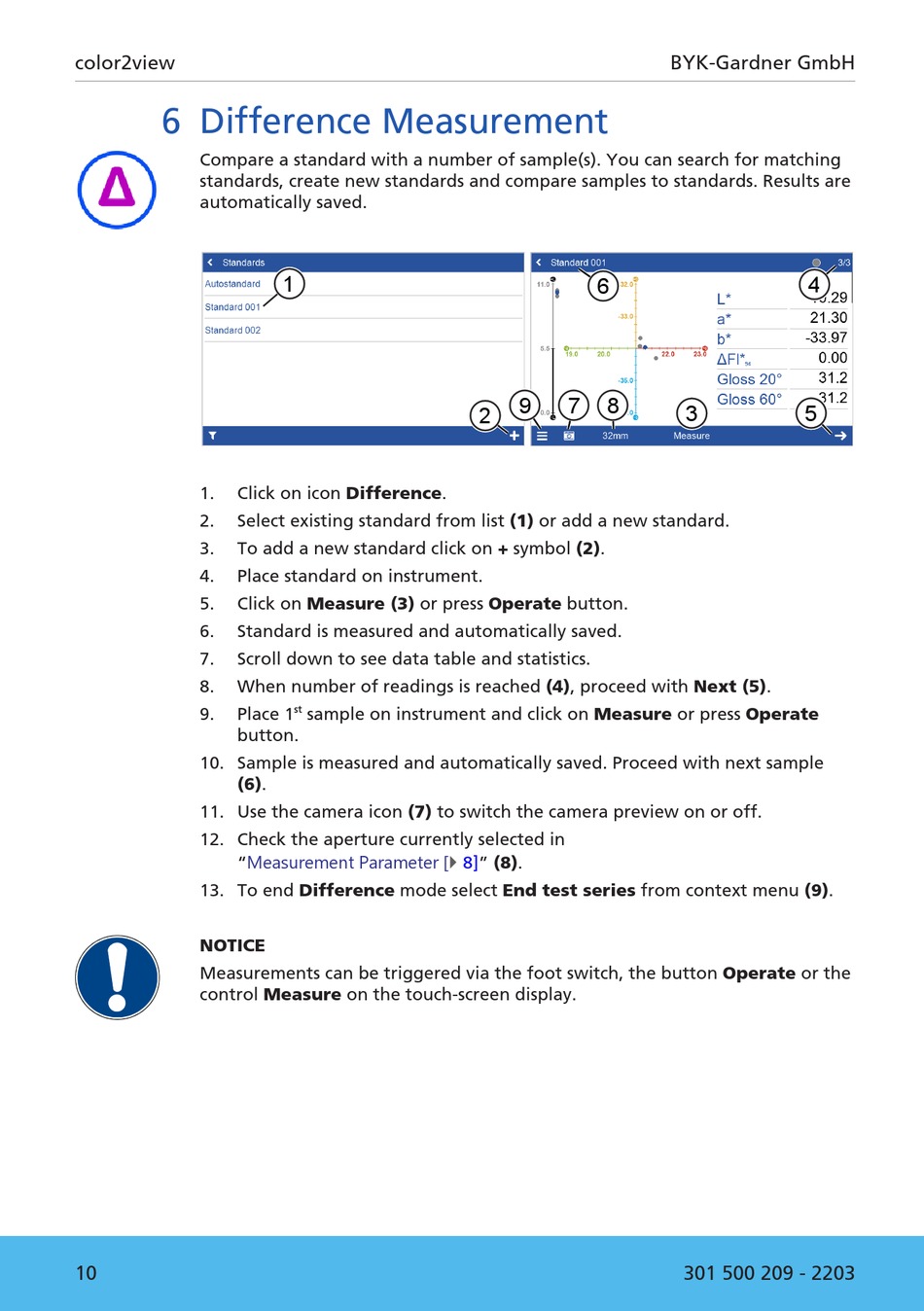

6 Difference Measurement
Compare a standard with a number of sample(s). You can search for matching
standards, create new standards and compare samples to standards. Results are
automatically saved.
1.
Click on icon Difference.
2.
Select existing standard from list (1) or add a new standard.
3.
To add a new standard click on + symbol (2).
4.
Place standard on instrument.
5.
Click on Measure (3) or press Operate button.
6.
Standard is measured and automatically saved.
7.
Scroll down to see data table and statistics.
8.
When number of readings is reached (4), proceed with Next (5).
9.
Place 1
button.
10. Sample is measured and automatically saved. Proceed with next sample
(6).
11. Use the camera icon (7) to switch the camera preview on or off.
12. Check the aperture currently selected in
"Measurement Parameter
13. To end Difference mode select End test series from context menu (9).
NOTICE
Measurements can be triggered via the foot switch, the button Operate or the
control Measure on the touch-screen display.
10
1
st
sample on instrument and click on Measure or press Operate
[} 8]" (8).
