5 Complete installation ETS-05
Ensure that the pipe and sensor are thermally insulated and clad to the
design specification after installation of thermostat. Seal cladding with
sealant (A). When thermostat installation is complete, test as described
in the Testing & Commissioning Section. Retain this instruction for future
use, e.g. setting, testing, maintenance etc.

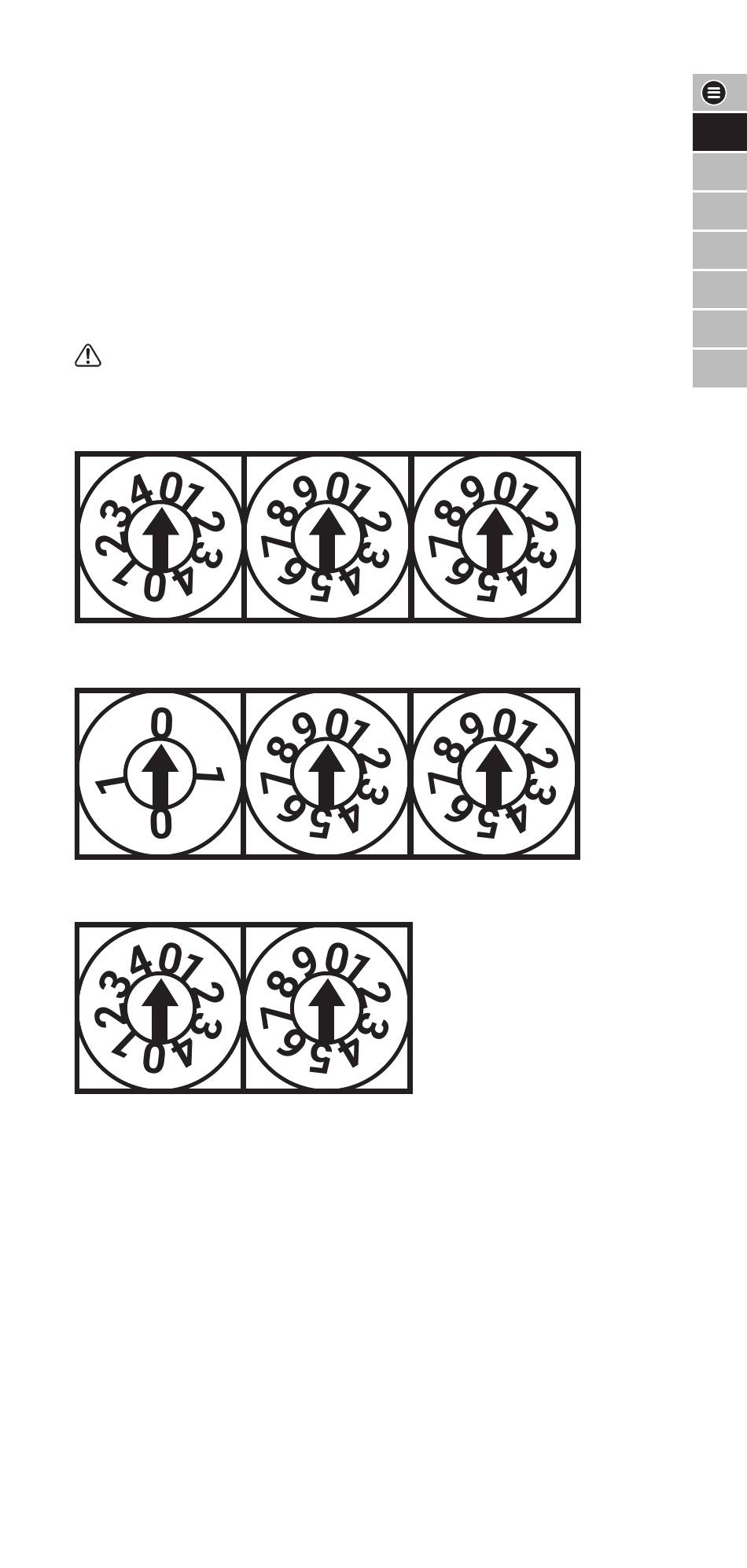

6 Temperature setting dials
If necessary, loosen lid screws and remove lid. Adjust digital switches
to switching temperature (˚C). The switches present the setpoint
temperature in three digits (100, 10, 1). Locate lid and tighten lid screws.
WARNING: Ensure thermostat is isolated elsewhere for a minimum
of 1 minute before opening.
High Temperature version 0˚C - 499˚C
Low Temperature version 0˚C - 199˚C
Ambient version 0˚C - 49˚C
