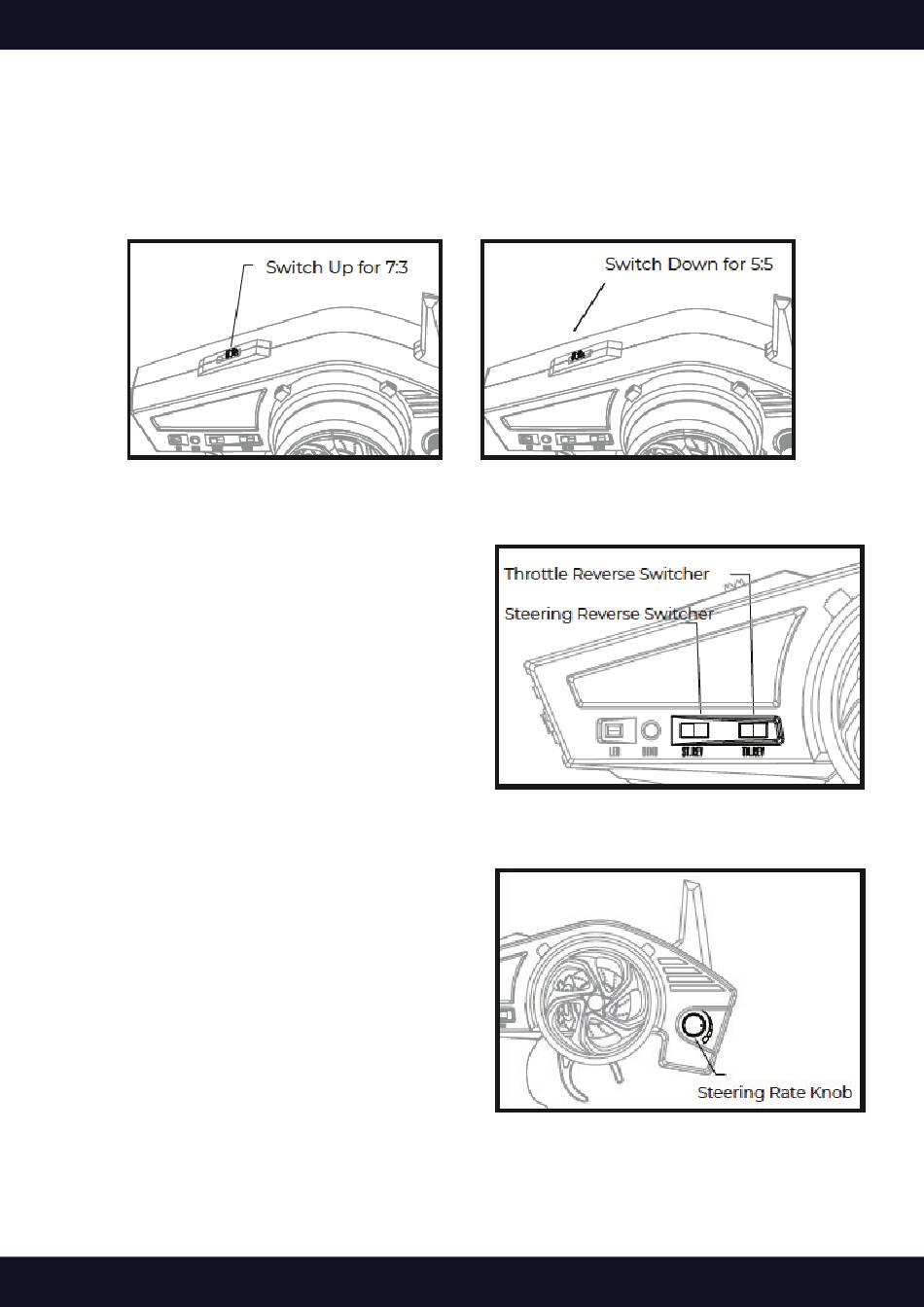

7:3 / 5:5 Switch instruction

Adjust the proportion of throttle signal on either side of the center trigger position. You can
pick which proportion of forward/reverse you prefer. We recommend using the 7:3 position for
most applications.

Servo Reserving Switches

If the durection of travel on the rudder is
backwards, slide the steering reverse switch to
the other position. It is same principle for the
throttle reverse switch.

Steering Rate Knob

Rotating the knob clockwise will give you
greater range in rudder movement.
Counterclockwise will reduce the range of
rudder movement. Adjust to sult your driving
style and preferences.
