3. INSTALLATION AND CONNECTION

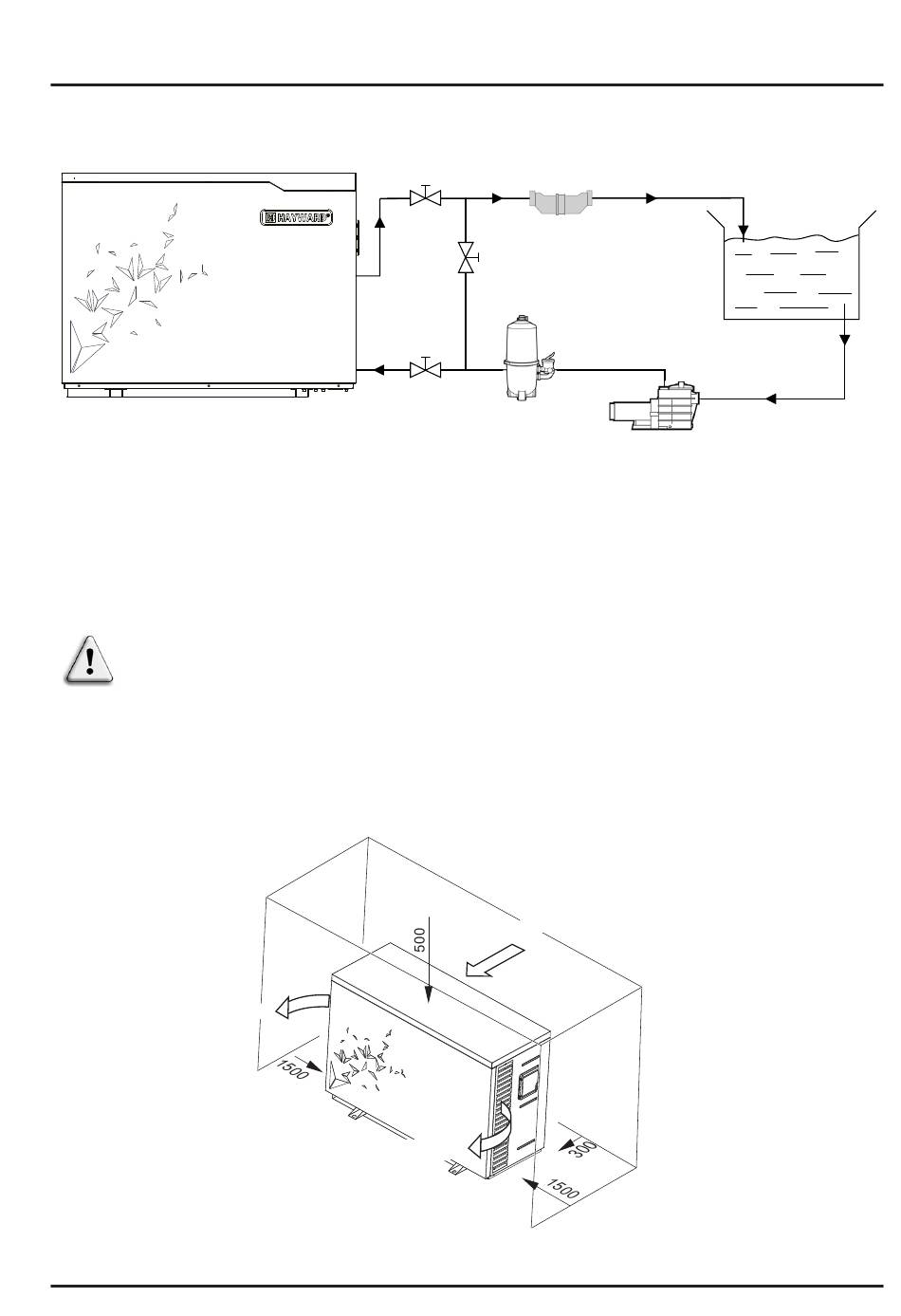

3.1 Functional Diagram

Note: The swimming pool heat pump unit is sold without any treatment or
filtration equipment. The components presented in the diagram are
spare parts to be supplied by the installer.

3.2 Heat pump unit

Place the heat pump outdoors and away from any enclosed technical
space.
Placed under a shelter, the minimum required distances mentioned
below must be respected in order to avoid any risk of air recirculation
and a deficiency in the unit's overall performance.
Unit: mm
Air outlet
Water outlet
Chlorinator cell
valve
(or other treatment)
By-pass
valve
Water Inlet
valve
Filter
Air inlet
Air outlet
Water outlet
Pool
Pump
filtration
7
