4. NOMENCLATURE

4.1.

DESCRIPTION OF THE INSTRUMENT

4.2.

DESCRIPTION OF THE SYMBOLS ON THE DISPLAY

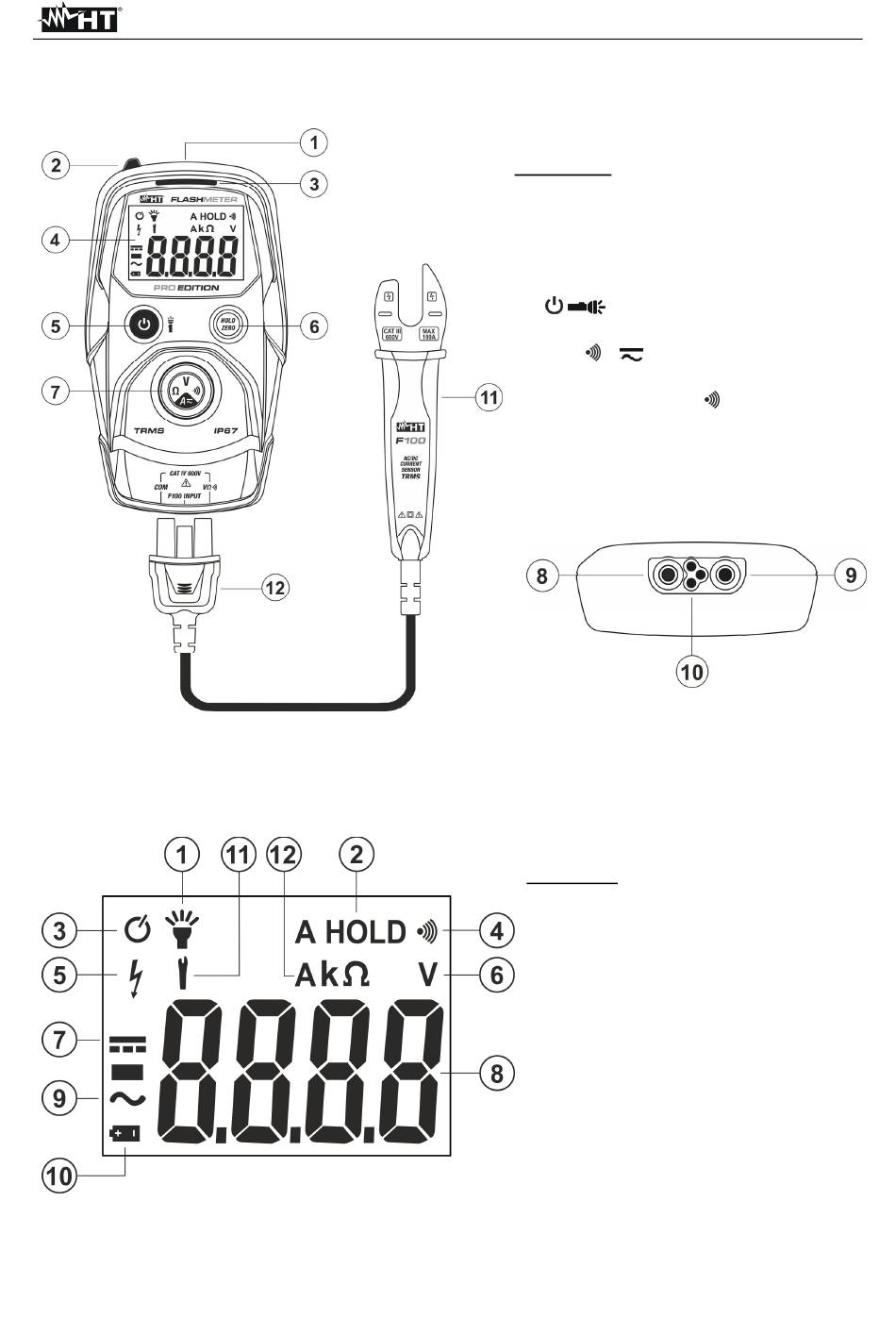

Fig. 1: Description of the instrument
Fig. 2: Description of the symbols on the display
CAPTION:
1. White-light torch
2. NCV sensor
3. Detector of AC voltage without
contact
4. LCD display
5. /
6. HOLD/ZERO key
7. V/Ω/ /A
8. Input terminal COM
9. Input terminal VΩ
10. Input terminal F100
11. F100 fork clamp
12. Input connector for F100 clamp
CAPTION:
1. Activated white-light torch
2. Active A HOLD function
3. Auto Power Off (APO)
4. Activation of continuity test
5. Presence of high voltage
6. Voltage measuring unit
7. DC Voltage and Current
8. LCD display
9. AC Voltage and Current
10. Low battery symbol
11. F100 clamp connected symbol
12. Current measuring unit
