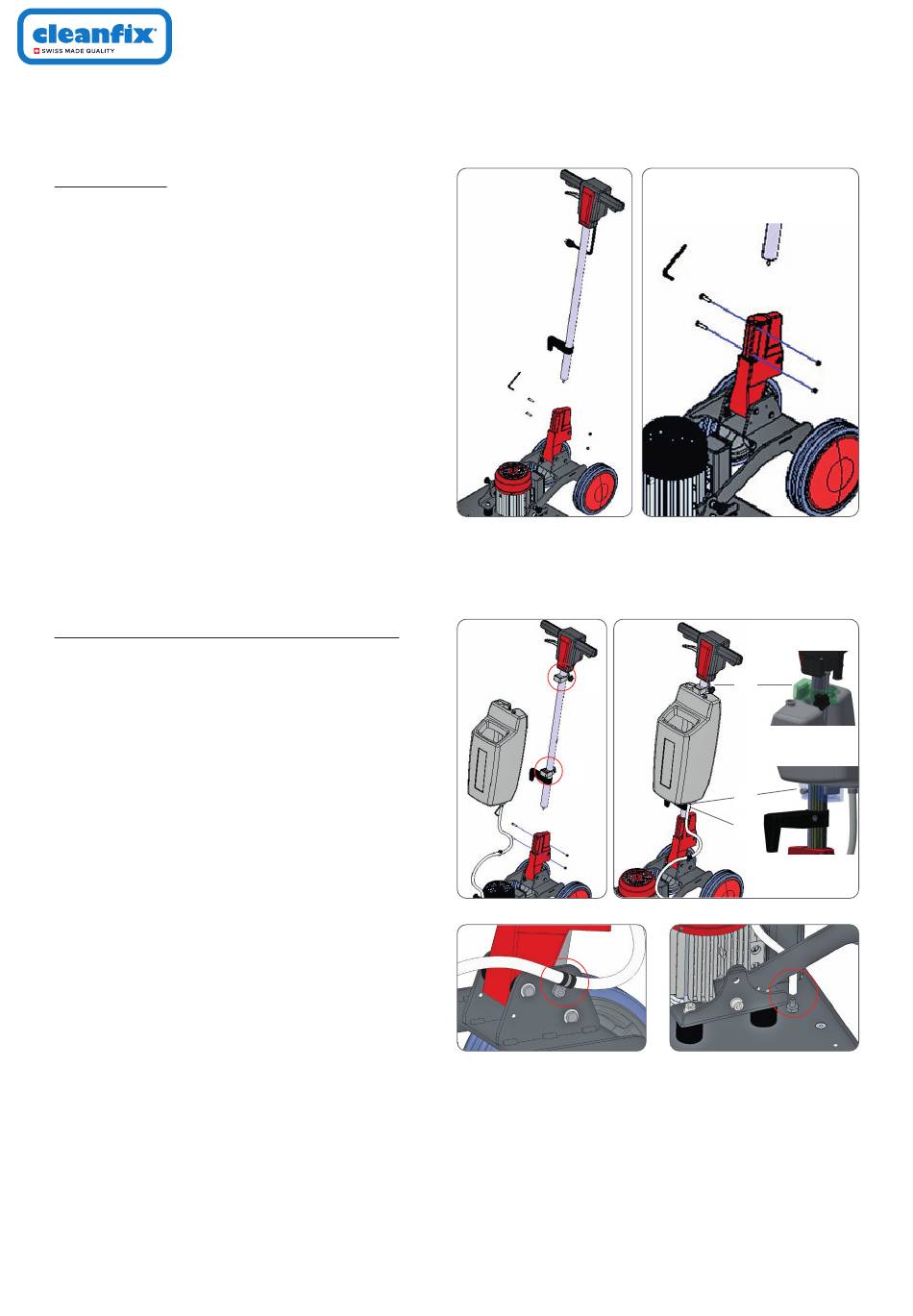

Mounting stem

This assembly is the same for the eccentric E50x35 and E44,
pictured is E50x35.
• Insert the stem into the shaft adjustment unit.
• Tighten the screws with the supplied tighten the screws
with the wrench provided.
• Wrap the power cord over the handle and cord holder.

Mounting of solution tank (optional accessory)

This assembly is the same for the eccentric E50x35 and E44,
pictured is E50x35.
• Insert the solution tank holders ➀ and ➁ and tighten it
(top with knurled nut).
• Insert the solution tank into the solution tank holder ➀.
• Push the solution tank holder ➁ onto the solution tank
and tighten.
• Connect the suction tank hose ➂ to the suction tank.
• Pull the hose through the hose clamp ④ and push it onto the
nipple ➄.
18 |

- MOUNTING -

➁
➁
➀
➀
➂
④
➄
