Step 3
4
2
Components required
Cylindrical pad
components
Screw M5*25

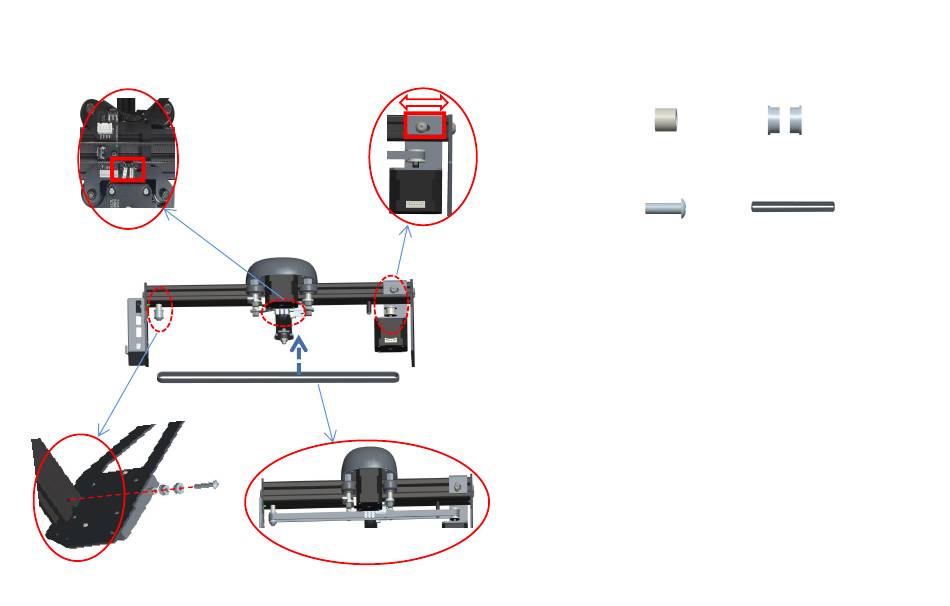

1. As shown in Figure 1, install the cylindrical pad, two
bearings (note the direction), and M5*25 screws along the
dotted line to the Y-axis frame screw holes at the same
time, and tighten the screws with a No. 4 hexagon socket
screwdriver.
2. As shown in Figure 2, install the timing belt into the two
timing wheels in the direction of the arrow.
3. As shown in Figure 3, after the timing belt is installed on
the timing wheel, the two copper heads need to be
buckled into the X-axis frame buckle.
4.As shown in Figure 4. To prevent the timing belt from
being too loose, please loosen the M5*14 screws on both
sides of the Y-axis motor fixing frame, and move the fixing
frame to the right to tension the timing belt.
Bearing*2
Synchronous
belt component
