The camera can work with either 24AC or 12VDC, dual voltage power.
When using a 12VDC or 24VAC power supply please proceed as follows:
• Make sure the power is removed before the installation.
• Follow the order for applying power.
First, connect the low voltage (AC24V or DC12V), then plug the AC adapter to AC
outlets to avoid an improper reset from power jitter and a damage from the surge
voltage when no load. It is strongly required the polarity-matched connection for
12VDC supply, otherwise IR LEDs will not operate.
Primary and secondary grounds are completely isolated to avoid possible ground-
loop problems.
4a. Easy Bracket: Connect hook ⓙ to
peg ⓛ.
5a. Easy Bracket: Fix Bracket Foot ⓓ to
EASY BRACKET by using wrench
bolts through Foot mount Hole (4x)
ⓔ.
6. Set the camera's angle (Pan, Tilt, inclination).
18
4b. Standard Bracket: Match Foot mount
Hole (4x) ⓔ to the drilled position.
5b. Standard Bracket: Fix the bracket by
using Wall fixing screws.

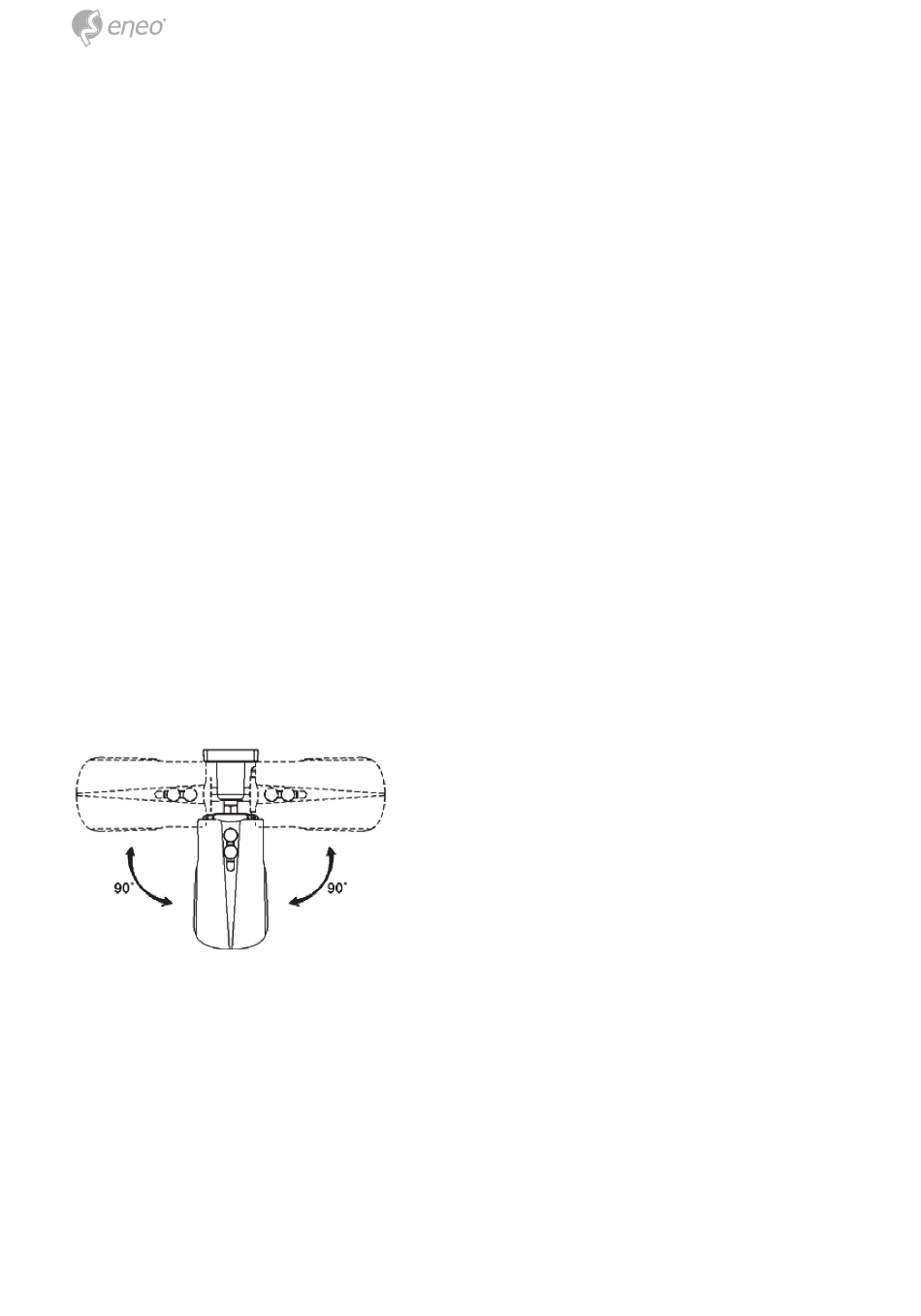

Pan is limited to +/- 90°.
