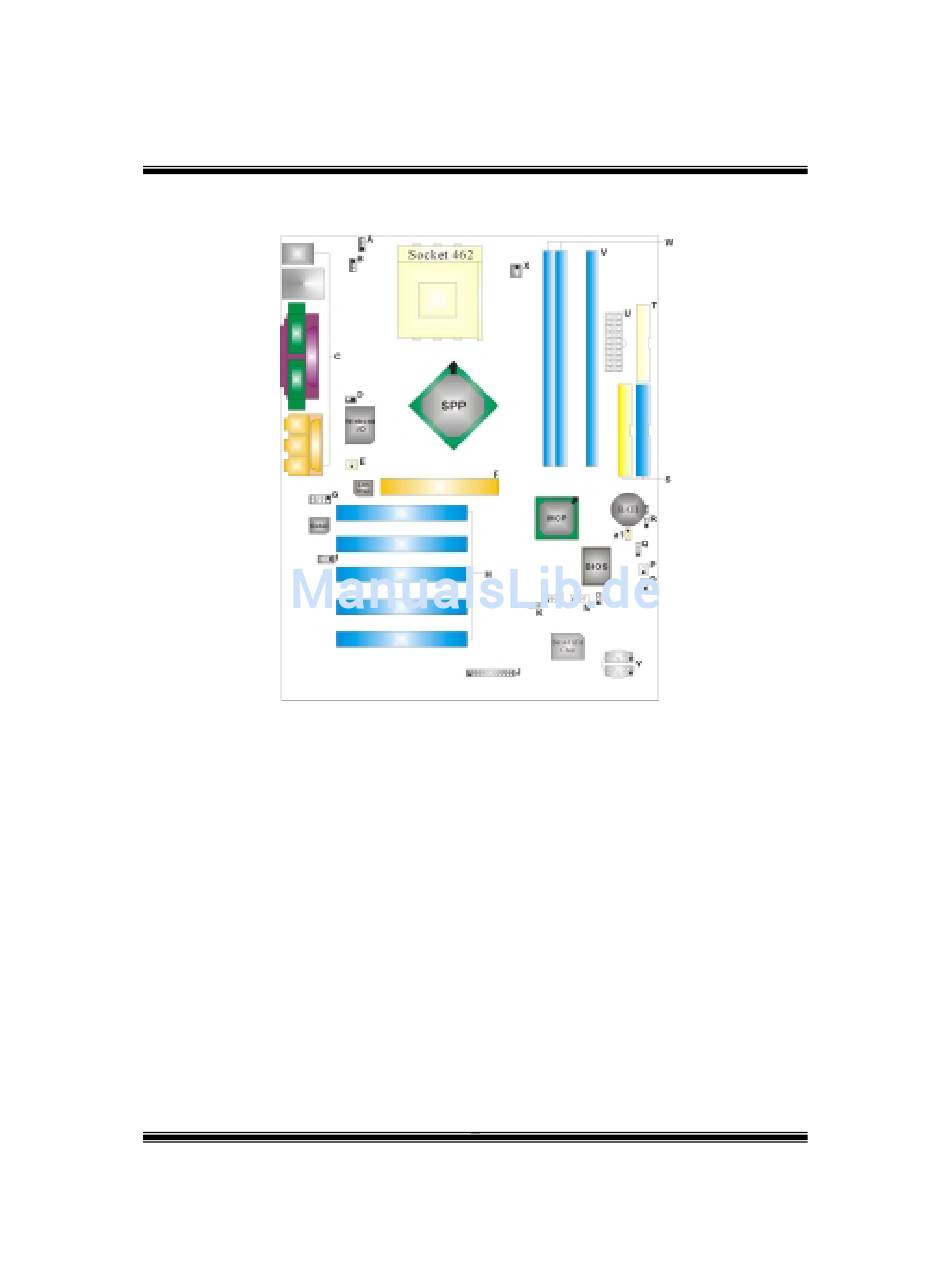

Component Index

A. 5V/5VSB Selection for Keyboard
and mouse (JKBV1)
B. Power Source Selection for USB
(JUSBV2)
C. Back Panel Connector
D. Frequency Selection (JCLK3)
E. North Bridge Fan Header (JNFAN1) Q. Clear CMOS Function (JCMOS)
F. Accelerated Graphics Port Slot
(AGP1)
G. Front Audio Header (JF_AUDIO1)
H. PCI BUS Slots (PCI1-5)
I. CD-ROM Audio-In Header (JCDIN1) V. DIMM Modules (DIMMA1)
J. Front Panel Connector (JPANEL1)
K. Power Source Selection for USB
(JUSBV1)
L. Front USB Header (JUSB1)
M. Front USB Header (JUSB2)
N. Power Source Selection for USB
(JUSBV4)
O. Wake On LAN Header (JWOL1)
P. System FAN Header (JSFAN1)
R. Case Open Connector (JC1)
S. IDE Connectors (IDE1-2)
T. Floppy Disk Connector (FDD1)
U. ATX Power Connector (JATXPWER1)
W. DIMM Modules (DIMMB1-2)
X. CPU Fan Connector (JCFAN1)
Y. Serial ATA Connector (JSATA1-2)
a1. S/PDIF Out Connector (J_SPDIF1)
