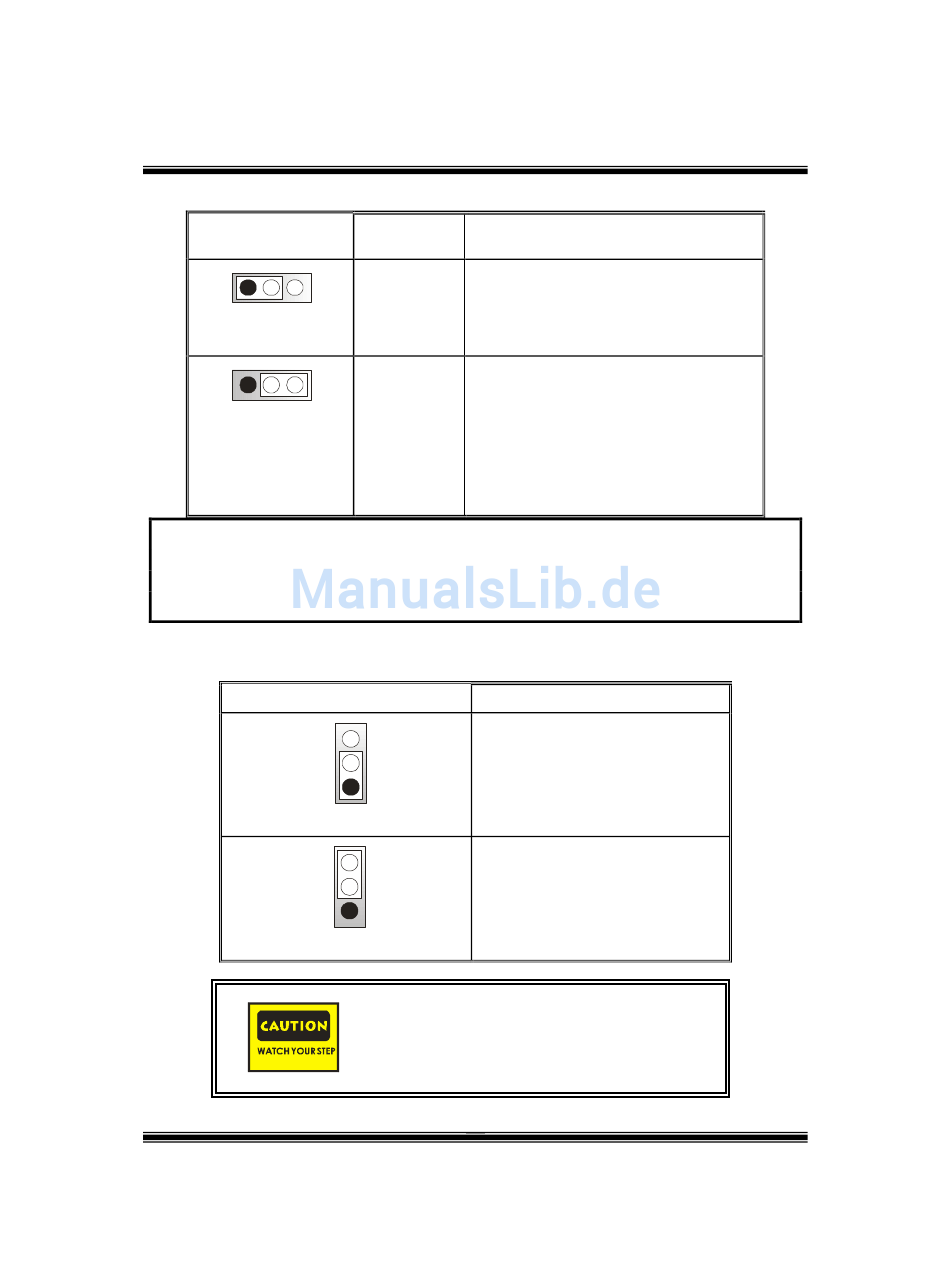

Power Source Selection for USB: JUSBV1/ JUSBV2/ JUSBV4
JUSBV1/JUSBV2/
JUSBV4
1 3
Pin 1-2 close
1 3
Pin 2-3 close
Note: 1. In order to power-on USB devices function, "JUSBV1/JUSBV2/
JUSBV4" jumper cap should be placed on pin 2-3 respectively.
2. For S3 mode, "JUSBV1/ JUSBV2/ JUSBV4" jumper cap should be
placed on pin 2-3 respectively.
Clear CMOS Jumper: JCMOS
JCMOS
3
1
Pin 1-2 Close
3
1
Pin 2-3 Close
Assignment
JUSBV1: 5V for JUSB1 port
+5V
JUSBV2: 5V for JUSBLAN1 port
JUSBV4: 5V for JUSB2 port
JUSBV1: JUSB1 port powered with
+5V Standby
Voltage
JUSBV2: JUSBLAN1 port powered with
JUSBV4: JUSB2 port powered with
Normal Operation (default)
The following procedures are for resetting the
BIOS password. It is important to follow these
instructions closely.
10
Description
standby voltage of 5V
standby voltage of 5V
standby voltage of 5V
Assignment
Clear CMOS Data
