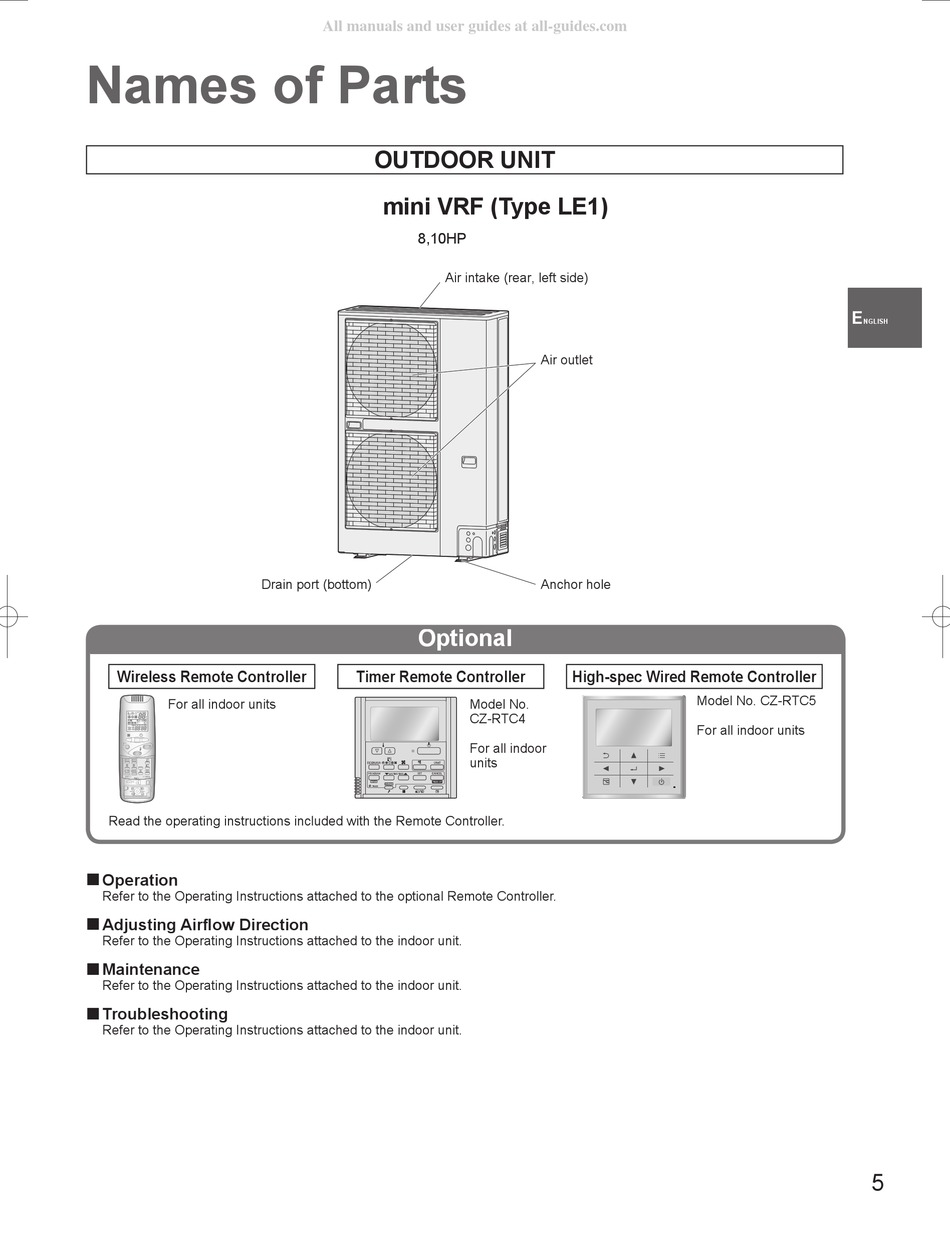

Names of Parts

Drain port (bottom)
Wireless Remote Controller
For all indoor units
Read the operating instructions included with the Remote Controller.
 Operation
Refer to the Operating Instructions attached to the optional Remote Controller.
 Adjusting Airfl ow Direction
Refer to the Operating Instructions attached to the indoor unit.
 Maintenance
Refer to the Operating Instructions attached to the indoor unit.
 Troubleshooting
Refer to the Operating Instructions attached to the indoor unit.
All manuals and user guides at all-guides.com

OUTDOOR UNIT

mini VRF (Type LE1)
8,10HP
Air intake (rear, left side)
Optional
Timer Remote Controller
Model No.
CZ-RTC4
For all indoor
units
A
Air outlet
Anchor hole
High-spec Wired Remote Controller
Model No. CZ-RTC5
For all indoor units
E
