ACTIVE STAGE MONITOR

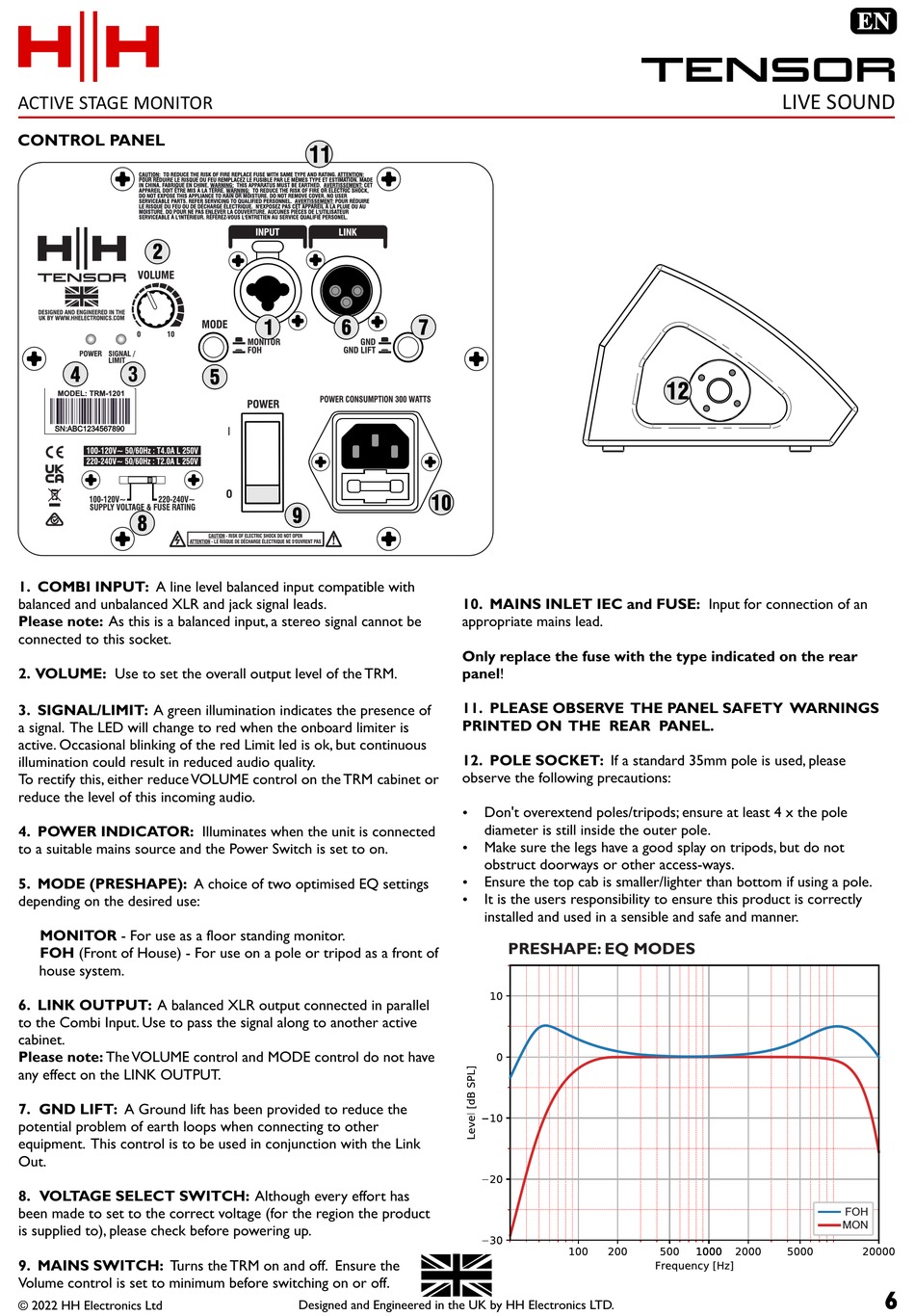

CONTROL PANEL

2
4 3
MODEL: TRM-1201
8
1. COMBI INPUT: A line level balanced input compatible with
balanced and unbalanced XLR and jack signal leads.
Please note: As this is a balanced input, a stereo signal cannot be
connected to this socket.
2. VOLUME: Use to set the overall output level of the TRM.
3. SIGNAL/LIMIT: A green illumination indicate the presence of
a signal. The LED will change to red when the onboard limiter is
active. Occasional blinking of the red Limit led is ok, but continuous
illumination could result in reduced audio quality.
To rectify this, either reduce VOLUME control on the TRM cabinet or
reduce the level of this incoming audio.
4. POWER INDICATOR: Illuminates when the unit is connected
to a suitable mains source and the Power Switch is set to on.
5. MODE (PRESHAPE): A choice of two optimised EQ settings
depending on the desired use:
MONITOR - For use as a floor standing monitor.
FOH (Front of House) - For use on a pole or tripod as a front of
house system.
6. LINK OUTPUT: A balanced XLR output connected in parallel
to the Combi Input. Use to pass the signal along to another active
cabinet.
Please note: The VOLUME control and MODE control do not have
any effect on the LINK OUTPUT.
7. GND LIFT: A Ground lift has been provided to reduce the
potential problem of earth loops when connecting to other
equipment. This control is to be used in conjunction with the Link
Out.
8. VOLTAGE SELECT SWITCH: Although every effort has
been made to set to the correct voltage (for the region the product
is supplied to), please check before powering up.
9. MAINS SWITCH: Turns the TRM on and off. Ensure the
Volume control is set to minimum before switching on or off.
© 2022 HH Electronics Ltd
11
1 6
5
9
s
Designed and Engineered in the UK by HH Electronics LTD.
7
10
10. MAINS INLET IEC and FUSE: Input for connection of an
appropriate mains lead.
Only replace the fuse with the type indicated on the rear
panel!
11. PLEASE OBSERVE THE PANEL SAFETY WARNINGS
PRINTED ON THE REAR PANEL.
12. POLE SOCKET: If a standard 35mm pole is used, please
observe the following precautions:
Ÿ Don't overextend poles/tripods; ensure at least 4 x the pole
diameter is still inside the outer pole.
Ÿ Make sure the legs have a good splay on tripods, but do not
obstruct doorways or other access-ways.
Ÿ Ensure the top cab is smaller/lighter than bottom if using a pole.
Ÿ It is the users responsibility to ensure this product is correctly
installed and used in a sensible and safe and manner.
PRESHAPE: EQ MODES
LIVE SOUND
12
EN
FOH
MON
