Inhaltszusammenfassung für HH Electronics TSM-10A

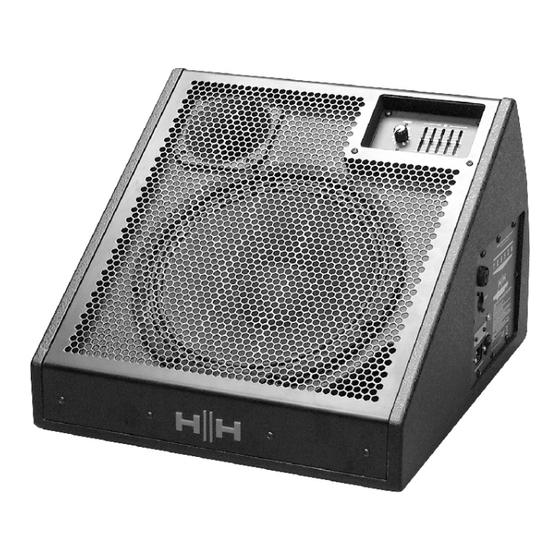

- Seite 1 ACTIVE STAGE MONITOR TSM-10A TSM-12A TSM-15A WWW.HHELECTRONICS.COM...
- Seite 2 CONTENTS 2 Important Safety Instructions 3. Instructions Importantes De Securite - Français 4. Wichtige Sicherheitshinweise - Deusch 5. Instrucciones Importantes Para Su Seguridad Español 6. Important Safety Instructions Pt 2 7. Foreword 8. Introduction 9. TSM Front Panel 11. TSM Side Panel 12.
-
Seite 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions safe. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. - Seite 4 INSTRUCTIONS IMPORTANTES DE SECURITE - FRANÇAIS ATTENTION: L’utilisation de tout appareil électrique doit être soumise aux precautions d’usage incluant: 1. Lire ces instructions 2. Gardez ce manuel pour de futures références. 3. Prétez attention aux messages de précautions de ce manuel. 4.
- Seite 5 WICHTIGE SICHERHEITSHINWEISE - DEUSCH ACHTUNG: Beim Einsatz von Elektrogeräten müssen u.a. grundlegende Vorsichtsmaßnahmen befolgt werden:durch. 1. Lesen Sie sich diese Anweisungen 2. Bewahren Sie diese Anweisungen auf. 3. Beachten Sie alle Warnungen. 4. Befolgen Sie alle Anweisungen. 5. Setzen Sie dieses Gerät nicht in der Nähe von Wasser ein. 6.
- Seite 6 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD - ESPAÑOL CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: 1. Lea estas instrucciones. 2. Guarde estas instrucciones. 3. Haga caso de todos los consejos. 4. Siga todas las instrucciones. 5. No usar este aparato cerca del agua. 6.
- Seite 7 IMPORTANT SAFETY INSTRUCTIONS PT 2 Intended to alert the user to the presence of uninsulated ‘Dangerous Voltage’ within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons. Ce symbole est utililise pur indiquer a l’utilisateur de ce produit de tension non-isolee dangereuse pouvant etre d’intensite suffisante pour constituer un risque de choc electrique.
- Seite 8 To register your purchase, leave your feedback and learn more about other HH products please visit us at: www.HHelectronics.com Thanks again. HH Electronics Designed and engineered with Head & Heart in the United Kingdom...
-
Seite 9: Unpacking
INTRODUCTION The TSM range of active monitors have been designed and voiced specifically for all stage monitoring applications including electric and acoustic instruments, vocals and drums, and for DJ use. Cabinets, horns, drive units and crossovers have been optimised to provide clarity and detail in a focused field. Simple but effective controls allow intuitive adjustment of the powerful amplifier stages. -
Seite 10: Power Led
TSM SERIES FRONT PANEL TSM SERIES FRONT PANEL POWER VOLUME PEAK 3.4K 1. POWER LED: Illuminates when the unit is connected to the mains supply and switched on. 2. VOLUME CONTROL: Adjusts the overall level available from the monitor. 3. PEAK LED: Illuminates just before the amplifier begins to clip and distort. Adjust the level control and signal level from your source so this illuminates only briefly on peaks in the music. - Seite 11 TSM SERIES SIDE PANEL TSM SERIES SIDE PANEL INPUT LINK OUT Designed with Head & Heart in the UK WWW.HHELECTRONICS.COM CAUTION: TO REDUCE THE RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING. ATTENTION: POUR RÉDUIRE LE RISQUE DU FEU REMPLACEZ LE FUSIBLE PAR LE MÊMES TYPE ET ESTIMATION.
- Seite 12 TSM SERIES SETUP DIAGRAM TSM SERIES SETUP DIAGRAM Line level signals can be connected to the input using a balanced or unbalanced XLR or a 6.3mm jack. The input signal can be supplied to another device through a Male XLR in the Link Active Monitor Link Active Monitor...
- Seite 13 USEFUL HINTS AND TIPS USEFUL HINTS AND TIPS All speakers should be balanced and steady. If stacked strap them together to improve stability. Don't overextend poles/tripods; ensure at least 4 x the pole diameter is still inside the outer pole. Make sure the legs have a good splay on tripods, but do not obstruct doorways or other access-ways Ensure the top cab is smaller/lighter than bottom if using a pole.
- Seite 14 BLOCK DIAGRAM & SPECIFICATIONS Link Combi Input XLR/M 1" CD Preamp Output Stage 5 Band Volume Graphic EQ Passive 2 way crossover Internal loudspeaker TSM-110A TSM-112A TSM-115A 4 Ohm power 200W RMS 200W RMS Frequency Response 65Hz-20kHz 76Hz-20kHz Sensitivity (1W@1m) 97dB 97dB 96dB...
- Seite 15 WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country. In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification.
