Inhaltszusammenfassung für schellenberg Smart Home

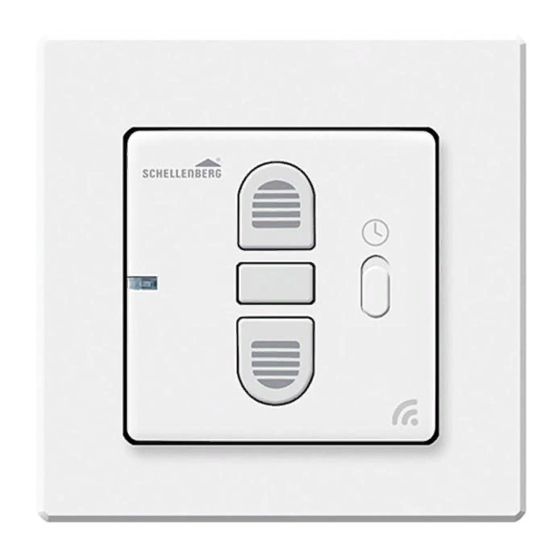

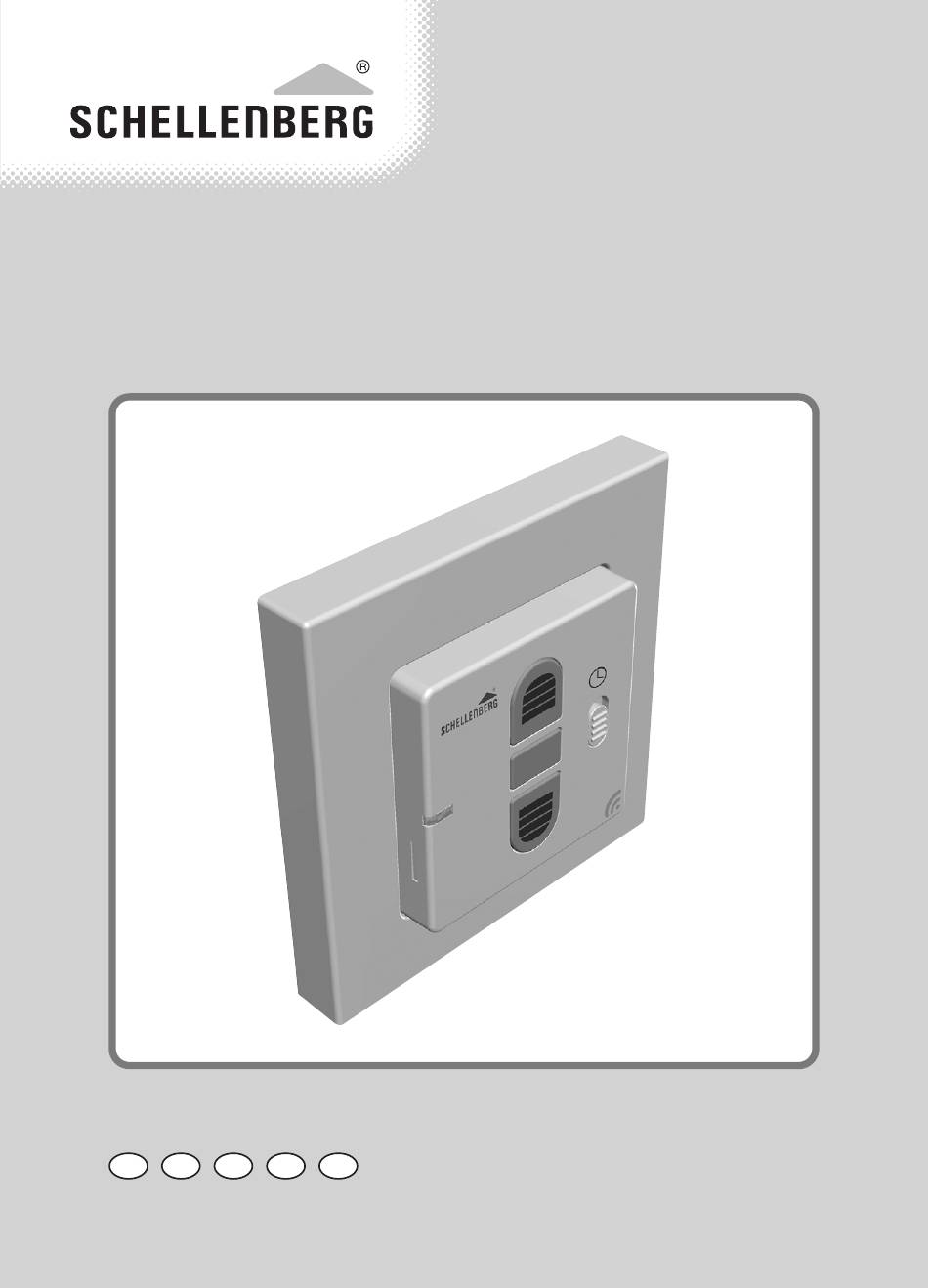

  • Seite 1 Smart Home...
  • Seite 3 deutsch ���������������������������������������������������������������������������������������� english ����������������������������������������������������������������������������������������� français ���������������������������������������������������������������������������������������� nederlands ���������������������������������������������������������������������������������� polski ������������������������������������������������������������������������������������������� italiano ����������������������������������������������������������������������������������������� español ���������������������������������������������������������������������������������������� português ������������������������������������������������������������������������������������ český ������������������������������������������������������������������������������������������� slovenčina ����������������������������������������������������������������������������������� magyar ���������������������������������������������������������������������������������������� hrvatski ���������������������������������������������������������������������������������������� slovenski jezik ����������������������������������������������������������������������������� român ������������������������������������������������������������������������������������������ български �����������������������������������������������������������������������������������...
  • Seite 4 Zwischenlage setzen (optional) ����������������������������������������������� Zwischenlage löschen ������������������������������������������������������������� Zwischenlage anfahren ������������������������������������������������������������ Urheberrechtlich geschützt, 2021, Alfred Schellenberg GmbH� Alle Rechte vorbehalten� Jede vom Urheberrechtsgesetz nicht zugelassene Verwertung, insbesondere Verviel- fältigung, Übersetzung, Verarbeitung bzw� Weitergabe von Inhalten in Datenbanken oder anderen elektronischen Medien und Systemen, ist verboten�...
  • Seite 5: Sicherheit Und Hinweise

    SICHERHEIT UND HINWEISE Sehr geehrte Kundin, sehr geehrter Kunde, bitte lesen Sie vor der Montage und Inbetriebnahme diese Anleitung vollständig durch� Beachten Sie alle Sicherheitshinweise, bevor Sie mit den Arbeiten beginnen� Bewahren Sie die Anleitung auf und weisen Sie jeden Benutzer auf eventuelle Gefahren hin, die im Zusammenhang mit diesem Produkt stehen�...
  • Seite 6: Bestimmungsgemässe Verwendung

    Die über das Produkt betriebenen Rollladenanlagen müssen in einem einwandfreien Zustand sein� Für Folgeschäden, Sachschäden und Personenschäden bei nicht bestimmungsgemäßer Verwendung haftet die Alfred Schellenberg GmbH nicht� Der Betrieb des Produktes in der Nähe von Geräten mit magne- tischer Strahlung oder metallischen Flächen beeinträchtigt die störungsfreie Funktion�...
  • Seite 7: Eu-Konformitätserklärung

    20036) erfüllt die geltenden Anforderungen der europäischen und nationalen Richtlinien� Die Konformität wurde nachgewiesen� Der vollstän- dige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: http://www.schellenberg.de (Menü- punkt „Service“ im Download-Center) Funkanlagenrichtlinie 2014/53/EU (RED) RoHS-Richtlinie 2011/65/EU Nicht im Hausmüll entsorgen! Das Produkt ist recycling- fähig und kann im Wertstoffhof oder an einer anderen...
  • Seite 8: Technische Daten

    TECHNISCHE DATEN Sendefrequenz 868,4 MHz Schellenberg Reichweite Freifeld bis zu 150 Meter Reichweite im Gebäude bis zu 20 Meter Spannungsversorgung 3 Volt DC Batterietyp CR 2450 Schutzart IP 20 Umgebungstemperatur 0° – 50° Celsius Die baulichen Gegebenheiten können die Reichweite...
  • Seite 9: Led-Anzeige

    LEGENDE SYMBOLE Taste Auffahrt Rollladen / Markise fährt nach oben / aus� Schiebeschalter Zeitautomatik Rollladen fährt zu programmier- ten Zeiten oder wird manuell betrieben� Taste Stopp Stoppt die Auf- / Abfahrt des Rohrmotors� Taste Abfahrt Rollladen / Markise fährt nach unten / ein� LED-Anzeige Blinkt während der Programmierung�...
  • Seite 10: Kopplung Smart Home System

    KOPPLUNG SMART HOME SYSTEM Koppeln Sie das Produkt mit dem Schellenberg Smart Home System oder dem Smart Friends System und benutzen Sie alle Schellenberg Funk-Produkte bzw� „Ready für Smart Friends“-Produkte über eine App miteinander� SCHELLENBERG SMART HOME SYSTEM www�schellenberg�de/SH1/ Art�Nr� 21000...
  • Seite 11 Intermediate position deletion �������������������������������������������������� Intermediate position approach ������������������������������������������������ Copyright protected, 2021 Alfred Schellenberg GmbH� All rights reserved� Any use, in particular reproduction, translation, processing or transmission of content into data- bases or other electronic media and systems beyond the authorization provided by the...
  • Seite 12: Safety And Notices

    SAFETY AND NOTICES Dear customers, Please completely read this instruction manual before the installation and commissioning� Observe all safety instructions before you begin to work� Keep the inst- ruction manual stored at hand and advise each user about possible dangers that are related to this product� When ownership to this product changes, hand this instruction manual over to the new owner�...
  • Seite 13: Intended Use

    The roller shutter systems which are operated with the product must be in a flawless condition. Alfred Schellenberg GmbH shall not be liable for any conse- quential damage, property damage and personal injury due to improper use�...
  • Seite 14: Eu Declaration Of Conformity

    20036) meets the applicable requirements of European and national regulations� Conformity has been demonstrated� The full EU Declaration of Conformity document can be found at: http://www.schellenberg. de (under ‘Download-Center’, in the ‘Service’ tab)� Radio Equipment Directive 2014/53/EU (RED) RoHS Directive 2011/65/EU Do not dispose of together with household waste�...
  • Seite 15: Technical Data

    TECHNICAL DATA Transmission frequency 868,4 MHz Schellenberg Range in the open field up to 150 meters Range within buildings up to 20 meters Power supply 3 Volt DC Battery type CR 2450 Protection class IP 20 Ambient temperature 0° – 50° Celsius The structural conditions affect the range and function of the wireless timer�...
  • Seite 16 LEGEND SYMBOLS Open button Shutter/awning moves upwards/ extends� Sliding switch automatic timer The roller shutter will move during the programmed times or is operated manually� stop button Stops the up/down movement of the tubular motor� Close button Shutter/awning moves down- wards/retracts�...
  • Seite 17 PAIRING WITH SMART HOME SYSTEM Pair the product with the Smart Friends System, and control all „Ready for Smart Friends“ products through the Friends app� www�smart-friends�com...
  • Seite 18 Effacer le point intermédiaire �������������������������������������������������������������� S‘approcher du point intermédiaire ���������������������������������������������������� Soumis au droit d‘auteur, 2021, Alfred Schellenberg GmbH� Tous droits réservés� Interdiction de toute utilisation non autorisée par le droit d‘auteur, et notamment de la reproduction, de la traduction, de la transformation ou de la transmission des contenus...
  • Seite 19: Sécurité Et Consignes

    SÉCURITÉ ET CONSIGNES Chers clients, chères clientes, Veuillez lire cette notice complètement avant le montage et la mise en service� Respectez toutes les consignes de sécurité avant de commencer les travaux� Conservez cette notice et indiquez à chaque utilisateur les éventuels dangers en liaison avec ce produit� En cas de changement de propriétaire, transmettez cette notice également au nouveau propriétaire�...
  • Seite 20: Utilisation Conforme

    Les volets roulants commandés par le biais du produit doivent être dans un état parfait� L‘entreprise Alfred Schellenberg GmbH ne garantit pas les dommages matériels, corporels et consécutifs résultant d‘une utilisation non conforme�...
  • Seite 21: Déclaration De Conformité Ue

    La conformité a été prouvée� Le texte complet de la déclaration de conformité UE est disponible à l’adresse sui- vante : http://www.schellenberg.de (élément de menu « Service » dans la plateforme de téléchargement)� Radio Equipment Directive 2014/53/EU (RED) RoHS Directive 2011/65/EU Non smaltire insieme ai rifiuti domestici! Il prodotto è...
  • Seite 22: Caractéristiques Techniques

    CARACTÉRISTIQUES TECHNIQUES Fréquence de transmission 868,4 MHz Schellenberg Portée sur terrain jusqu‘à 150 mètres Portée un bâtiment jusqu‘à 20 mètres Alimentation en tension 3 Volt DC Type de batterie CR 2450 Type de protection IP 20 Température ambiante 0° – 50° Celsius Les bâtiments autour du site d‘utilisation sont suscep-...
  • Seite 23: Légende Des Symboles

    LÉGENDE DES SYMBOLES Touche Montée Le volet roulant / le store se déplace vers le haut / sort� Commutateur à glissière de l‘automatisme horaire Le volet roulant se déplace aux moments programmés ou doit être actionné manuellement Toutche Arrêt Stoppe le déplacement vers le haut / vers le bas du moteur tubulaire�...
  • Seite 24 COUPLAGE AVEC LE SYSTÈME SMART HOME Coupler le produit avec le système Smart Friends et gérer tous les produits « Ready for Smart Friends » à l‘aide de l‘application Friends� www�smart-friends�com...
  • Seite 25 Ustawianie pozycji pośredniej (opcja) ������������������������������������������������������ Kasowanie pozycji pośredniej ������������������������������������������������������������������ Dosuw do pozycji pośredniej �������������������������������������������������������������������� Chronione prawami autorskimi, 2021, Alfred Schellenberg GmbH� Zabronione jest wszelkie wykorzystanie niezgodne z Ustawą o prawie autorskim, w szczególności powielanie, tłumaczenie, przetwarzanie lub przekazywanie treści w bazach danych lub...
  • Seite 26: Bezpieczeństwo I Wskazówki

    BEZPIECZEŃSTWO I WSKAZÓWKI Szanowna Klientko, Szanowny Kliencie Przed montażem i uruchomieniem dokładnie przec- zytaj niniejszą instrukcję. Przestrzegaj wszystkich zasad bezpieczeństwa przed przystąpieniem do pracy. Zachowaj tę instrukcję oraz informuj każdego użytkownika o ewentualnych zagrożeniach związanych z używaniem produktu. Przy każdej zmianie właściciela przekaż niniejszą...
  • Seite 27: Użycie Zgodne Z Przeznaczeniem

    Instalacje roletowe sterowane przez produkt muszą znajdować się w nienagannym stanie. Alfred Schellenberg GmbH nie odpowiada za szkody następcze, szkody materialne i osobowe, spowodowane użyciem niezgod- nym z przeznaczeniem� Używanie ręcznego pilota radiowego w pobliżu urządzeń...
  • Seite 28: Deklaracja Zgodności Ue

    20031, 20036) spełnia obowiązujące wymogi określone normami europejskimi i krajowymi. Zgodność została udokumentowana. Cały tekst deklaracji zgodności UE jest dostępny pod adresem: http://www.schellenberg.de (punkt menu „Service” w zakładce z materiałami do pobrania). Radio Equipment Directive 2014/53/EU (RED) RoHS Directive 2011/65/EU Nie wyrzucać...
  • Seite 29: Dane Techniczne

    DANE TECHNICZNE Częstotliwość transmisji 868,4 MHz Schellenberg Zasięg na wolnej przestrzeni do 150 metrów Zasięg w budynku do 20 metrów Zasilanie napięciowe 3 Volt DC Typ baterii CR 2450 Stopień ochrony IP 20 Temperatura otoczenia 0° – 50° Celsius Warunki budowlane mogą mieć negatywny wpływ na zasięg i działanie radiowego programatora zegaro-...
  • Seite 30: Legenda Symboli

    LEGENDA SYMBOLI Przycisk podnoszenia Roleta/markiza przesuwa się do góry/wysuwa się. Przełącznik suwakowy stero- wania czasowego Roleta przesuwa się w zapro- gramowanych porach lub jest obsługiwana ręcznie. Przycisk stop Zatrzymuje jazdę do góry i na dół silnika rurowego. Przycisk opuszczania Roleta/markiza przesuwa się do dołu/wsuwa się.
  • Seite 31 SPRZĘŻENIE Z SYSTEMEM SMART HOME Produkt można skojarzyć z systemem Smart Friends i sterować wszystkimi produktami „Ready for Smart Friends” razem przez aplikację Friends. www�smart-friends�com...
  • Seite 32 Cancellazione della posizione intermedia ��������������������������������������� Raggiungimento della posizione intermedia ����������������������������������� Protetto da copyright, 2021, Alfred Schellenberg GmbH� Tutti i diritti riservati� È vietato qualsiasi tipo di utilizzo diverso da quello previsto dai diritti d’autore, in particolare la copia, la traduzione, l’elaborazione o la trasmissione dei contenuti in database o altri...
  • Seite 33: Avvertenze Di Sicurezza

    SICUREZZA ED AVVERTENZE Gentile cliente, prima di procedere al montaggio e all‘utilizzo dell‘apparecchio si prega di leggere attentamente le istruzioni� Rispettare tutte le avvertenza prima di procedere con i lavori� Conservare le istruzioni ed informare eventuali utenti sui rischi correlati all’uso del presente prodotto�...
  • Seite 34: Uso Conforme

    Gli avvolgibili controllati dal prodotto devono trovarsi in uno stato perfetto� La Alfred Schellenberg GmbH non si assume alcuna responsa- bilità per danni conseguenti, danni a persone e cose nel caso di un impiego diverso rispetto a quello previsto�...
  • Seite 35: Dichiarazione Di Conformità Ue

    La conformità è stata comprovata� Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo: http://www.schellenberg.de (voce menu “Service” nel Centro download)� Radio Equipment Directive 2014/53/EU (RED) RoHS Directive 2011/65/EU Non smaltire insieme ai rifiuti domestici! Il prodotto è...
  • Seite 36: Dati Tecnici

    DATI TECNICI Frequenza di trasmissione 868,4 MHz Schellenberg Portata all’aperto fino a 150 metri Portata nell’edificio fino a 20 metri Alimentazione della tensione 3 Volt DC Tipo batterie CR 2450 Tipo di protezione IP 20 Temperatura ambiente 0° – 50° Celsius Le costruzioni presenti possono pregiudicare la porta- ta e il funzionamento del timer via radio�...
  • Seite 37 LEGENDA DEI SIMBOLI Tasto Salita L’avvolgibile / marquise si sposta verso l’alto / esterno� Selettore scorrevole automa- tismo a tempo L’avvolgibile si attiva a orari pro- grammati oppure viene azionato manualmente� Tasto Stop Arresta lo spostamento in salita / discesa del motore tubolare� Tasto Discesa L’avvolgibile / marquise si sposta verso il basso / interno�...
  • Seite 38 ACCOPPIAMENTO SISTEMA SMART HOME Collegare il prodotto con il sistema Smart Friends e controllate tra loro tutti i prodotti „Ready for Smart Friends“ tramite l’applica- zione Friends� www�smart-friends�com...
  • Seite 39 6 mm...
  • Seite 40 6 mm...
  • Seite 45 5 sec 230 V, 50 Hz...
  • Seite 46 1x = 1� 2x = 2� 3x = 3� 4x = 4� 5x = 5� 1- 5x...
  • Seite 48 1x = 1� 2x = 2� 3x = 3� 4x = 4� 1- 5x 5x = 5� 1- 5x...
  • Seite 52 90 % 100 %...
  • Seite 54 90 % 100 %...
  • Seite 57 100 %...
  • Seite 58 max�...
  • Seite 63 z�B� 1x/24 h...
  • Seite 64 z�B� 1x/24 h...
  • Seite 65 1x/24 h...
  • Seite 66 1x/24 h...
  • Seite 68 1- 5x...
  • Seite 71 5 sec 230 V, 50 Hz 1-11. 12-39.
  • Seite 73 1x = 1� 2x = 2� 3x = 3� 4x = 4� 5x = 5�...
  • Seite 74 2 sec...
  • Seite 76 z�B� 60 %...
  • Seite 77 100 %...
  • Seite 79 60 %...
  • Seite 80 Per la garanzia, pezzi di ricambio o informazioni sulle operazioni di montaggio corrette del prodotto, si prega di contattare il servizio di assistenza clienti� service.int@schellenberg.de Alfred Schellenberg GmbH An den Weiden 31 57078 Siegen www.schellenberg.de...
