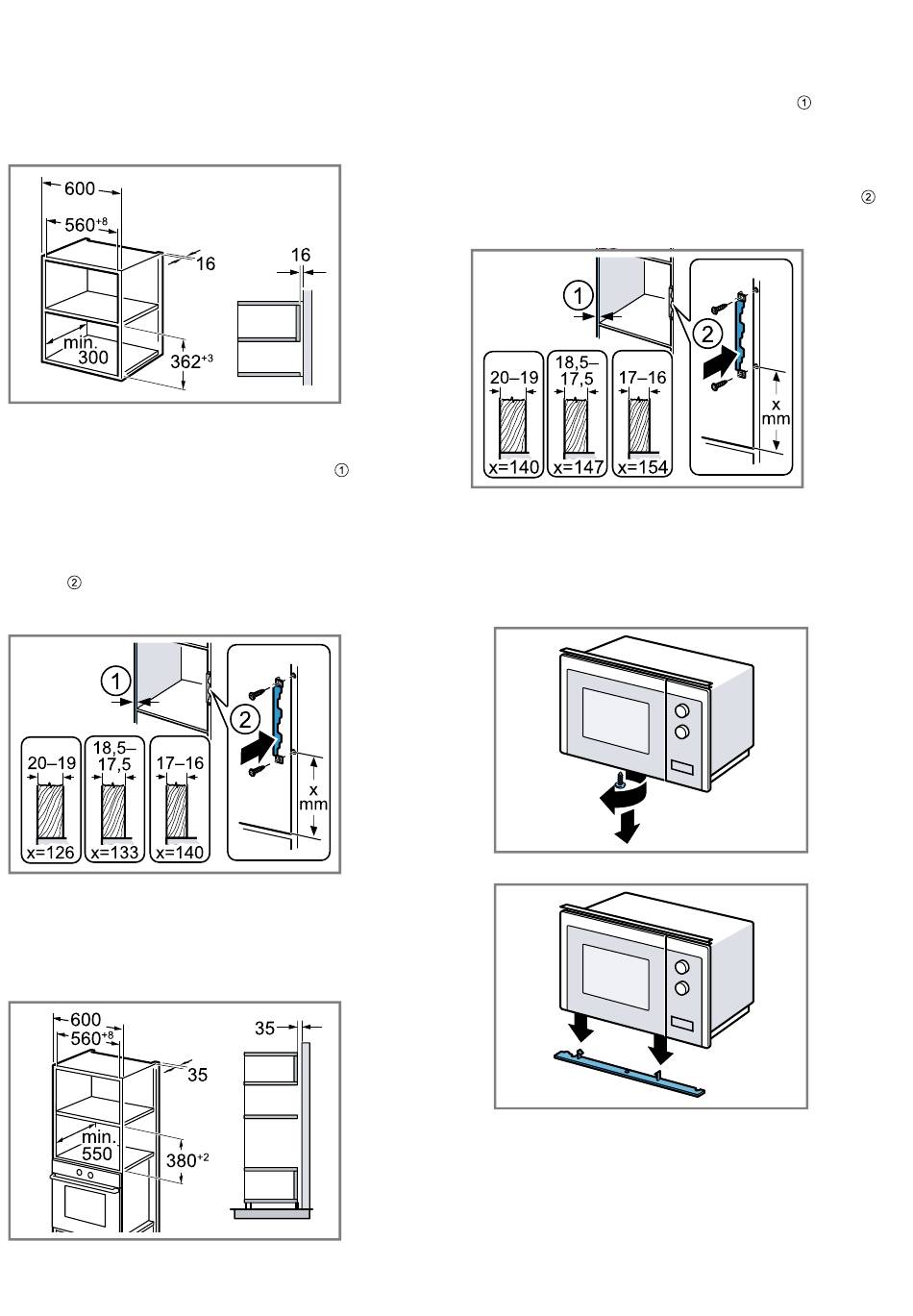

15.5 Installation dimensions in the upper
cabinet
Observe the installation dimensions and the safety
clearances in an upper cabinet.
15.6 Preparing the upper cabinet
Determine the wall thickness of the unit.
1.
An x-value is assigned to the wall thickness.
Note: The x-value corresponds to the distance
2.
between the lower edge of the connection plate and
the bottom of the fitted unit.
Screw the connection plate tightly into the upper
unit.
When doing so, observe the x-value that was de-
termined.
15.7 Installation dimensions in the tall
unit
Observe the installation dimensions and the safety
clearances in a tall unit.
15.8 Preparing the tall unit
Determine the wall thickness of the unit.
1.
An x-value is assigned to the wall thickness.
Note: The x-value corresponds to the distance
2.
between the lower edge of the connection plate and
the bottom of the fitted unit.
Screw the connection plate tightly to the tall unit.
When doing so, observe the x-value that was de-
termined.
15.9 Preparing the appliance
If you install your appliance in a tall unit, you must pre-
pare the appliance.
Remove the middle screw on the base of the mi-
1.
crowave.
Remove the cover at the base of the microwave.
2.
Installation instructions en
41
