Produktbeschreibung
MD10(P)-FTL-HE, MD10P-FTL-HE-B-x

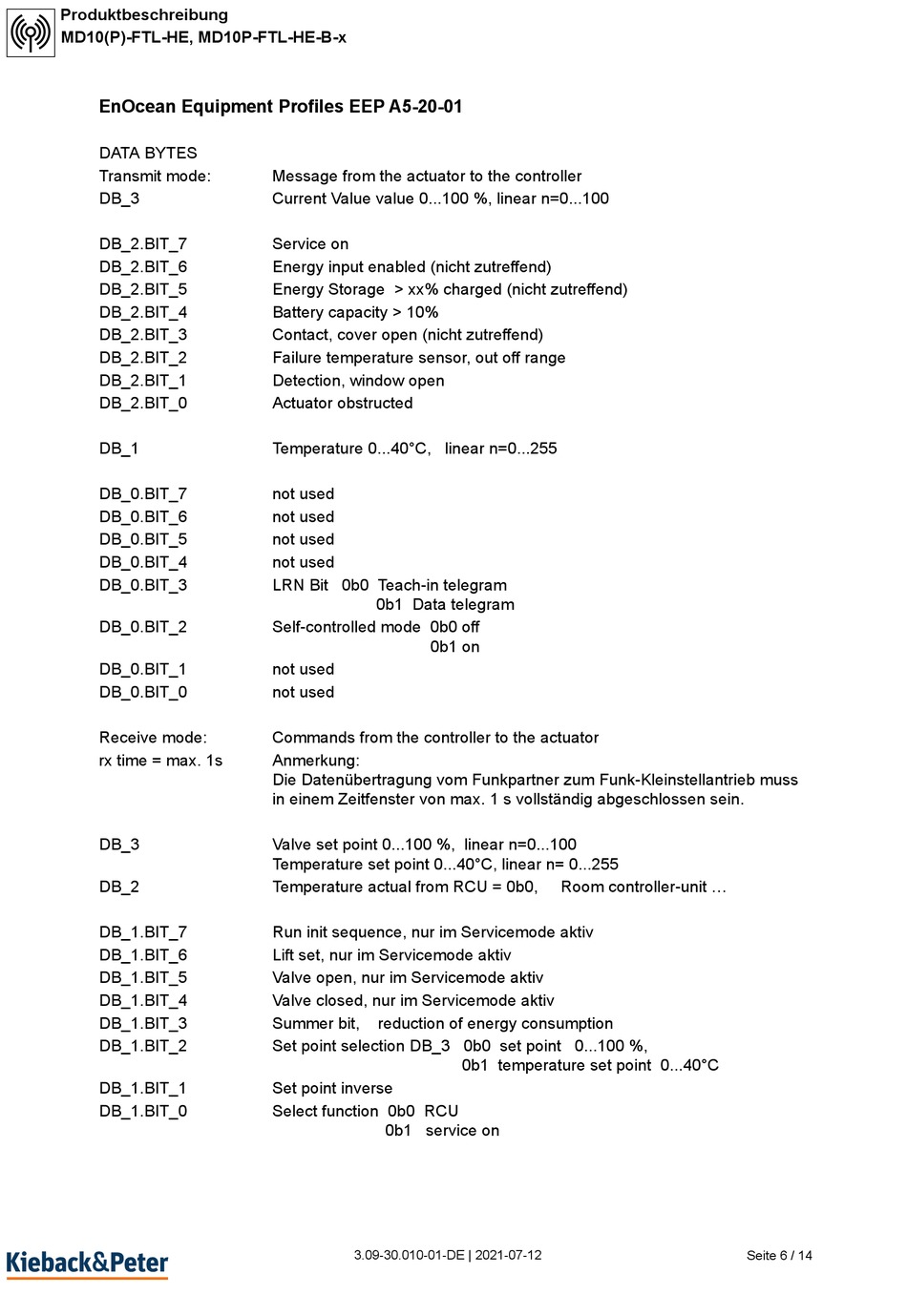

EnOcean Equipment Profiles EEP A5-20-01

DATA BYTES
Transmit mode:
DB_3
DB_2.BIT_7
DB_2.BIT_6
DB_2.BIT_5
DB_2.BIT_4
DB_2.BIT_3
DB_2.BIT_2
DB_2.BIT_1
DB_2.BIT_0
DB_1
DB_0.BIT_7
DB_0.BIT_6
DB_0.BIT_5
DB_0.BIT_4
DB_0.BIT_3
DB_0.BIT_2
DB_0.BIT_1
DB_0.BIT_0
Receive mode:
rx time = max. 1s
DB_3
DB_2
DB_1.BIT_7
DB_1.BIT_6
DB_1.BIT_5
DB_1.BIT_4
DB_1.BIT_3
DB_1.BIT_2
DB_1.BIT_1
DB_1.BIT_0
Message from the actuator to the controller
Current Value value 0...100 %, linear n=0...100
Service on
Energy input enabled (nicht zutreffend)
Energy Storage > xx% charged (nicht zutreffend)
Battery capacity > 10%
Contact, cover open (nicht zutreffend)
Failure temperature sensor, out off range
Detection, window open
Actuator obstructed
Temperature 0...40°C, linear n=0...255
not used
not used
not used
not used
LRN Bit 0b0 Teach-in telegram
0b1 Data telegram
Self-controlled mode 0b0 off
0b1 on
not used
not used
Commands from the controller to the actuator
Anmerkung:
Die Datenübertragung vom Funkpartner zum Funk-Kleinstellantrieb muss
in einem Zeitfenster von max. 1 s vollständig abgeschlossen sein.
Valve set point 0...100 %, linear n=0...100
Temperature set point 0...40°C, linear n= 0...255
Temperature actual from RCU = 0b0,
Run init sequence, nur im Servicemode aktiv
Lift set, nur im Servicemode aktiv
Valve open, nur im Servicemode aktiv
Valve closed, nur im Servicemode aktiv
Summer bit, reduction of energy consumption
Set point selection DB_3 0b0 set point 0...100 %,
Set point inverse
Select function 0b0 RCU
0b1 service on
3.09-30.010-01-DE | 2021-07-12
Room controller-unit ...
0b1 temperature set point 0...40°C
Seite 6 / 14
