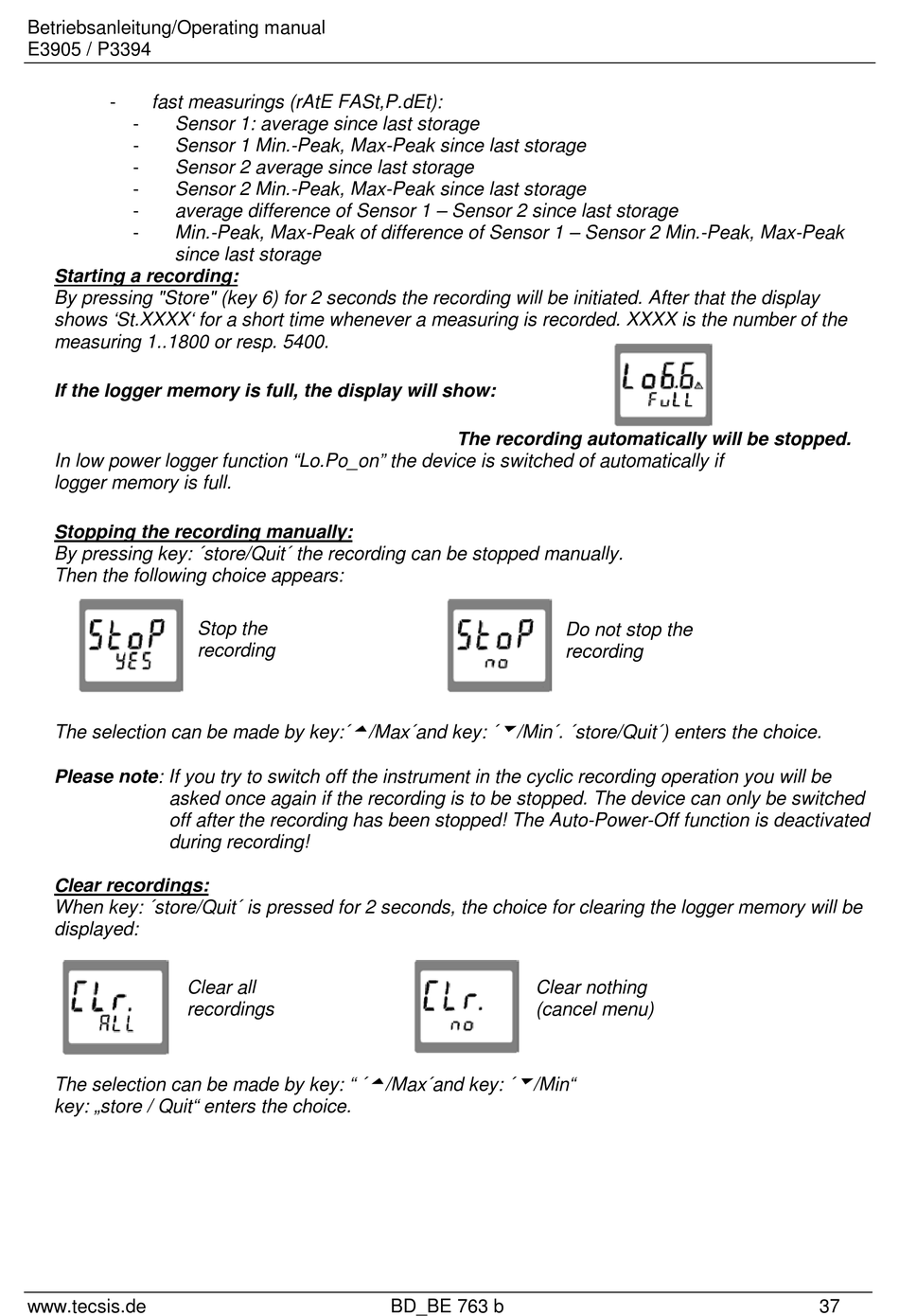

Tecsis E3905 Betriebsanleitung Seite 37

Betriebsanleitung/Operating manual
E3905 / P3394
- fast measurings (rAtE FASt,P.dEt):
- Sensor 1: average since last storage
- Sensor 1 Min.-Peak, Max-Peak since last storage
- Sensor 2 average since last storage
- Sensor 2 Min.-Peak, Max-Peak since last storage
- average difference of Sensor 1 – Sensor 2 since last storage
- Min.-Peak, Max-Peak of difference of Sensor 1 – Sensor 2 Min.-Peak, Max-Peak
since last storage
Starting a recording:
By pressing "Store" (key 6) for 2 seconds the recording will be initiated. After that the display
shows 'St.XXXX' for a short time whenever a measuring is recorded. XXXX is the number of the
measuring 1..1800 or resp. 5400.
If the logger memory is full, the display will show:
In low power logger function "Lo.Po_on" the device is switched of automatically if
logger memory is full.
Stopping the recording manually:
By pressing key: ´store/Quit´ the recording can be stopped manually.
Then the following choice appears:
The selection can be made by key:´
Please note: If you try to switch off the instrument in the cyclic recording operation you will be
asked once again if the recording is to be stopped. The device can only be switched
off after the recording has been stopped! The Auto-Power-Off function is deactivated
during recording!
Clear recordings:
When key: ´store/Quit´ is pressed for 2 seconds, the choice for clearing the logger memory will be
displayed:
Clear all
recordings
The selection can be made by key: " ´
key: „store / Quit" enters the choice.
www.tecsis.de
Stop the
recording


The recording automatically will be stopped.

/Max´and key: ´ /Min´. ´store/Quit´) enters the choice.
Clear nothing
(cancel menu)

/Max´and key: ´ /Min"
BD_BE 763 b
Do not stop the
recording
37
