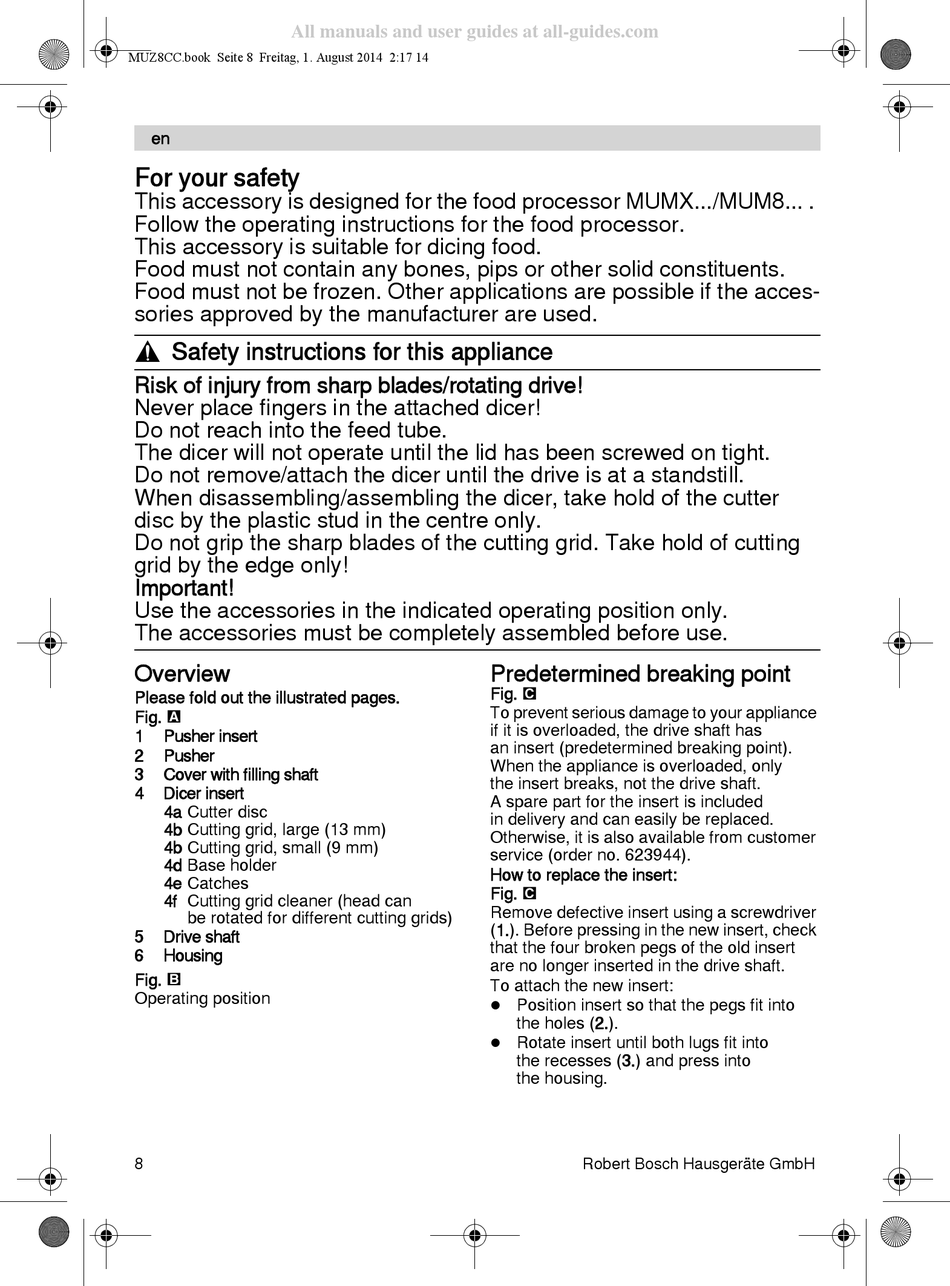

en
For your safety
This accessory is designed for the food processor MUMX.../MUM8... .
Follow the operating instructions for the food processor.
This accessory is suitable for dicing food.
Food must not contain any bones, pips or other solid constituents.
Food must not be frozen. Other applications are possible if the acces-
sories approved by the manufacturer are used.
, Safety instructions for this appliance
Risk of injury from sharp blades/rotating drive!
Never place fingers in the attached dicer!
Do not reach into the feed tube.
The dicer will not operate until the lid has been screwed on tight.
Do not remove/attach the dicer until the drive is at a standstill.
When disassembling/assembling the dicer, take hold of the cutter
disc by the plastic stud in the centre only.
Do not grip the sharp blades of the cutting grid. Take hold of cutting
grid by the edge only!
Important!
Use the accessories in the indicated operating position only.
The accessories must be completely assembled before use.
Overview
Please fold out the illustrated pages.
Fig. 
1 Pusher insert
2 Pusher
3 Cover with filling shaft
4 Dicer insert
4a Cutter disc
4b Cutting grid, large (13 mm)
4b Cutting grid, small (9 mm)
4d Base holder
4e Catches
4f Cutting grid cleaner (head can
be rotated for different cutting grids)
5 Drive shaft
6 Housing
Fig. 
Operating position
8

Predetermined breaking point

Fig. 
To prevent serious damage to your appliance
if it is overloaded, the drive shaft has
an insert (predetermined breaking point).
When the appliance is overloaded, only
the insert breaks, not the drive shaft.
A spare part for the insert is included
in delivery and can easily be replaced.
Otherwise, it is also available from customer
service (order no. 623944).
How to replace the insert:
Fig. 
Remove defective insert using a screwdriver
(1.). Before pressing in the new insert, check
that the four broken pegs of the old insert
are no longer inserted in the drive shaft.
To attach the new insert:
Position insert so that the pegs fit into

the holes (2.).
Rotate insert until both lugs fit into

the recesses (3.) and press into
the housing.
