Setting the speed level

The pump has three power levels.
The set level is shown in the display by these three bars.
The more bars that are displayed, the higher the set output
Level 1 corresponds to 80% speed
Level 2 corresponds to 90% speed
Level 3 corresponds to full speed
Setting the speed control:
Press the menu button „ " at the bottom left to enter the selection mode, press Press the „+"
„-" button until the „Speed" menu item is displayed. Press the „OK" button to To get to the level
setting, press the „+" „-" button for the level setting. Finally press the OK button. „Speed"
fl ashes and switches after approx. 10 seconds the pump to normal operation. The desired level is
now set.

8 Installation

The circulating pump is installed in the pipeline and as a rule, directly upstream of the service
water reservoir in such a way that the water from the last tap is pumped back to the reservoir
through the circulating pipeline. A check valve must be installed on the pump's discharge side
(primary side) to prevent pump backfl ow when the tap is opened. Assemble the pump with the
horizontally positioned pump motor when the power is shut off (the arrow on the pump housing
shows the direction of fl ow). Ensure when performing the heat insulation work that the pump
motor and the electronic housing are not insulated. The temperature sensor has to be mounted
on the return fl ow pipe ( circulation pipe ).

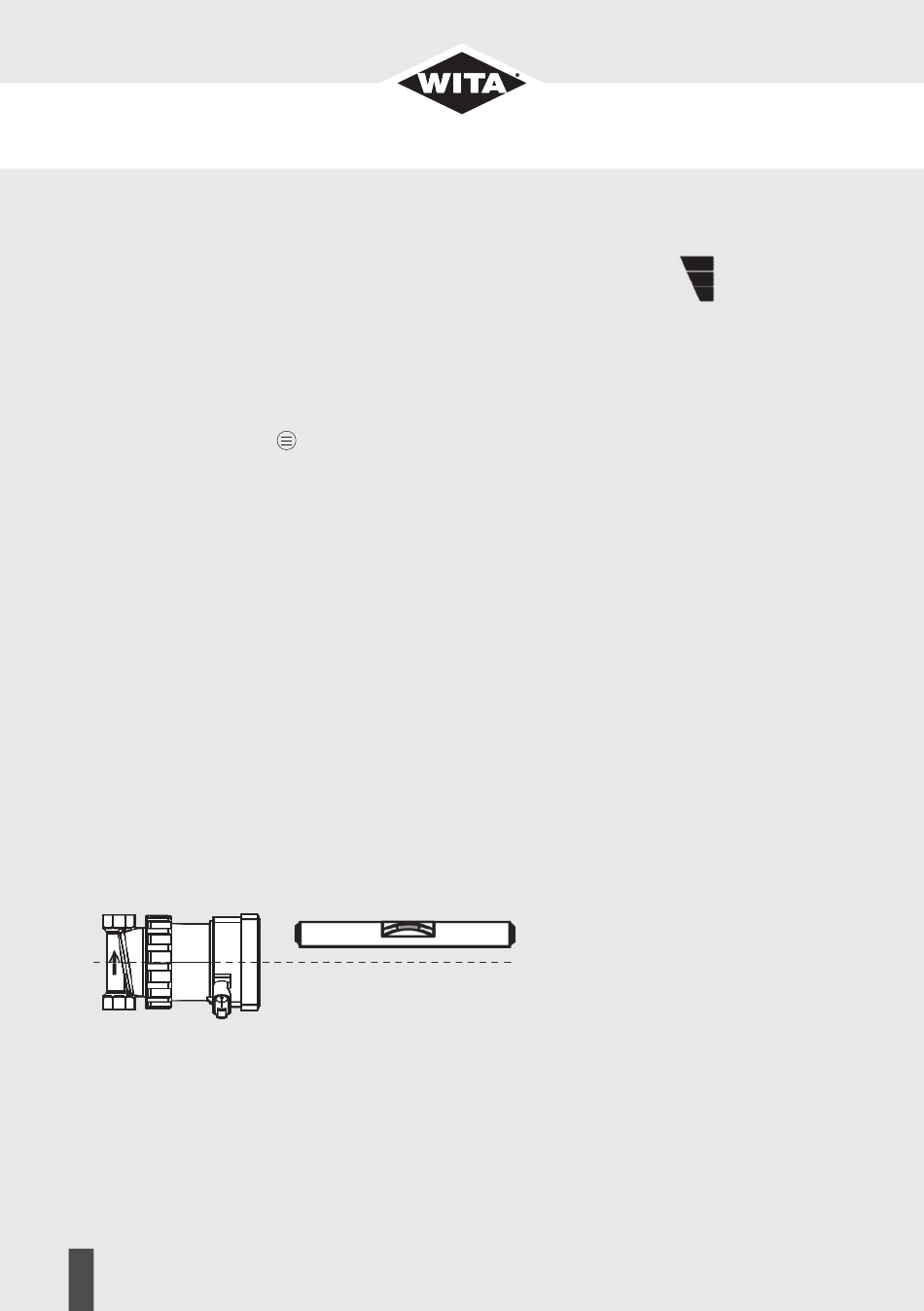

Fig. 1
Install the device with the power supply disconnected and with the pump motor lying horizontal-
ly (the arrow on the pump housing shows the direction of fl ow)(Fig. 1).
When performing insulation work, ensure that the pump motor and the electronics housing are
not covered in insulation.
Observe the permissible mounting positions:
