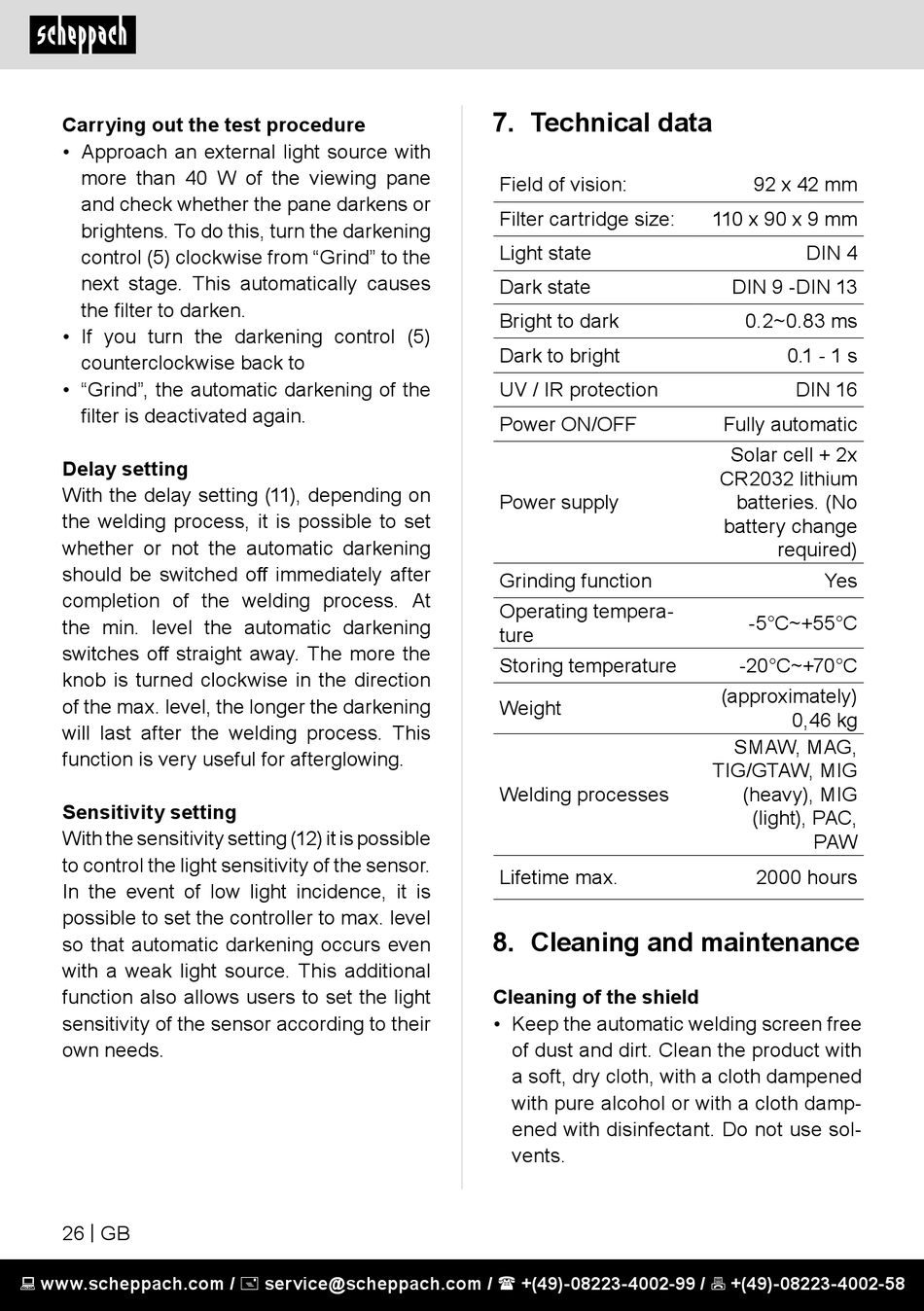

Carrying out the test procedure
• Approach an external light source with
more than 40 W of the viewing pane
and check whether the pane darkens or
brightens. To do this, turn the darkening
control (5) clockwise from "Grind" to the
next stage. This automatically causes
the filter to darken.
• If you turn the darkening control (5)
counterclockwise back to
• "Grind", the automatic darkening of the
filter is deactivated again.
Delay setting
With the delay setting (11), depending on
the welding process, it is possible to set
whether or not the automatic darkening
should be switched off immediately after
completion of the welding process. At
the min. level the automatic darkening
switches off straight away. The more the
knob is turned clockwise in the direction
of the max. level, the longer the darkening
will last after the welding process. This
function is very useful for afterglowing.

Sensitivity setting

With the sensitivity setting (12) it is possible
to control the light sensitivity of the sensor.
In the event of low light incidence, it is
possible to set the controller to max. level
so that automatic darkening occurs even
with a weak light source. This additional
function also allows users to set the light
sensitivity of the sensor according to their
own needs.
26 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

7. Technical data

Field of vision:
Filter cartridge size:
Light state
Dark state
Bright to dark
Dark to bright
UV / IR protection
Power ON/OFF
Power supply
Grinding function
Operating tempera-
ture
Storing temperature
Weight
Welding processes
Lifetime max.

8. Cleaning and maintenance

Cleaning of the shield
• Keep the automatic welding screen free
of dust and dirt. Clean the product with
a soft, dry cloth, with a cloth dampened
with pure alcohol or with a cloth damp-
ened with disinfectant. Do not use sol-
vents.
92 x 42 mm
110 x 90 x 9 mm
DIN 4
DIN 9 -DIN 13
0.2~0.83 ms
0.1 - 1 s
DIN 16
Fully automatic
Solar cell + 2x
CR2032 lithium
batteries. (No
battery change
required)
Yes
-5°C~+55°C
-20°C~+70°C
(approximately)
0,46 kg
SMAW, MAG,
TIG/GTAW, MIG
(heavy), MIG
(light), PAC,
PAW
2000 hours
