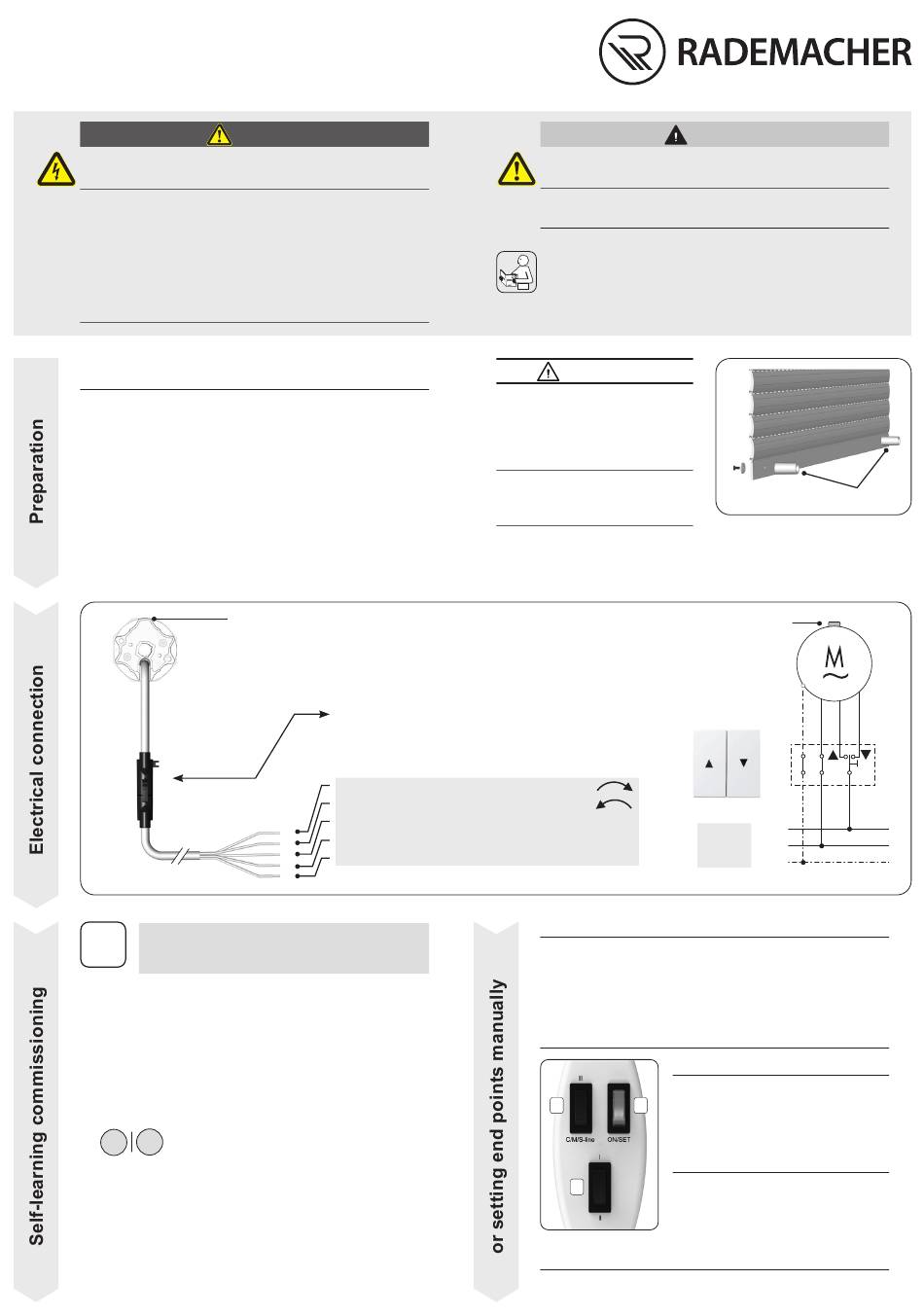

RADEMACHER RolloTube M-line Small Kurzanleitung Zur Montage- Und Erstinbetriebnahme Seite 3

RolloTube M-line
Brief instructions for installation and initial commissioning
Risk of fatal electric shock when touching electrical
components.
◆ The electrical connection of the tubular motor and all work
on the electrical systems may only be undertaken by an
authorised qualified electrician.
◆ Carry out all installation and connection work only in an
isolated, de-energised state.
◆ Disconnect all phases of the mains power lead and se-
cure it to prevent any reconnection.
◆ Check that the system is de-energised.
Requirements for the correct execution of the
following function:
Self-learning operation:
◆ Stopper or end rail on the last slat.
◆ The driver adapter must be mounted with a freewheel mech-
anism. Ties and shaft connectors are both possible here.
◆ If the drive adapter is mounted without the freewheel mech-
anism, then rigid shaft connectors are required for installa-
tion of the roller shutter.
Obstacle detection:
◆ The driver adapter must be mounted with a freewheel
mechanism.
Shutter length compensation:
◆ The upper end point must be learned automatically.
The roller shutter must be equipped with stop-
i
pers or an end rail in order to use the RolloTube
M-line, see "Preparation".
The RolloTube M-line tubular motors are self-learning motors
with a smooth stop at both end positions. This eliminates the
need to set the end points or a teach-in run.
1.
Switch on the mains power supply.
The RolloTube M-line is ready for operation immediately.
2.
Move the roller shutter up and down.
▲ t
The end positions for the smooth stop are
automatically learned during the first drive
cycles.
3.
Subsequently check the direction of travel of the roller
shutter. Switch the lines for the rotation direction if the
direction of travel is wrong.
DANGER!
Set button
Connect the motor cable to the connecting
cable (2.5 m) supplied by means of a connec-
tor and make the connection according to the
following wiring configuration.
Black
Brown
Blue
Green/yellow (d) = PE protective terminal
Grey
* The grey line should be connected to the neutral terminal.
Risk of crushing injuries to the hand when working with
the roller shutter box open.
◆ Never reach into the area of the winding shaft when the
motor is running.
Before you begin, please read this detailed operating
manual of the RolloTube M-line through completely and
follow all the safety instructions and installation instructions.
ATTENTION!
The roller shutter may run
into the roller shutter box in
self-learning mode and be
damaged without stoppers or
end rails.
◆ Always fit two stoppers or an
end-rail to the lowest slat of the
roller shutter.
(a) = L1 direction of travel 1
(b) = L1 direction of travel 2
(c) = N neutral terminal
= no function *
Initial installation
At the initial installation, the roller shutter engineer can carry
out the end point setting with the help of the set button on the
motor or with a commercially available universal setting cable,
see operating manual of the RolloTube M-line.
Universal setting cable
2
1
Cord-switch setting unit
See operating manual of the RolloTube M-line.
CAUTION!
Set button
Roller shutter
button
d c
L1
230 V ~
N
50 Hz
PE
Pin assignment:
The universal setting cable is
connected with the same colours as
3
the motor connecting cable of the
RolloTube M-line, see above.
Button assignment:
Button 1 = direction of travel 1 / 2
Button 2 = set button
Button 3 = no function
Stopper
a b
