Seite 1

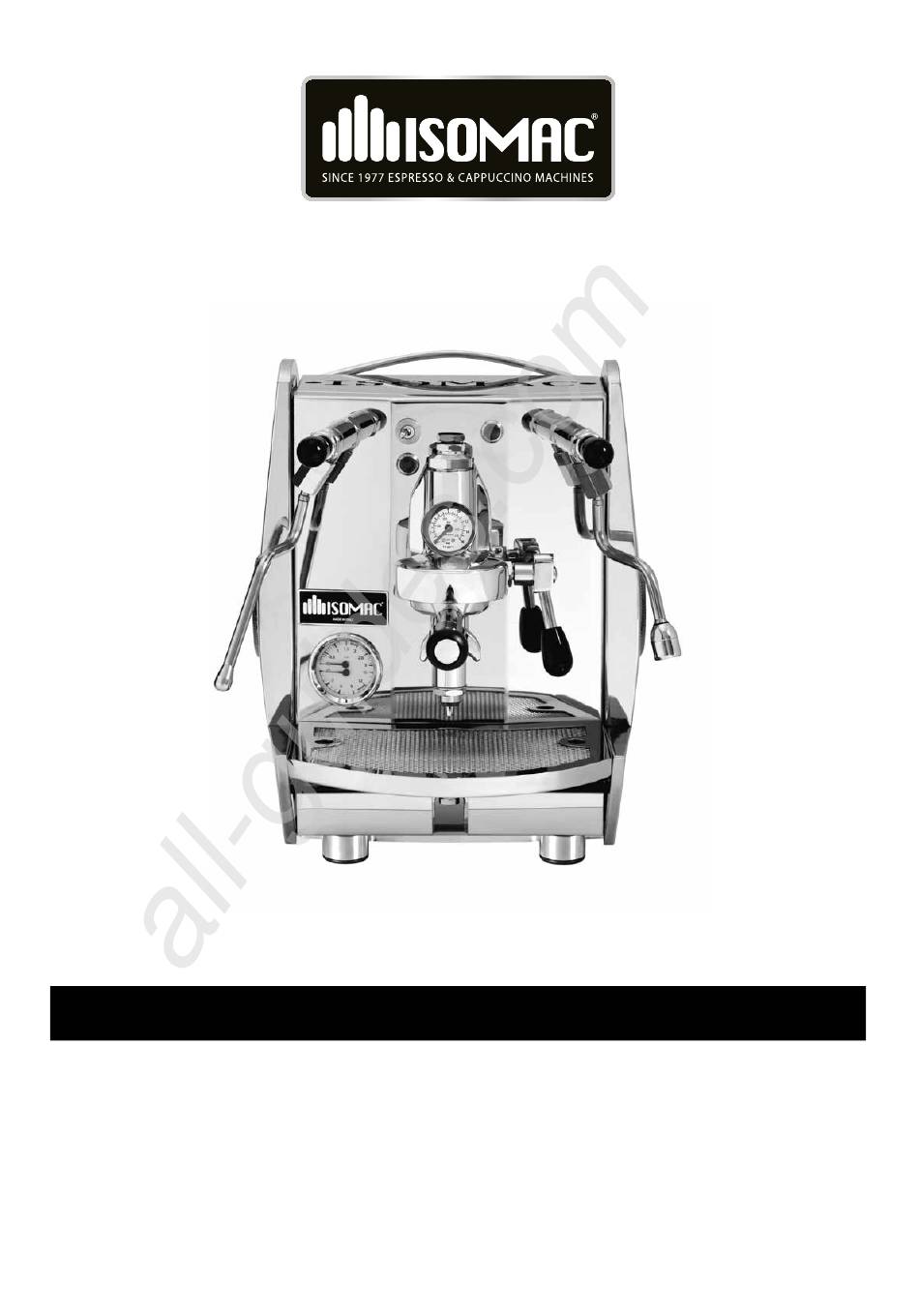

All manuals and user guides at all-guides.com MONDIALE - MONDIALE PID - MILLENNIUM - KIA - ZAFFIRO - TEA - TEA PID MANUALE D’USO E MANUTENZIONE USE AND MAINTENANCE MANUAL BEDIENUNGS- UND WARTUNGSANLEITUNG WWW.ISOMAC.IT...
Seite 2
All manuals and user guides at all-guides.com...
Seite 3
All manuals and user guides at all-guides.com...
All manuals and user guides at all-guides.com Prima della messa in funzione, leggere attentamente Italiano il manuale di istruzioni. Gentile cliente, Before starting the machine, please read carefully the instruction La ringraziamo per aver acquistato un nostro prodotto, costruito manual. secondo le ultime innovazioni tecnologiche.
All manuals and user guides at all-guides.com ISTRUZIONI PER IL TRATTAMENTO A FINE VITA Italiano Questo prodotto è conforme alla Direttiva EU 2002/96/EC. Il simbolo apposto sull’ apparecchiatura o sulla confezione indica che l’ apparecchiatura, alla fine della propria vita utile, non deve essere trattata come un rifiuto domestico generico ma deve essere portata in uno dei centri di raccolta dif- ferenziata per apparecchiature elettriche ed elettroniche approntati dalla Pubblica Amministrazione.
Seite 6
All manuals and user guides at all-guides.com...
All manuals and user guides at all-guides.com INDEX 1 - INTRODUZIONE AL MANUALE ITALIANO 7 – 15 2 - FUNZIONE DELLA MACCHINA ENGLISH 17 – 25 2.1 - DESTINAZIONE D'USO DELLA MACCHINA DEUTSCH 25 – 34 3 - AVVERTENZE DI SICUREZZA 3.1 - USO IMPROPRIO 3.2 - RISCHI RESIDUI 3.3 - ISTRUZIONI SUL CAVO ELETTRICO...
All manuals and user guides at all-guides.com 1 – INTRODUZIONE AL MANUALE tensione di alimentazione specificata nella targhetta dati posta sotto la base della macchina sia quella in uso nel Paese. Il presente manuale di istruzioni è parte integrante della macchina, Collocare la macchina in un luogo sicuro, su una base solida, va letto attentamente e deve essere sempre a disposizione per lontano da fonti di calore e dalla portata dei bambini.
All manuals and user guides at all-guides.com o durante la pulizia. Farla raffreddare prima di inserire o rimuovere zioni domestiche e similari quali: pezzi e prima di procedere alla sua pulizia. – nelle zone per cucinare riservate al personale nei negozi, negli 6 Non utilizzare la macchina con cavo o spina danneggiati o in uffici e in altri ambienti professionali;...
All manuals and user guides at all-guides.com 4 - SCHEMA E CARATTERISTICHE TECNICHE 4 - SCHEMA E CARATTERISTICHE TECNICHE 3 15 MONDIALE 3 15 MONDIALE PID TEA PID 3 15 3 15 MILLENNIUM...
Seite 11
15. Lampada serbatoio 16. Lampada interruttore vapore (ZAFFIRO) 17. Lampada macchina in temperatura (ZAFFIRO) 18. Termopid 19. Kit collegamento a rete idrica (optional) MODELLO MONDIALE – MONDIALE PID MILLENNIUM - KIA TEA – TEA PIDPID ZAFFIRO Tensione di alimen- 120V...
1,1 – 1,3 bar, controllando sul manometro (2) MACCHINA automaticamente durante il periodo di riscaldamento. MONDIALE E MONDIALE PID la pressione caldaia. Le macchine con il regolatore termopid (18), visualizzeranno i Dopo aver acceso la macchina, per il primo caffè, aspettare che la gradi della caldaia stessa, controllando il riscaldamento.
8 e 10 bar. 8 – PRELIEVO ACQUA CALDA MODELLO MONDIALE - KIA A = Posizione del portafiltro chiuso con la macchina nuova Collocare un contenitore sotto la lancia erogazione acqua calda...
All manuals and user guides at all-guides.com re / acqua (24). Al raggiungimento della quantità di acqua deside- 10.2 - PULIZIA CORPO GRUPPO E DOCCETTE rata ruotare in senso orario la manopola del rubietto acqua/vapore Togliere il portafiltro dal corpo gruppo. (8) e premere nuovamente l’interruttore acqua calda (21).
All manuals and user guides at all-guides.com 12 - CAUSE DI MANCATO FUNZIONAMENTO OD ANOMALIE PROBLEMI CAUSA SOLUZIONE La macchina non funziona e 1. Manca la corrente 1. Ripristinare la corrente la spia dell’interruttore non si 2. La spina del cavo di alimentazione 2.
Seite 16
All manuals and user guides at all-guides.com...
Seite 17
All manuals and user guides at all-guides.com INDICE 1 – INTRODUCTION ITALIANO 7 – 15 ENGLISH 17 – 25 2 - MACHINE FUNCTION 2.1 – MACHINE USE DEUTSCH 25 – 34 3 - SAFETY WARNINGS 3.1 - MISUSE 3.2 - RESIDUAL RISKS 3.3 - INSTRUCTION FOR THE POWER SUPPLY CORD 3.4 - IMPORTANT SAFEGUARDS 4 - TECHNICAL DIAGRAM AND SPECIFICATIONS...
All manuals and user guides at all-guides.com 1 – INTRODUCTION Put the machine in a safe place, on a solid base, away from heat sources and out of the reach of children. This instruction manual is an integral part of the machine, it should Before connecting and disconnecting the machine, make sure that be read carefully and should always be available for consultation;...
All manuals and user guides at all-guides.com 6 Do not operate any appliance with a damaged cord or plug or reserved to shops staff, offices and other professional rooms; farms, hotels, motels and other residential places and also bed and bre- in the event of appliance faults or damages, Return appliance to akfast.
All manuals and user guides at all-guides.com 4 - SCHEMA E CARATTERISTICHE TECNICHE 3 15 MONDIALE 3 15 MONDIALE PID TEA PID 3 15 3 15 MILLENNIUM...
Seite 21
33. Manometer BPPC (Brewing Pressure Profiling Control) 15. Water tank lamp 16. Steam switch lamp (ZAFFIRO) 17. Temperature lamp (ZAFFIRO) 18. Termopid 19. Water main kit connection (optional) MODELS MONDIALE – MONDIALE PID MILLENNIUM - KIA TEA – TEA PIDPID ZAFFIRO Voltage 120V 230-240V...
This pressure switch is adjusted during the final testing of the (2) MONDIALE E MONDIALE PID. machine on a 1.1÷1.3 bar value; however, if the specific case requires a different operating pressure, the pressure switch ope-...
8 and 10 Bar. 8 - HOT WATER DELIVERY MONDIALE - KIA MODELS A = Position of the closed filter-holder when the machine is new. Put a tank under the hot water jet (9), press the jointed lever (6)
All manuals and user guides at all-guides.com 9 - PREPARATION OF OTHER DRINKS minute, to allow the removal of coffee and scale deposits. Remove the seal and start the delivery system several times to rinse the unit. 9.1 - MILK, CAPPUCCINO AND OTHER HOT DRINKS Deliver a few serving of coffees so as to eliminate any unpleasant taste from the jets and from the brewing unit.
All manuals and user guides at all-guides.com 12 - TROUBLESHOOTING PROBLEM CAUSE SOLUTION The machine 1. No electricity 1. Restore electrical power does not work 2. The main cable is not properly plug- 2. Plug the main cable in correctly and the ON light 3.
Seite 26
All manuals and user guides at all-guides.com...
Seite 27
All manuals and user guides at all-guides.com INHALT 1 – EINFÜHRUNG IN DIE BEDIENUNGSANLEITUNG ITALIANO 7 – 15 ENGLISH 17 – 25 2 - FUNKTION DER MASCHINE 2.1 - VERWENDUNGSZWECK DER MASCHINE DEUTSCH 27 – 35 3 - SICHERHEITSHINWEISE 3.1 - UNSACHGEMÄSSER GEBRAUCH 3.2 - RESTGEFAHREN 3.3 - BETRIEBSANLEITUNGEN ZUM NETZKABEL 3.4 - WICHTIGE VORSICHTSMASSNAHMEN...
All manuals and user guides at all-guides.com 1 – EINFÜHRUNG IN DIE BEDIENUNGSANLEITUNG wobei die Maschine möglichst nicht in Räumen gebraucht wer- den sollte, in denen Wasserstrahlen verwendet werden oder in Außenumgebungen, die atmosphärischen Einflüssen (Sonne, Die vorliegende Bedienungsanleitung ist ergänzender Bestandteil Regen, etc.) ausgesetzt sind.
All manuals and user guides at all-guides.com benutzt wird. ne Spannung mit der Ihres Netzanschlussen ubereinstimmt. 2. Keine heissen Flachen beruhren. Vermeidung Kalkablagerungen kohlesaurefreies Mineralwasser verwenden. 3. Netzkabel, Stecker oder den Maschinenkorper nicht in Wasser Das Gerat nicht in Wasser tauchen. oder andere Flussigkeit tauchen, um Brand, electische Schlage oder Unfalle zu vermeiden.
All manuals and user guides at all-guides.com 4 - SCHALTBILD UND TECHNISCHE EIGENSCHAFTEN 3 15 MONDIALE 3 15 MONDIALE PID TEA PID 3 15 3 15 MILLENNIUM...
Seite 31
15. Lampe: Wassertank 16. Lampe: Schalter fr Dampf (ZAFFIRO) 17. Leuchtanzeige: die Maschine ist bereit 18. Termopid 19. Kit Anschluss an das Wassernetz (Optional) MODELL MONDIALE – MONDIALE PID MILLENNIUM - KIA TEA – TEA PIDPID ZAFFIRO Betriebspan- 120V 230-240V...
Heizkessels auf dem Manometer (5), (2) ren Betriebsdruck erfordern, kann man den Wirkungsbereich des Druckschalters verändern, indem man die Regulierungsschraube MODELL MONDIALE E MONDIALE PID. (U) betätigt: wird der Druck verringert, erhält man eine Verringerung der Temperatur; umgekehrt steigt die Wassertemperatur, wenn der...
Espressoauslauf durch Mikroschalter geregelt . Der Espresso wird entnommen, indem man den auf dem Bedienungsfeld angebrachten Hebel (20) Der Brühgruppen – MODELL MONDIALE - KIA Steuerung betätig; Bewegen Sie den Hebel nach oben aktiviert der Stellen Sie einen Behälter unter die Heißwasserdüse (9), den mit Ihm verbundene Mikroschalter die Elektropumpe, welche das Drehknopf für Heißwasser (6) gegen den Uhrzeigersinn drehen, jetzt...
All manuals and user guides at all-guides.com 9 - ZUBEREITUNG ANDERER GETRÄNKE Unterbrechen Sie das Auslaufen nach etwa 4 bis 5 Sekunden. Betätigen und unterbrechen Sie abwechselnd etwa eine Minute lang 9.1 - MILCH, CAPPUCCINO UND ANDERE WARME GETRÄNKE das Auslaufen, so dass die Verkrustungen von Kaffee und Kalkstein entfernt werden können.
All manuals and user guides at all-guides.com 12 - STÖRUNGEN UND STÖRUNGSBEHEBUNG STÖRUNG URSACHE MASSNAHME ZUR BEHEBUNG Maschine schaltet sich nicht 1. Kein Netzstrom. 1. Kontrollieren Sie das Stromnetz. ein, und die Kontrollleuchte des 2. Der Stecker des Netzkabels ist nicht 2.
Seite 36
All manuals and user guides at all-guides.com ESPRESSO GROUP S.r.l. Via Montenero, 3 - San Giuliano Milanese (MI) - Italy Telefono +39 02 98217.1 - Fax +39 02 9821786...
