Setup and Quick Reference Guide
All manuals and user guides at all-guides.com
Grasp the top piece of the cable cover and align the two tabs with the
4
two slots in the computer's back panel.
Insert the tabs into the slots and slide the piece toward the diagnostic
5
lights (see the illustration).
Install a security device in the security cable slot (optional).
6

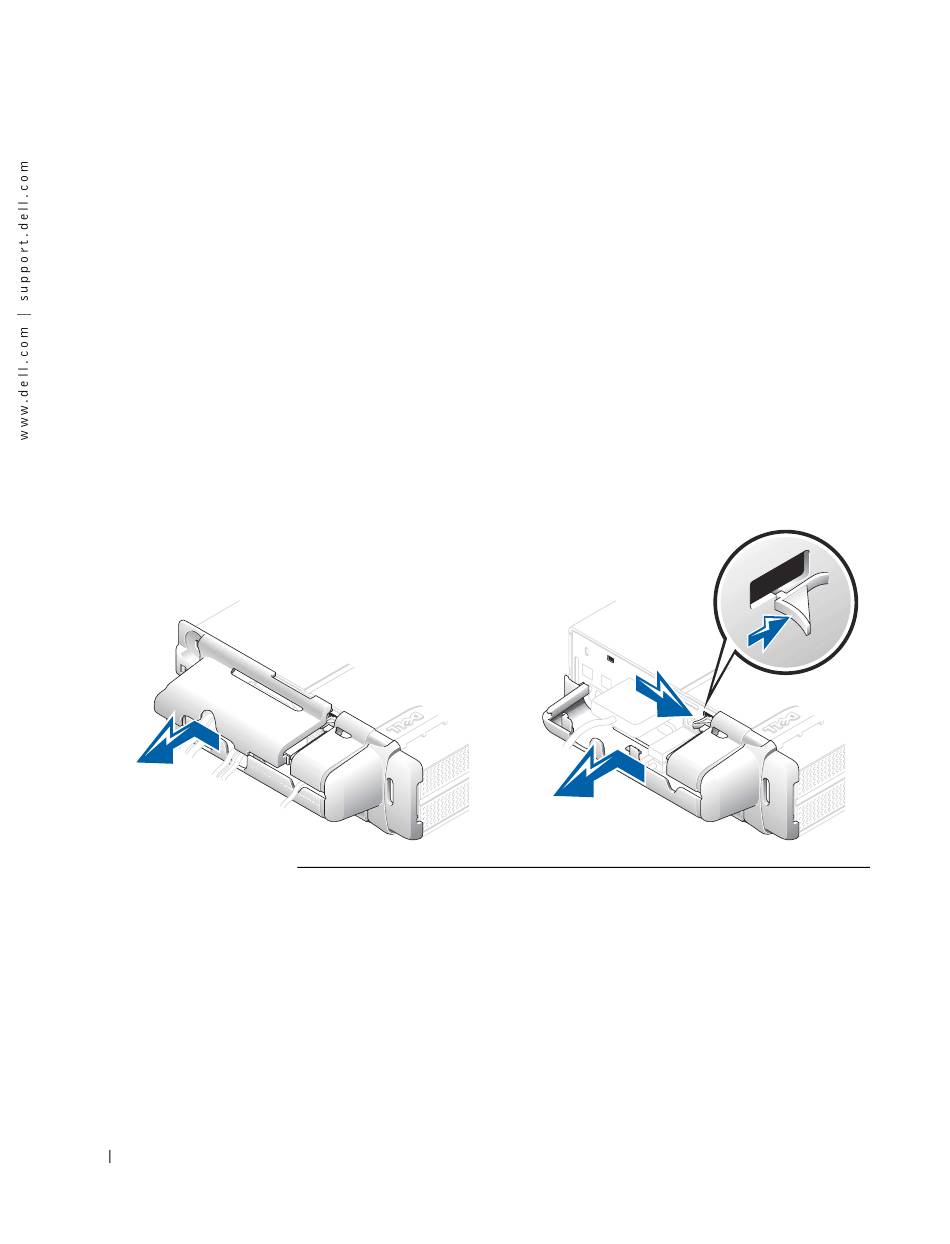

To remove the cable cover, remove the device installed in the security cable
slot (optional).
Grasp the top piece of the cable cover and slide it to the left until it
1
stops, and then lift it up and away.
To remove the bottom piece of the cable cover, while pressing the
2
lever, slide the piece to the left until it stops, and then lift it up and
away.
