Fitting
7
Fitting

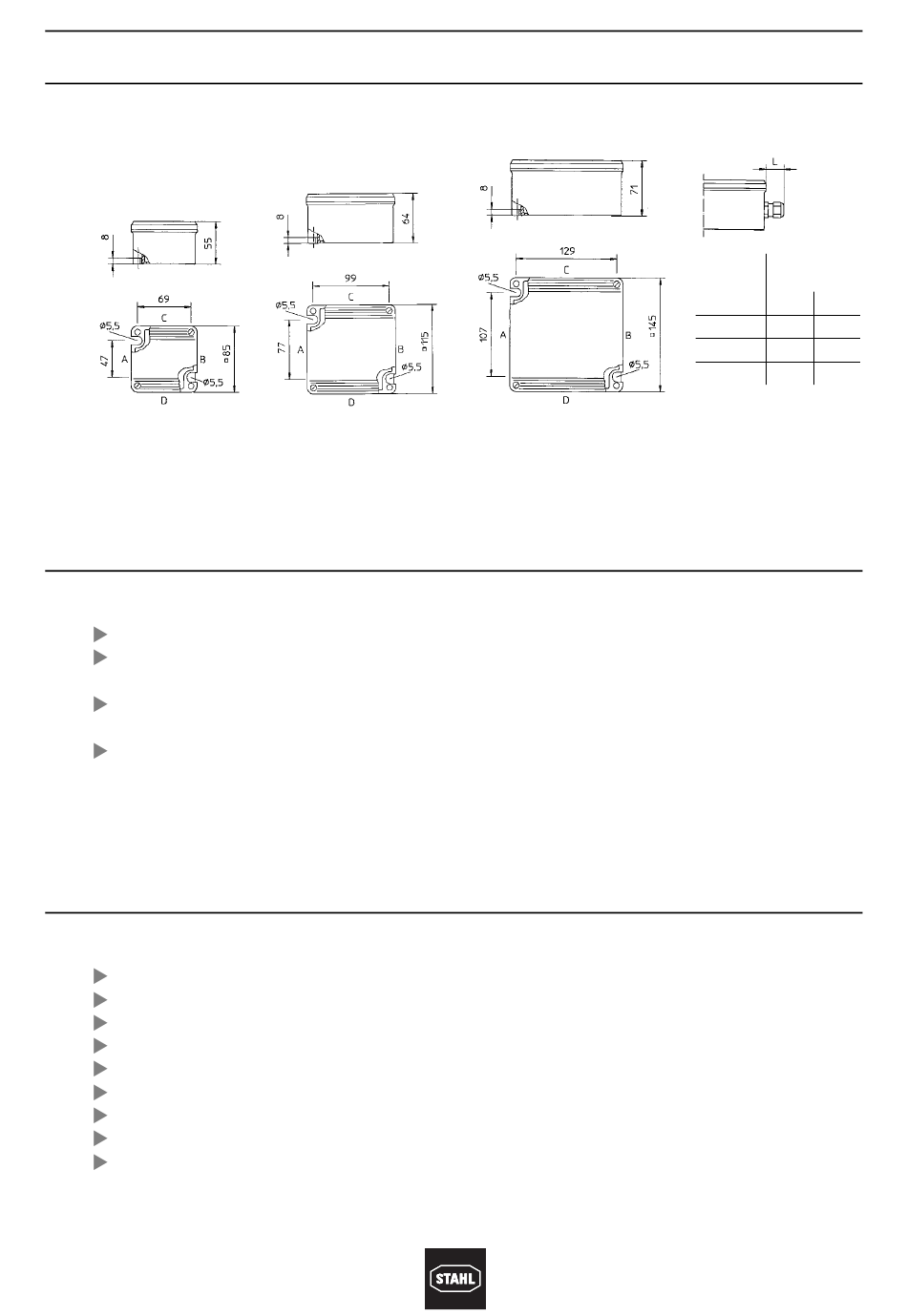

Dimension drawings (all dimensions in mm) - subject to alterations
04466E00
8118/.1.
When explosion-protected equipment is exposed to the weather, it is advisable to provide
a protective cover or wall.
8
Installation
Mains connection
The conductors must be carefully connected.
The conductor insulation must reach to the terminal. The conductor itself must not be
damaged (nicked) when removing the insulation.
Ensure that the maximum permissible conductor temperatures are not exceeded by
suitable selection of cables and means of running them.
Please also refer to the terminal details in the technical data.
Earth connection:
The earth connection must be made in all circumstances.
9
Commissioning
Before commissioning the device, ensure that
it has been correctly installed
it is not damaged
it contains no foreign bodies
the connection area is clean
the connection is correctly made
the cables have been correctly brought in
all screws and nuts are fully tightened
the cable glands are securely tightened
unused cable glands are sealed with plugs certified to Directive 94/9/EC, and unused
holes are sealed by stopping plugs certified to Directive 94/9/EC.
6
Junction box
8118
04467E00
8118/.2.
04468E00
8118/.3.
04469E00
Nominal
L [mm]
size
min.
max.
M20
25
31
M25
27
33
M32
32
39
Additional dimension for
cable entries Series 8161
8118605300
S-BA-8118-02-en-15/06/2007
