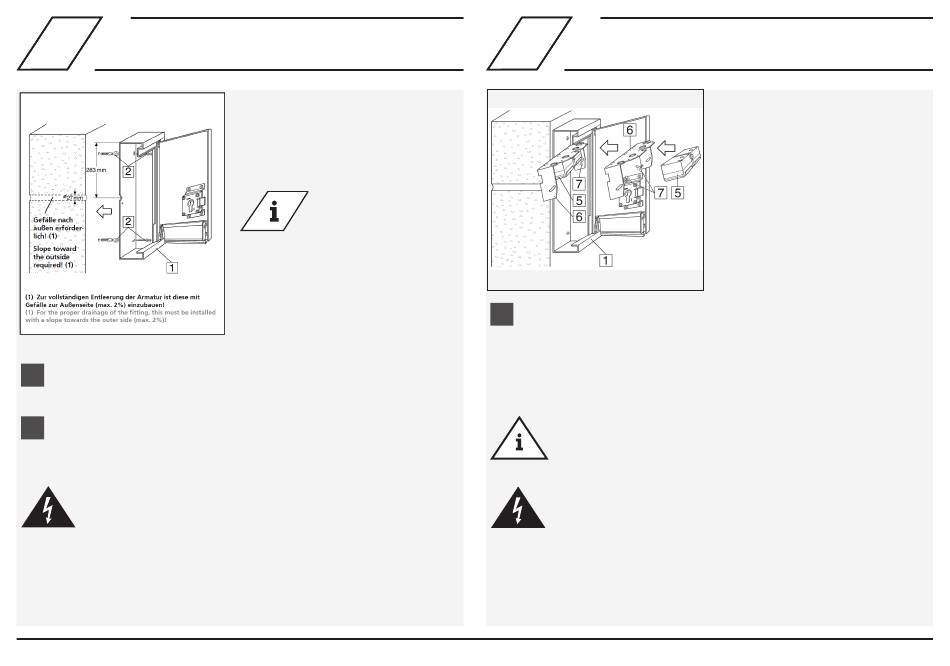

Installation of surface-mounted wall
1
cabinet
Align the surface-mounted wall cabinet on the outer wall, and
1.
mark and drill the four holes (Ø 8 mm) and the hole for the frost-
free outer fitting (Ø 27 mm).
Attach the cabinet (1) to the outer wall using the four spacers
2.
and attachment screws (2).
Danger!
Earthing
Connect the earthing with the intended screws at the up-
per part of the wall cabinet and the door (All metallic parts
are earthed by this). Metallic parts of the building, to which
the wall cabinet belongs, have to be earthed.
The cross section of the wire is half the cross section of the
main earth wire of the building, or at least 6 mm².
Provide the power supply
- Note FI fuse:
Nominal fault current ≤ 0.03 A
and Connection current ≤ 32 V
- Protection type IP 44
Info!
Following figures are delivered with
protection type IP 55:
21302015CH I 21303015CH
21304015CH
2
Installation of socket combination
Screw the socket combination (5) (already wired) onto the moun-
1.
ting plate (6), connect in the surface-mounted wall cabinet (1)
and attach to the cabinet wall using the wing-screws (7)
(20° swivel).
Note!
Carry out a functional test!
Danger!
Electrical work must be carried out only by authorised
specialist personnel!
