Dimensions of face plates

Pic. 8:
Electric strike 351M80 Face plates

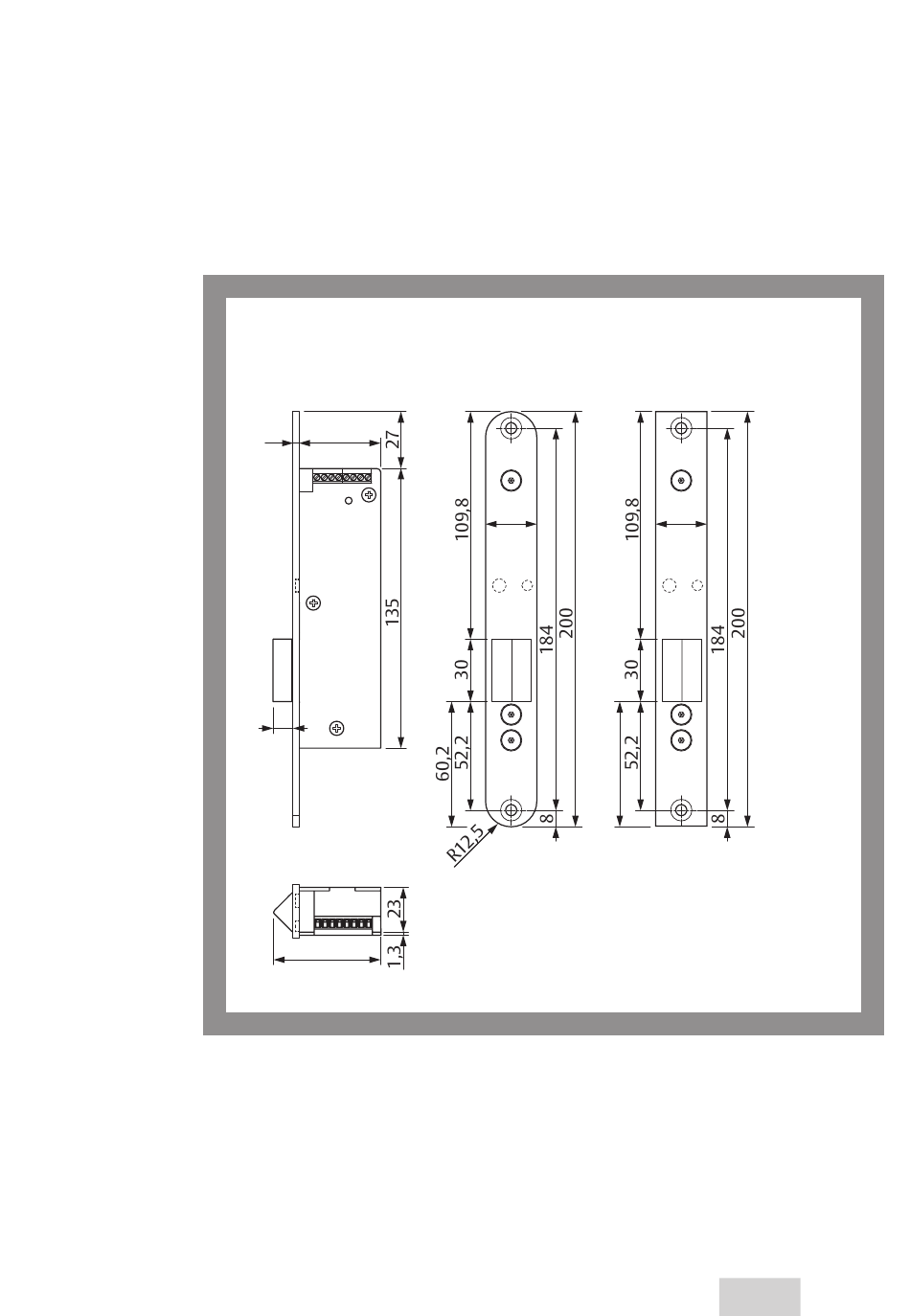

Technical drawing
with mounting
dimensions of
elektric bolt,
and face plates
3 39
25 24
10
52
EN
Technical data 37
