NOTE!
This appliance can be used by
children aged from 8 years and
above and persons with redu-
ced physical, sensory or mental
capabilities or lack of expe-
rience and knowledge if they
have been given supervision
or instruction concerning use
of the appliance in a safe way
and understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
Rights to make any design or
technical modifications are
reserved.
©NIBE 2013.

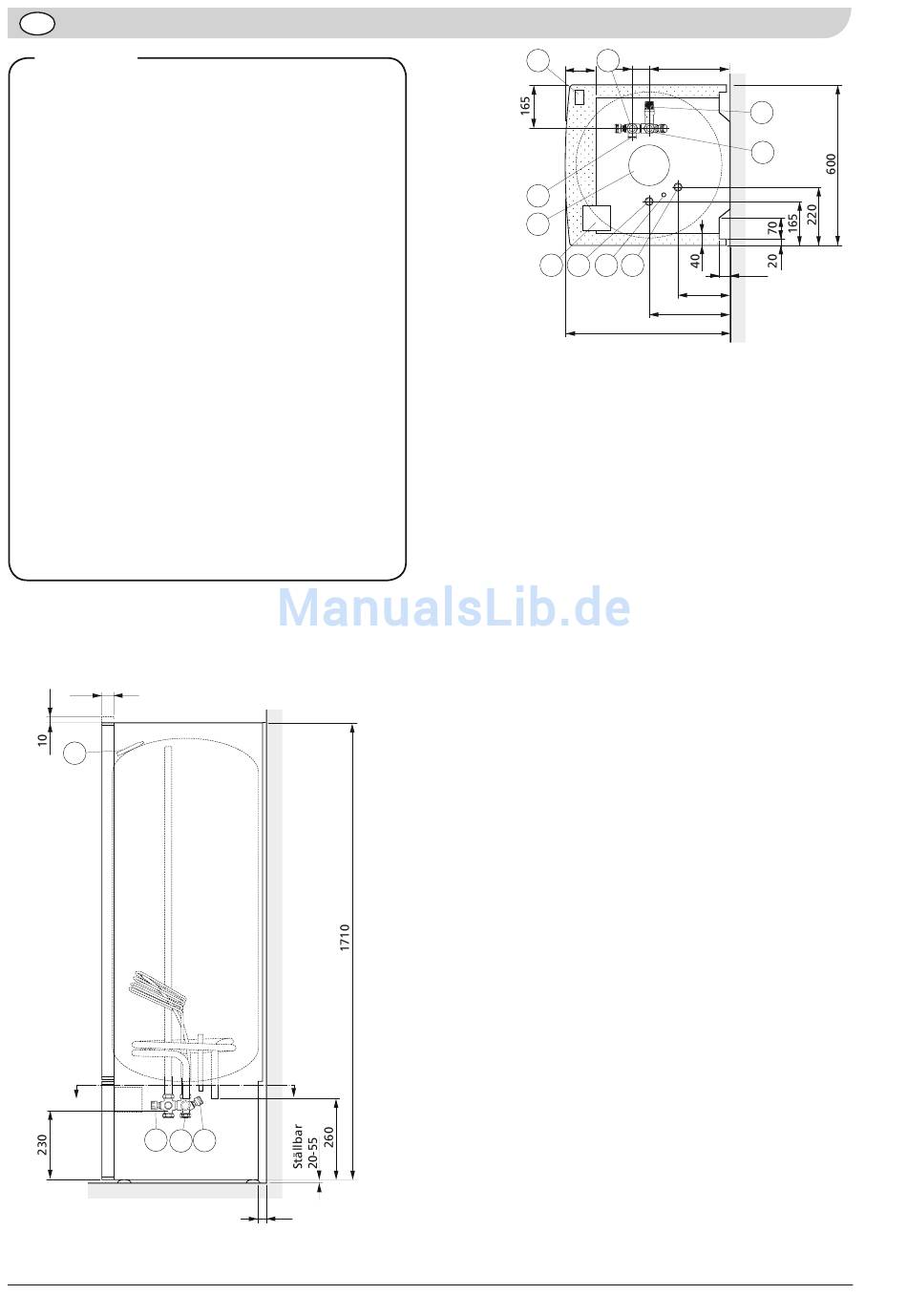

Assembly
Unscrew the water heater from the wooden pallet. The
water heater can be raised by screwing out the length
of the feet.
35
111a
25 83
The lower section of the side plates can be removed
during installation. This also facilitates access from the
103 42
55
115
sides.
4
22
35
295
23
103
21
9
3
NOTE!
Pipes must not be run in the area indicated by dots.

Pipe installation

The water heater is only designed for upright installa-
tion.
The hot water heater is equipped with compression ring
couplings for copper or plastic pipes. Internal support
bushes should be fitted when a plastic pipe or annea-
led copper pipe is used. The mixing valve (25) is set
for the desired hot water temperature. Turn the mixer
knob anti-clockwise to increase hot water temperature.
Setting range 40 – 65°C.
The solar panel's charge automatic must be limited to a
max temperature of 90 °C. This is so as not to risk
a higher temperature than 95 °C in the water heater.
An overflow pipe should be routed from the safety valve
to an appropriate drain. The size of the overflow pipe
must be the same as on the safety valve (Ø 15 mm). The
overflow pipe must be routed downwards to prevent
water pockets and to be frost proof.
The outlet of the overflow pipe must be visible.
Equipment
3 Connection area circuit breaker:
1 Terminal block,
2 Isolator switch
9 Connection area thermostat/immersion heater:
5 Thermostat/temperature limiter.
The thermostat is adjustable between
60 – 80 °C.
6 Immersion heater 3 kW (HAR 14 – 112)
21 Vacuum valve
22 Shutoff/non-return valve
23 Safety/drainage valve
25 Mixer valve
41 Cold water inlet.
Compression ring coupling Ø 22 mm
42 Mixed water.
Compression ring coupling Ø 22 mm
83 Overflow pipe connection for safety valve and
draining. Compression ring coupling Ø 15 mm
103 Serial number plate
110 a Connection, solar coil flow line, Ø 22 mm
110b Connection, solar coil return Ø 22 mm
111 a Sensor connection thermometer Ø 10 mm (int)
111b Sensor connection solar coil Ø 10 mm (int)
COMPACT-SOL
42
55 295
115
110b 111b 110a
200
310
615
35
23
41
35
