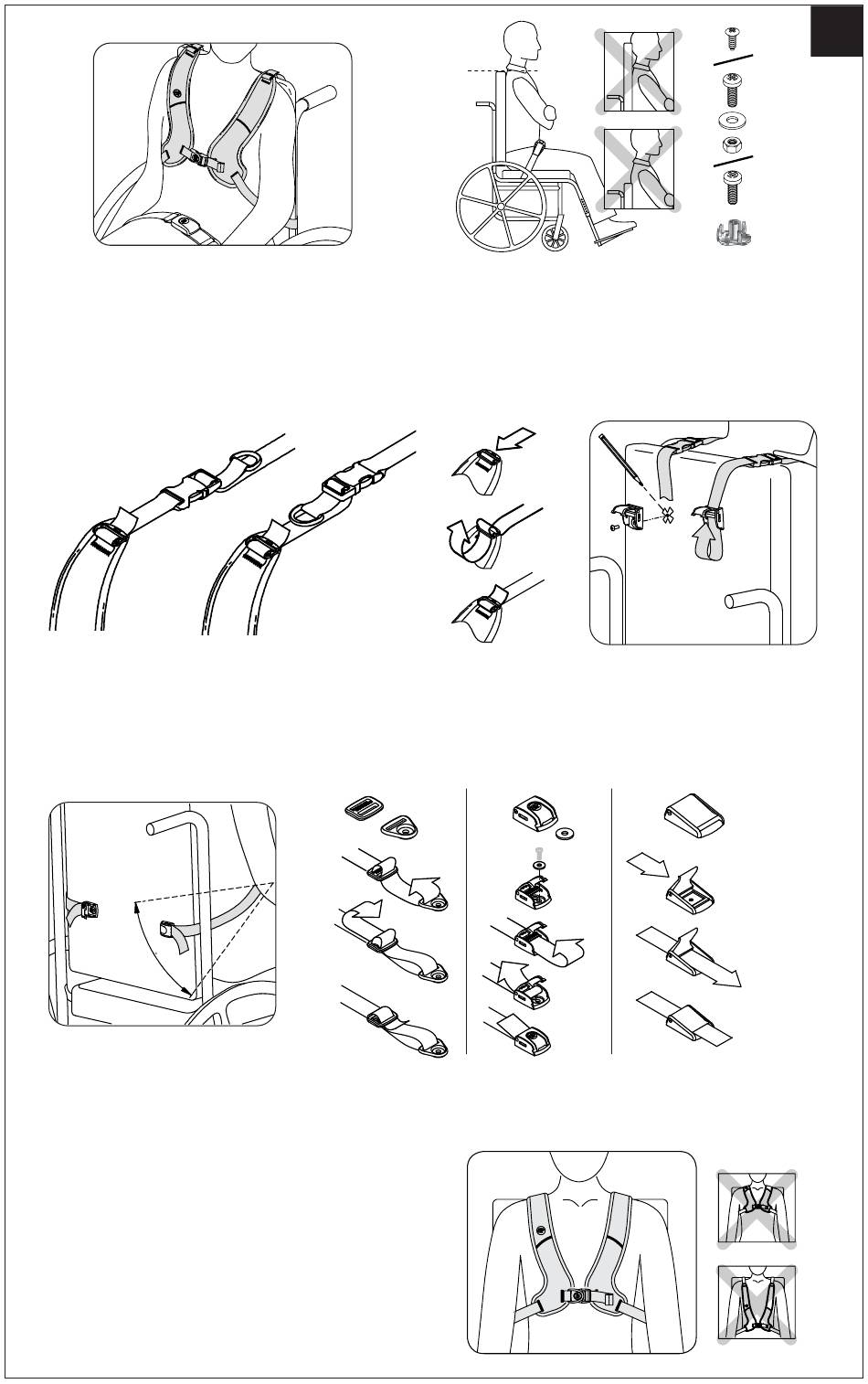

INSTALLATION
Seat user in wheelchair and establish correct posture
with Pelvic Support Belt. Place PivotFit shoulder
harness pad on chest with upper straps over backrest.
Position straps between neck and shoulder joint.
Sternum strap should never rise above user's sternum.
Rear-pull
TOP STRAPS
1. Determine desired adjustment pull direction and attach top strap to harness.
2. Adjust each shoulder strap for a comfortable fit, according to the user's shoulder width and sitting position.
Mark backrest for mounting screws.
3. Attach to backrest using Bodypoint end-fittings and suitable fasteners.
LOWER STRAPS
Wrap lower straps around backrest without obstructing other devices on wheelchair. Mount end-fittings
between the lowest rib and the seat. Attach using suitable fasteners.
SAFETY CHECK
Have user lean forward and from side to side to check fit.
Check for:
1. Normal operation of buckles and adjustment straps
2. Comfort – If rubbing neck, relocate upper straps.
3. Position – If too high or too low adjust lower straps.
4. Interference with other devices – Relocate straps as nec-
essary to clear seat tilting mechanism, armrests, accessory
pads, or feeding tubes.
Front-pull
INSTALLATION REQUIREMENTS
1. Wheelchair with a solid backrest or strap guides
set approximately at shoulder height (adjust up/
down for pressure distribution).
2. Mounting screws with a minimum pullout strength
of 90kg (200lbs) (Not included in package).
en
Ø5-6mm
(3/16-1/4")
Cam Buckle
(optional)
Suitable
for users up
to75kg
