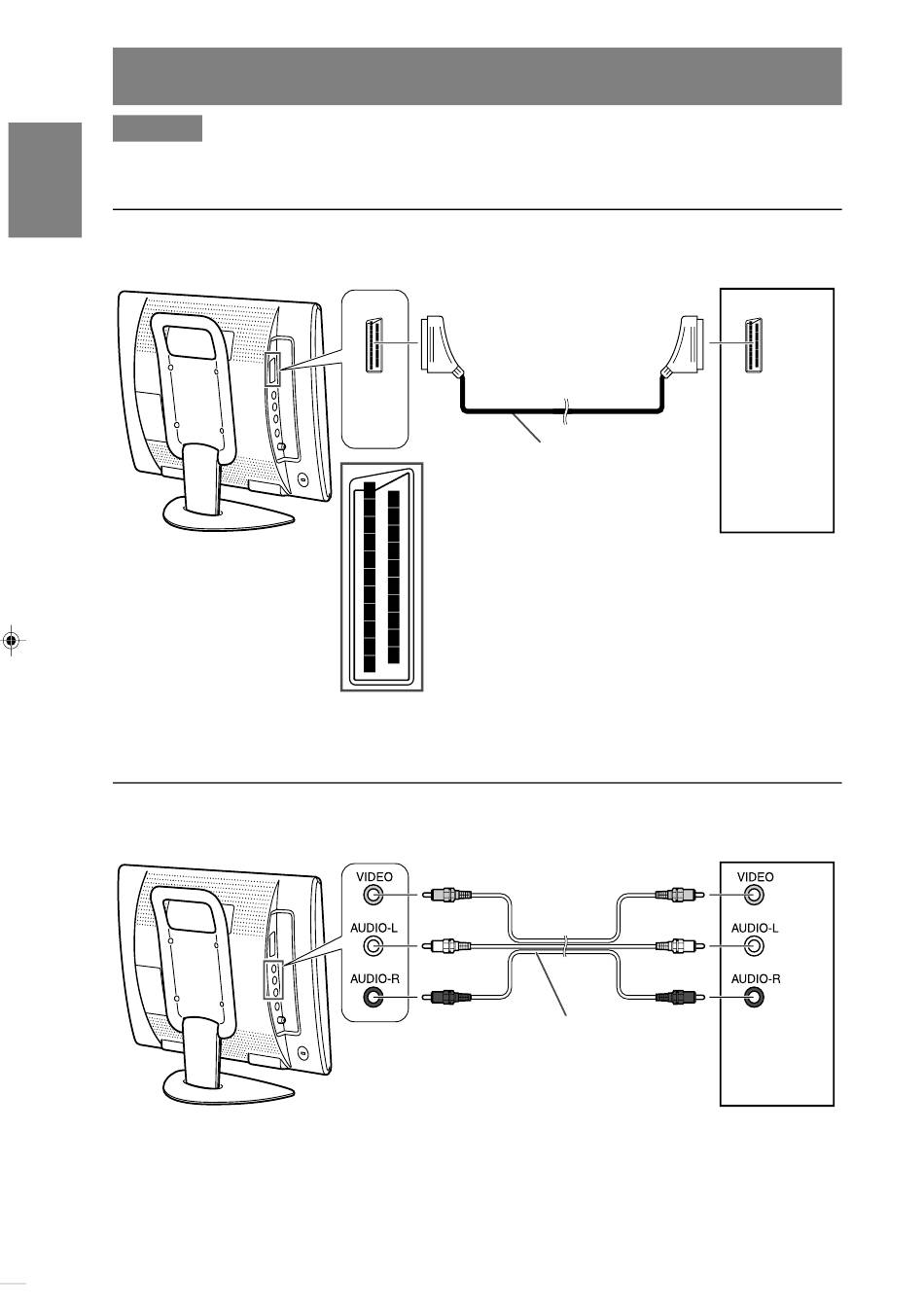

Connecting the monitor to AV equipment

CAUTION!
- Ensure that the monitor and all the equipment you are connecting to it are switched off before you
begin.

AV equipment with 21-pin Euro-SCART (RGB) terminals

Left side of the monitor

AV equipment with video output terminals

Left side of the monitor
Note:
- When you are using the video input terminal, do not connect the cable to the S-video input terminal.
All manuals and user guides at all-guides.com
AV-IN1
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
AV-IN2
(Yellow)
(White)
(Red)
RCA pin cable (commercially available)
E12
21-pin Euro-SCART cable
(commercially available)
(Yellow)
(White)
Decoder etc.
VCR etc.
(Red)
