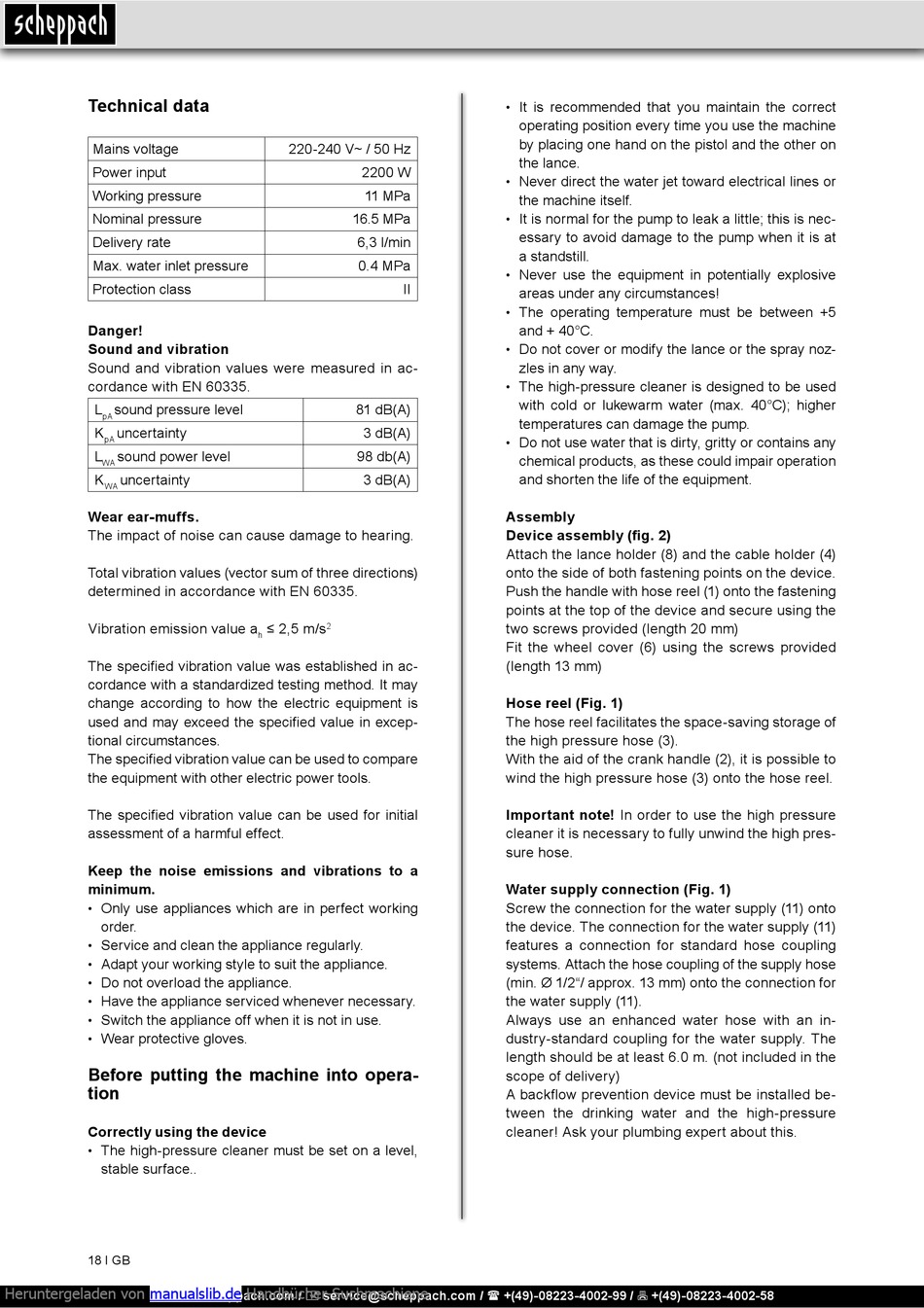

Technical data

Mains voltage
Power input
Working pressure
Nominal pressure
Delivery rate
Max. water inlet pressure
Protection class
Danger!
Sound and vibration
Sound and vibration values were measured in ac-
cordance with EN 60335.
L sound pressure level
pA
K uncertainty
pA
L sound power level
WA
K uncertainty
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60335.
Vibration emission value a
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances.
The specified vibration value can be used to compare
the equipment with other electric power tools.
The specified vibration value can be used for initial
assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
Only use appliances which are in perfect working
•
order.
Service and clean the appliance regularly.
•
Adapt your working style to suit the appliance.
•
Do not overload the appliance.
•
• Have the appliance serviced whenever necessary.
Switch the appliance off when it is not in use.
•
Wear protective gloves.
•
Before putting the machine into opera-
tion
Correctly using the device
The high-pressure cleaner must be set on a level,
•
stable surface..
18 І GB
