Obstacle detection operation
When an obstacle is detected during the open cycle, the door will stop.
When an obstacle is detected during the close cycle, the door will stop and then reopen.
Once an obstacle has been detected, the light will flash for 30 seconds.
Light operation
The light will come on each time the motor drive unit is operated. The light will go out one
minute a er the door stops moving.
Repetitive use that causes the light to be continually on may result in a thermal cut out (this
will automatically turn the light off).

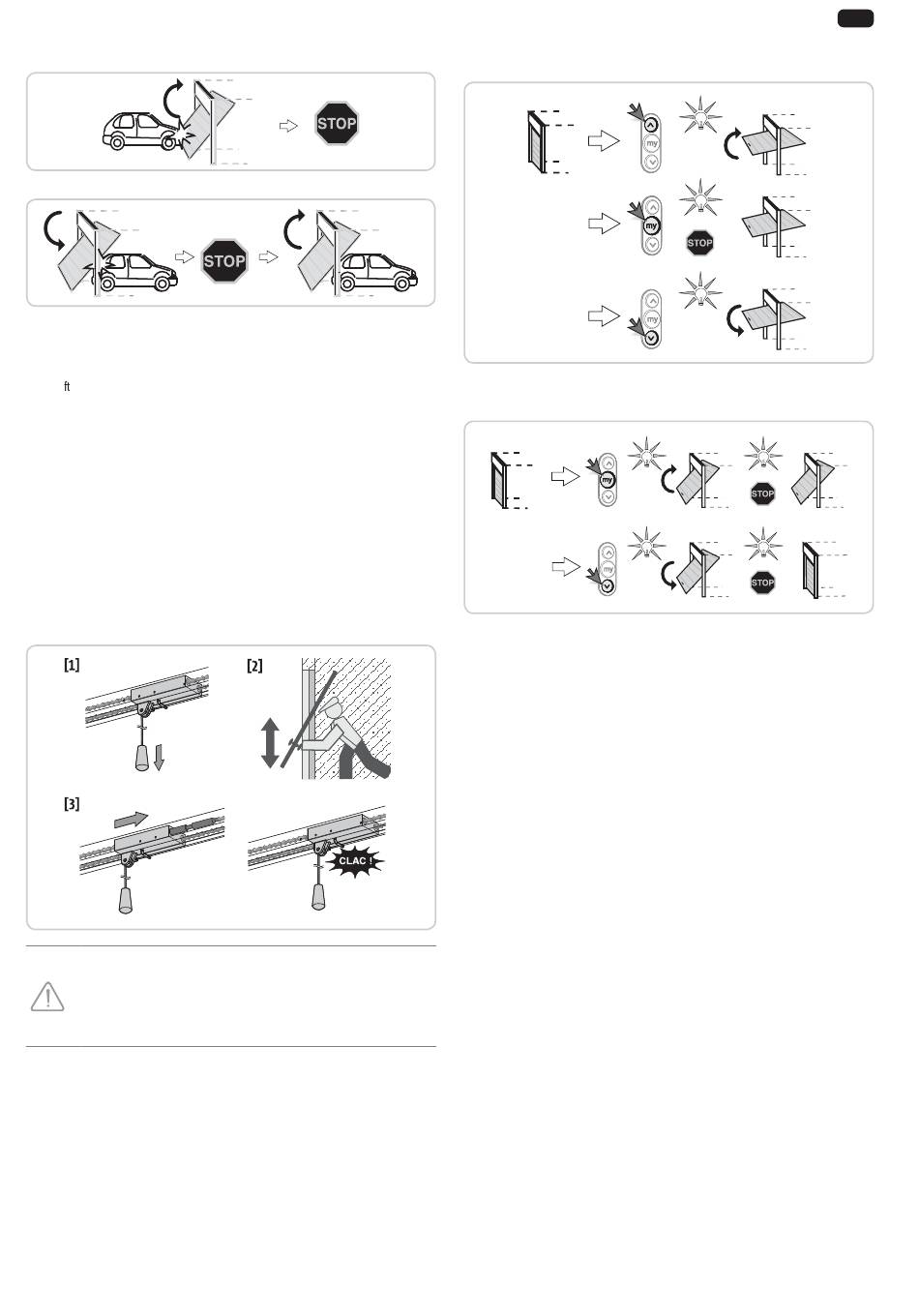

Manual release cord operation
Dexxo Optimo RTS is fitted with a manual release mechanism so that you can move the door
manually should a power failure occur, for example. The manual release mechanism should be
easily accessible and located no more than 1.80 metres above floor level.
[1]. Disengaging the motor drive mechanism
Pull on the manual release cord until the door drive mechanism is disengaged.
[2]. Manually moving the door
This is possible as long as the door drive mechanism is disengaged.
[3]. Reengaging the motor drive mechanism
Move the door manually until the drive mechanism comes to reengage itself into the
transmission rail.
When disengaging the motor drive mechanism, use caution for a badly
balanced door may cause sudden door movement that may be dangerous.
Only use the cord to disengage the motor drive mechanism. Never use the
cord to move the door manually.
Always reengage the motor drive mechanism before sending another
command to the motor drive unit.

4.2 Special operation

Depending on the peripherals installed and the operating options set by your installer, the
motorisation may perform the following special operations:
Copyright © 2017 Somfy SAS. All rights reserved
Operation in «Total opening» mode with a Telis type remote
control or similar
Operation in «Partial opening» mode with a Telis type remote
control or similar
Safety photoelectric cell operation
An obstacle detected between the cells will prevent the door from closing.
The door will stop and then reopen when an obstacle is detected during the close cycle.
The light will flash for 30 seconds during this process.
Pedestrian door safety function
Opening a pedestrian door within the garage door will prevent the door from moving.
The light will flash for 30 seconds during this process.
Flashing orange light
Opening a pedestrian door within the garage door will prevent the door from moving.
The light will flash for30 seconds during this process.
Working from the back-up battery - Ref.9001001
If a back-up battery is installed, the Dexxo Optimo RTS motor will operate when a power cut
occurs.
The following conditions apply to operation:
- Door speed is reduced.
- The light will not come on.
- The safety devices are disabled.
Battery specifications:
- Endurance: The battery will last for 24 hours with a maximum of 5 to 10 operating cycles
depending on the weight of the door.
- Recharging time: 48 hours.
- Service life prior to replacement: approx. three years.
To ensure optimum battery life, we recommend that the power to the motor is switched off and
the door is operated for a number of cycles using
battery power (three times a year).
